hydraulic edible walnut perilla seed almond peanut sesame oil making machine

Product Details

The processing capacity ranges from 8kg to 20kg per batch.

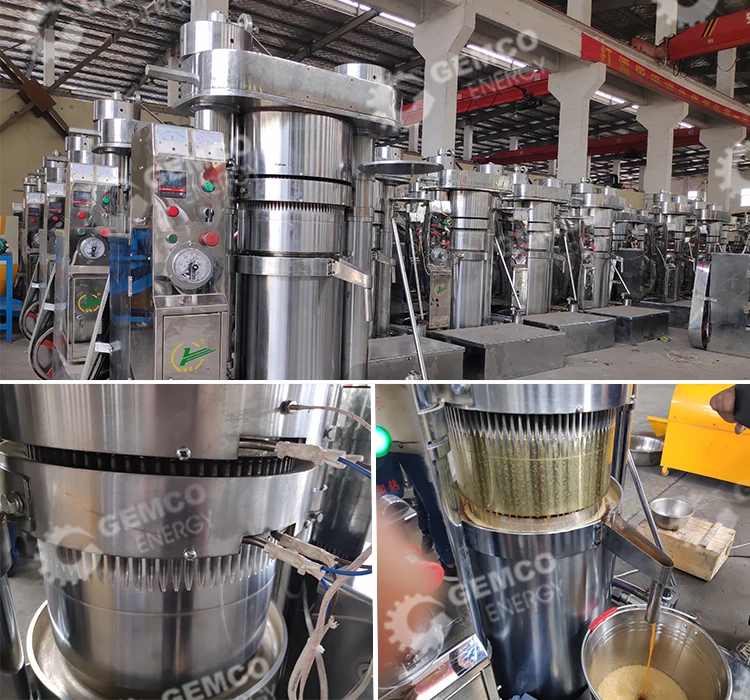

Structure Introduction of sesame oil making machine

Main Body: It is the main parts of the almond oil making machine, composed of bottom plate, pillar, upper panel, cylinder assembly, oil recieving tray, nut and other parts.

Hydraulic Transmission System: This is the main power source of high oil rate. It is composed of reducer, worm, gear pump, high-pressure pump, overflow valve, manual control valve, cylinder assembly, pipeline joint and other parts. This machine adopts advanced three plunger pump station, featured of low speed, high oil pressure, high temperature resistance when compared with two plunger pump.

Electric Control Part: It is composed of motor, voltmeter, temperature control and regulation meter, pressure gauge, power supply insurance and other components.

Click Now for Catalogs & Factory Price!

sesame oil making machine Vs Screw Oil Press

For cooking oil manufacturers, screw press is well-known for its wide application (suitable for processing almost all kinds of oilseeds). While almond oil making machine is specially designed for processing high value oils such as almond oil, walnut oil, cold pressed edible oil, etc. Many starters of edible oil production business may have the doubt that buying a screw oil press can do all the work, why do most processers buy hydraulic press even after they own a screw pressThe reasons are listed below:

Screw oil press is not suitable for mini scale production.
The feeding amount of screw oil press must be more than 50kg each time. For smaller amount production, the earn cannot even cover the processing cost and material loss. While sesame oil making machine has no such problem. You can process 1-50kg of raw materials per batch by simply one press button. Besides, the energy consumption can almost be ignored.

High Oil Yield
Peanut oil or sesame oil production for example, the oil rate is 2%-3% higher than screw oil press.Therefore, seeing these you should know why screw oil press cannot replace hydraulic oil press. If you are interested to get detailed price list and customized cold oil extraction process, or need any guide on peanut oil making machine, almond oil making machine or so, don’t hesitate to contact us!

Advantages of HongDe almond oil making machine

Produce High-quality Health & Care Oil / Edible Oil: It is designed for manufacturing high quality edible oil and health care oil, such as sesame oil (toasted sesame oil and cold press sesame oil), walnut oil, pine-seed oil, perilla seed oil, peanut oil, almond oil etc.
100% Physical Oil Pressing Process: Zero damage to the nutrient component of final oil and oil cakes.
High Return on Investment: Due to good market recognition of pressed oil, it is generally able to recover costs within half a year.
Based on Hydraulic Pressing System: Low motor power (single phase electricity is also acceptable), less power consumption, low maintenance cost.
Mechanical and Electrical Integration Design: Simple operation, one person can operate more than one equipment at the same time.
Beautiful Appearance: The host part of hydraulic oil machine adopts hard chromium plating process; uniform color, never fade.

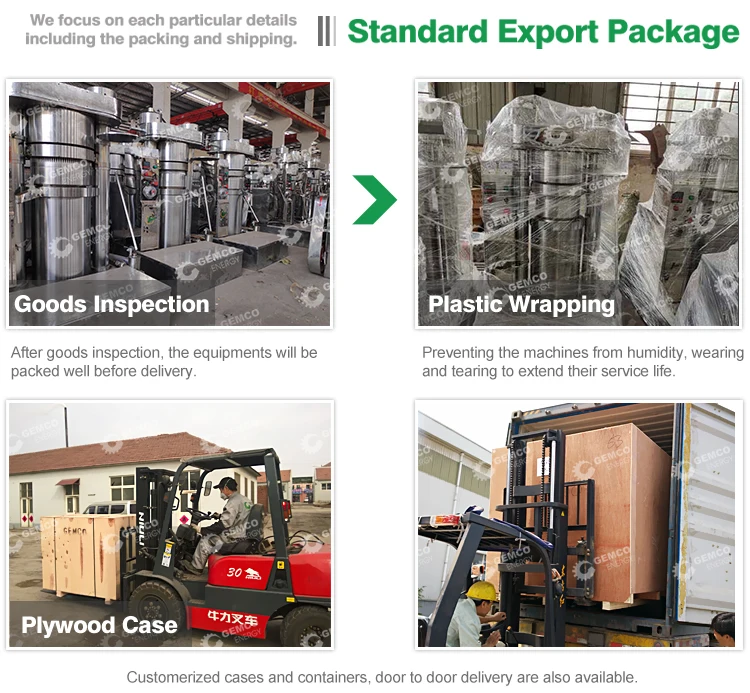

Packing of almond oil making machine

Why Choose HongDe energy machinery company

Anyang Hongde Energy Machinery Co.Ltd possesses advances machine manufacturing equipment, solid exploitation strength and perfect after sale service. Hongde is the national professional manufacturer in researching, developing, manufacturing, installing, and debugging for pellet mills and oil machines. The pellet mill has the features of reasonable designing, reliable quality, simple structure, easy operation, small volume, small occupation, and energy saving, etc. Hongde products are sold well at home and abroad, and the products are sold to over 100 countries and zones in the world, such as Europe, Southeast Asia and Africa, etc. The small pellet mill of Hongde is popular with the new and old customers for the character of perfect quality and high yield.
