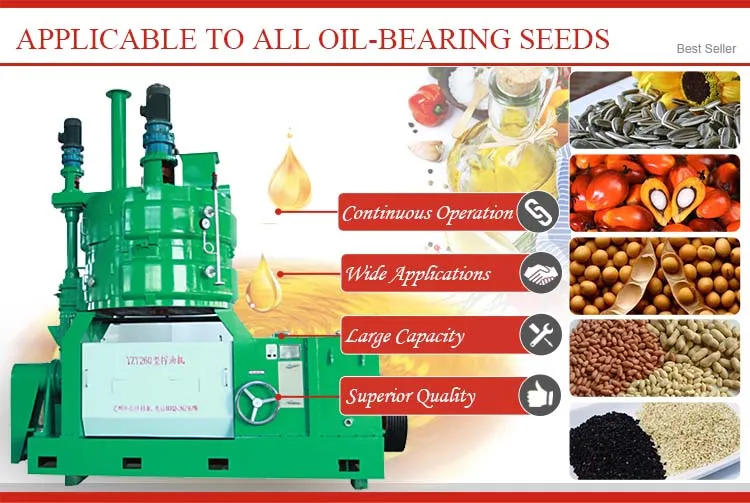

Small Edible Ginger Hemp Coconut Gingelly Mustard Almound Cottonseed Avocado Soybean Groundnut Corn Oil Making Machine

Small Edible Ginger Hemp Coconut Gingelly Mustard Almound Cottonseed Avocado Soybean Groundnut Corn Oil Making Machine is a kind of oil press equipment with the automatic temperature control function, which is widely used in different edible oil processing plants. Automatic temperature controlled oil press machine uses an electric heating coil device to heat the press, and make the oil press machine pre-heated quickly and start the production quickly. It can be used for various raw materials, such as soybeans, peanuts, cotton seeds, rape seeds, sesame seeds, sunflower seeds, canola seeds, coconut seeds, tea seeds, palm seeds and jatropha seeds.

SEND INQUIRY NOW

Large edible ginger hemp coconut gingelly mustard almound cottonseed avocado soybean groundnut corn oil making machine

What is large corn oil making machine

Unlike small oil press, large corn oil making machine utilizes physical mechanical force to press oil from a very wide range of oil seeds. Its compact construction allows easy and continuous operation. This kind of corn oil making machine is usually adopted by large capacity oil making factories.

Technical parameter of other corn oil making machine

We design and manufacture different models of corn oil making machine for our clients. All of these models are suitable to process all kinds of raw material, including peanut, soybean, sunflower seeds, corn germ, palm kernel, copra, mustard and more. Single oil making machine capacity ranges from 10 to 200 TPD.

Structural highlights of groundnut oil making machine

Why you should choose our groundnut oil making machineWhat’s the highlights of our groundnut oil making machine?

Simply put, it is the most cost effective large oil making machine in today’s market. It features a lots of advantages.

This type of screw oil press expeller is equipped with pressing bars to ensure continuous oil extractionWith combined steaming and roasting design, it can process almost all materials, even these hard and large oil seeds.It requires small power for longer oil pressing time, so it can save much energyIt can produce higher quality oil and cakeFlexible production ability suitable for different processing capacity, small, medium and large.It is equipped with cooking and insulation machines on the top, so it is much easier to control the temperature of raw material, then maintain stable oil yield and smooth oil output

Operating principle of groundnut oil making machine

The meal is fed through the inlet opening (1) into every stage of the steaming kettle (2), (3), (4) and is then gradually heated up and stirred by the stirrer. Blades from one stage to another. After being pushed out from the outlet (5) of the bottom stage, it drops into the feed head (6) and is delivered to the pressing cage (7) to be compressed by various sections of the pressing worms therein. The extracted oil flows through gaps between cage bars into the oil screw conveyor (8) and thence to an oil reservoir, whereas the cake is discharged at the rear of the machine. All this shows that the whole process of oil extraction, beginning from feeding, steaming, heating up to oil and cake discharging, is fully automatic and continuous. Therefore, when once the amount, the temperature and the moisture of seeds and the thickness of cake have been set, the operator needs only to observe the feed indicating pointer, steam pressure gauges and ammeter and make adjustment when necessary, thus minimizing the requirement of supervision and greatly saving labor.

Wide application of soybean oil making machine

Our large soybean oil making machine is kind of superior machine that is able to process all kinds of raw material. More importantly, the oil it pressed is light in color, pure in flavor. While, its oil cake contains more nutrition.

Large scale soybean oil making machine

We have gain rich experience in building oil production lines by have successfully constructing many oil production factories, range from 10 TPD to 500 TPD, all around the world. Besides, our soybean oil making machine in these projects have been widely recongized by our clients.

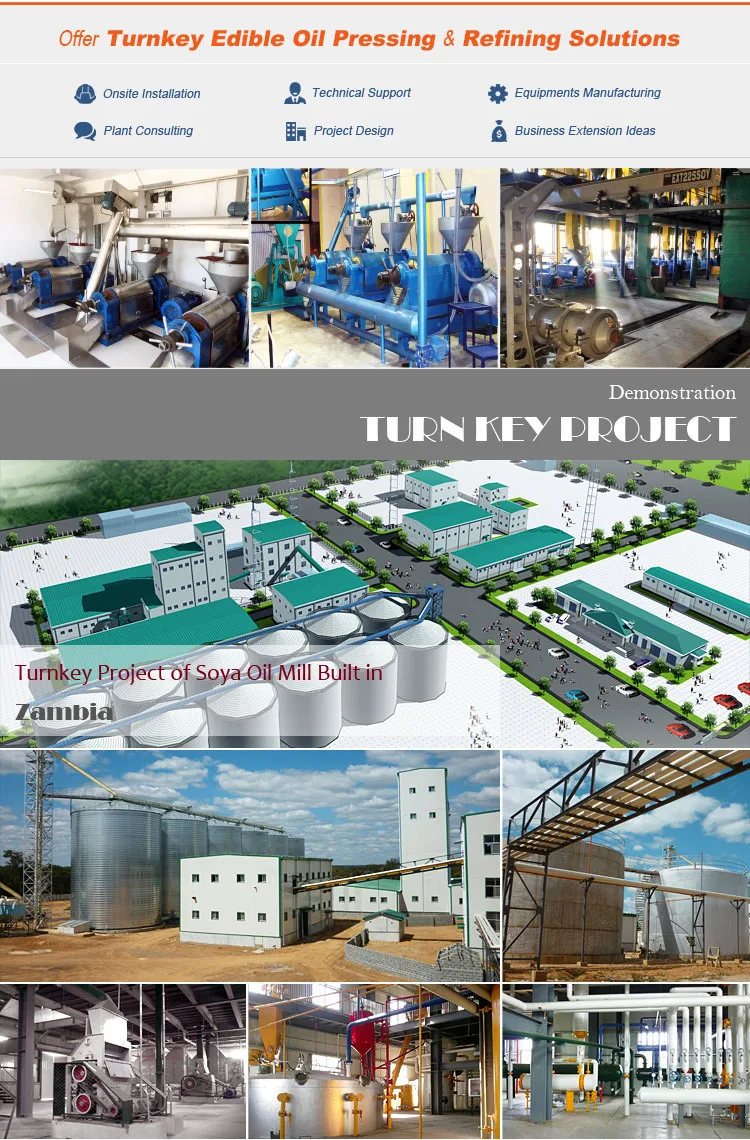

Complete turnkey projects of oil making plant

Certifications of groundnut oil making machine

Orders of groundnut oil making machine
