100 Tons Per Day Low Investment Vegetable Peanut Soybean Sunflower Oil Production Line With Cooking Oil Making Machine

100 Tons Per Day Low Investment Vegetable Peanut Soybean Sunflower Oil Production Line With Cooking Oil Making Machine is a kind of oil press equipment with the automatic temperature control function, which is widely used in different edible oil processing plants. Automatic temperature controlled oil press machine uses an electric heating coil device to heat the press, and make the oil press machine pre-heated quickly and start the production quickly. It can be used for various raw materials, such as soybeans, peanuts, cotton seeds, rape seeds, sesame seeds, sunflower seeds, canola seeds, coconut seeds, tea seeds, palm seeds and jatropha seeds.

SEND INQUIRY NOW

Advantages of Hongde Grain And Oil Machinery Co., Ltd. peanut oil making machine:

(1) Secondary press minimizes residual oil in the cake.

(2) Automated factories make production more efficient.

(3) Continuous production, give full play to the function of the machine.

(4) One-stop service, directly provide all the needs.

(5) Low unit production cost, low labor consumption.

(6) Oil products are of high quality and of high value in the international market.

Peanut Pretreatment process:

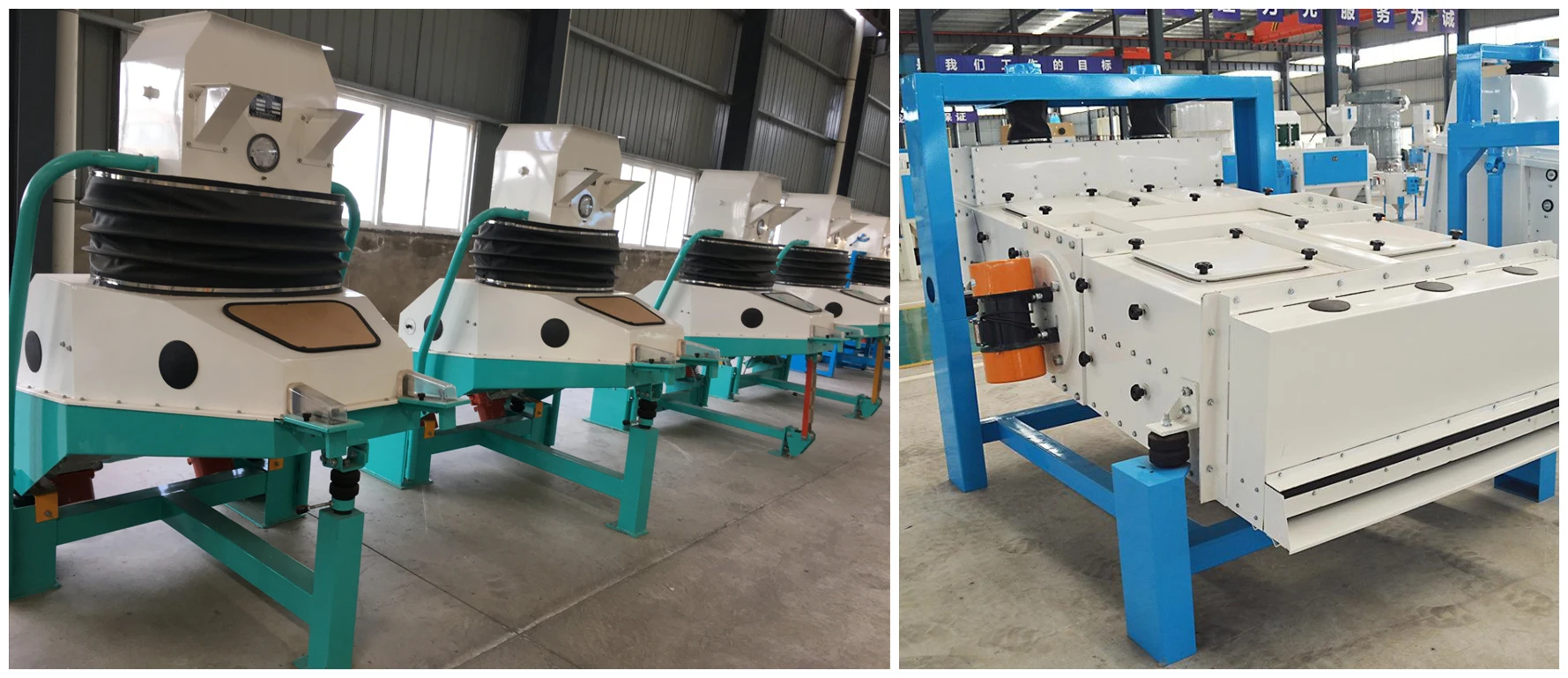

1) Cleaning: Our vibration screen and destoner will remove various impurities from raw material peanut such as:

irons, stones, clumps, after clean up the peanut impurity content lower than 0.2%. This will ensure that they can

follow the normal operation of the press process.

2) Crushing: Oil seeds is crushed into 6-8 pieces. The purpose of this section is to relieve the pressure on the embryo

pressing section.Reduce powder production.

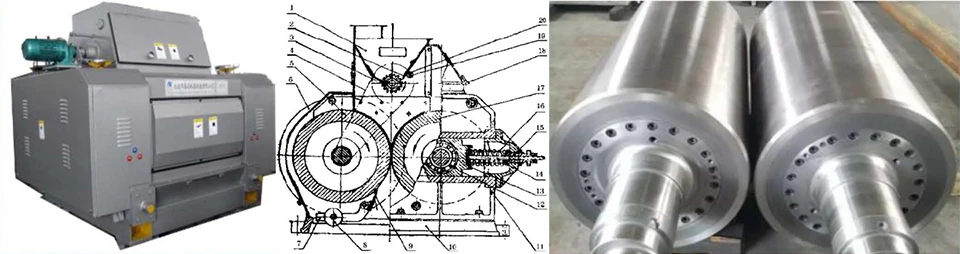

3) Flaking: Rolling raw material into flakes, and the purpose is to destroy the peanut cell tissue, and increase contact

surface area. It’s much easier to be heated or to adjust to different states of moisture.

4) Cooking: The purpose of cooking is to adjust the moisture and temperature of oil seeds, this destroys the cell walls

of the oil and provides the conditions for subsequent embryo pressing.

5) Pre-press: Press the flakes to suitable oil content of 15%-16% in the cake.This is to reduce the pressure of the

secondary press.To extract as much residual oil as possible.

6) Second oil pressing: cake will extracted again with oil residue content about 5%. This part of the oil mill is specially

designed to minimize residue at a slower rate.

7) Filter:Filter the oil for impurities.To improve the whole quality.Reduce the pressure of refining.

Advantages of Hongde Grain And Oil Machinery Co., Ltd. peanut oil making machine:

1. Special cold refining technology is necessary for fragrant peanut oil, fragrant rapeseed oil, fragrant sesame oil and

fragrant linseed oil. It can remain the original aroma and meet the national standards at the same time.

2. Cold refining process equipment, which is very popular with the customers, researched by OCEAN meets the demand

of traditional and modern technology standards.

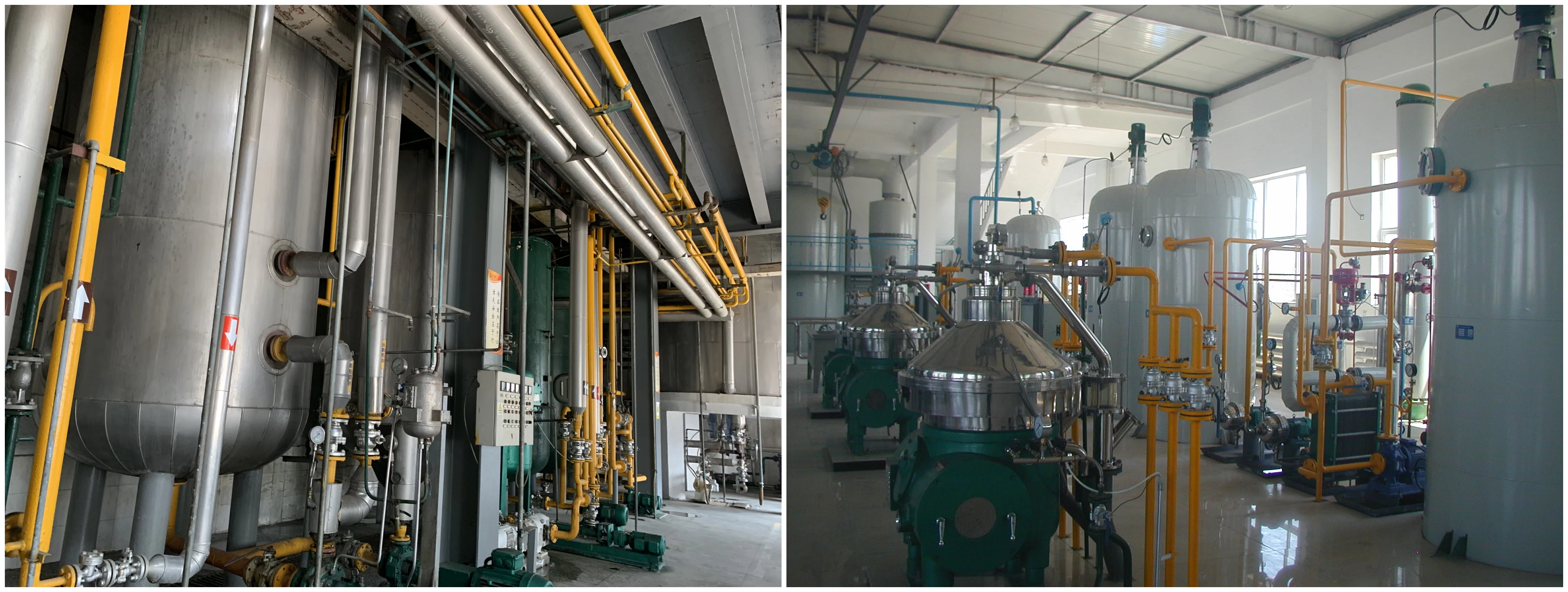

Refining process of peanut oil making machine:

(1) Degumming and Neutralization: The non-hydrophilic phospholipids are converted to be hydrophilic phospholipids

by adding phosphoric acid to remove oil corners. Then add the alkali solution and let the soap congeals. And it was

eventually separated by a disc centrifuge. Finally using vacuum drying and proceed to the next step.

(2) Bleaching:Use active attapulgite clay.Adsorption of fat-soluble pigments, such as carotene and chlorophyll, that

affect the color of oils.Improve oil quality and color. After bleaching by active attapulgite clay, the leaf filter will be used to filter

out the white soil, to ensure that there is no residual white soil.

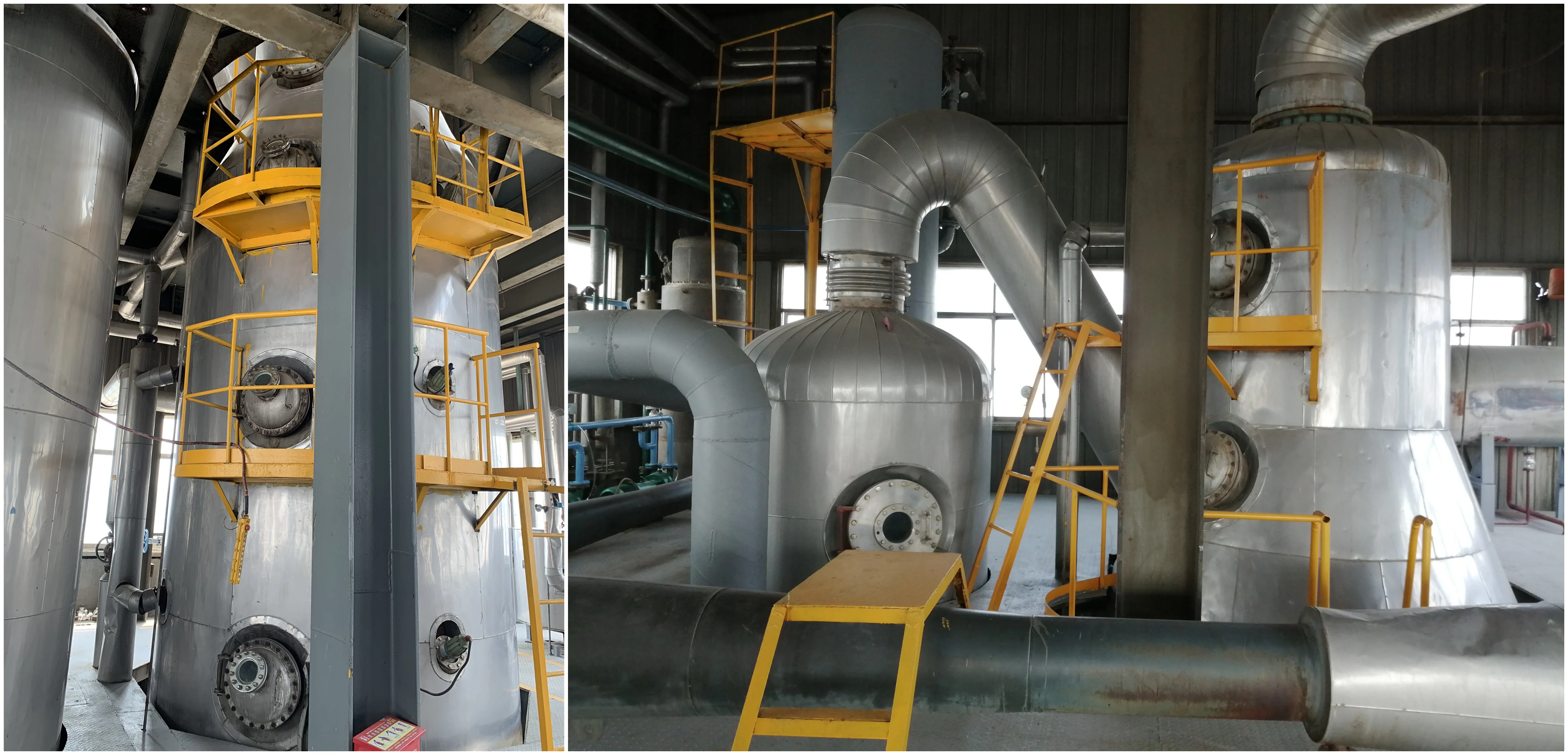

(3) Deodorization: The use of more than 200℃ of high temperature evaporation oil odor particles, improve the quality of oil,

easy to oil long-term preservation.In this process we use the principles of vacuum and distillation to achieve the highest quality of the oil.

Company Information

Henan Hongde Grain And Oil Machinery Co., Ltd. is a famous manufacturer of oil extraction, oil refinery, oil fractionation and biodiesel plant in China. Registered capital is about

7(seven) Million USD. We have above 50 senior engineers majored in technical process, mechanical, electrical, PLC control etc.

Experts from related scientific research institutions,and international oil specialists. We have strong R&D engineering design capabilities,

own perfect scientific research, design, office hardware facilities and international advanced computer design software.

We also built joint lab with Henan University of Technology.

We devote ourselves to development of new product & new technology. We have above 40 patents and proprietary technology.

The production lines by us are running in 32 provinces of China, welcome to visit us.

1. Which kind of materials can be processed?
All kinds of oil seeds. For example, rice bran, corn germ, cottonseeds, peanut, sunflower, soybean, rapeseed, etc.

2. Whether the machine price can be more discount?
In general, our MOQ is 1 set with very reasonable price, but if there is a large order, we also can apply to

our Manager to appropriately provide you better discount.

3. How long is the delivery time ?

30-90 days varies from different plants and capacities.

4. Is your quote including spare parts ?

Yes, the quote includes one year of spare parts.

5. Besides small oil making machine, what else machines can you do?

We have pressing machines, solvent extraction machines and refinery machines:
