20 Tons Small Refining Machine Used Mini Fish Peanut Olive Sesame Coconut Cotton Sunflower Soya Palm Edible Oil Refinery Plant
- Condition:
-
New
- Usage:
-
palm oil, soya oil and other vegetable oil
- Type:
-
batch edible oil refinery plant
- Automatic Grade:
-
Automatic
- Production Capacity:
-
98%-100%
- Place of Origin:
-
Henan, China
- Brand Name:
-
Hongde edible oil refinery plant
- Voltage:
-
360V
- Dimension(L*W*H):
-
Based oil capacity and request
- Weight:
-
Based oil capacity and request
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- Color:
-
Red/White/Yellow/Green
- Capacity:
-
20 tons per day edible oil refinery plant
- Supply Method:
-
Original Equipment Manufacturer (OEM)
- Delivery:
-
Within 30 days
- Application:
-
Various vegetable oils and animal oils
- Spare Parts:
-
Sufficient and cheap spare parts avaible
- Advantage:
-
Low investment & High efficiency
- Residual oil rate:
-
1%
- Refining type:
-
Batch edible oil refinery plant
- Certification:
-
CE & ISO edible oil refinery
20 tons small refining machine used mini fish peanut olive sesame coconut cotton sunflower soya palm edible oil refinery plant
Hongde enjoys great reputation in the field of oil refining. We provide customized edible oil refinery plant from 1TPD to 500TPD. Just tell us your raw material and your oil processing demand, we will offer you one-stop service from oil refinery unit designing and commitioning. Little investment, worry-free, but high profit.
What is edible oil refinery plant?
Edible oil refinery plant is necessary for every edible oil milling plant. Crude oil obtained by screw pressing or solvent extraction from oil seeds need to be refined in edible oil refinery plant, because it throws a deposit of so-called gums on storage. The chemical nature of these gums has been difficult to determine. They contain nitrogen and sugar and can start fermenting, so they were at one stage thought to consist of glycolipids and proteins.
types of edible oil reifnery plant
Two processes have been developed to refine edible oils and fats, physical and chemical refining. The decision which process to use depends on the types and qualities of the crude oil to be processed. The names physical and chemical refining come from the process technology used to remove the Free Fatty Acids (FFA) that are responsible for the oil acidity. Physical refining is a process making use of the lower boiling point of the FFA compared to the boiling point of the triglyceride oil. In chemical or alkaline refining, an alkali is used to neutralize the FFA.

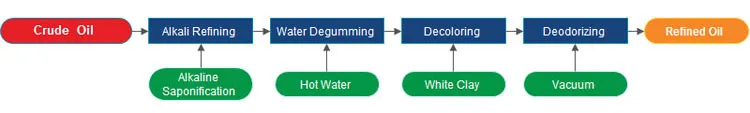

Main edible oil refinery plant steps
Degumming: remove gums in the crude oil to improve oil edibility, storage and do well to downstream neutralizing section.
Neutralizing: remove Free-Fatty Acids (FFAs) with caustic soda (NaOH). Soap stock is generate in this process.
Decolorizing/Bleaching:remove color pigments contained in oils.
Deodorizing: remove disagreeable flavor and odors that are naturally present or created during processing under high temperature.
Dewaxing (Optional): Oils like sunflower oil or maize germ oil (corn oil) have waxes present in them. At low temperatures these waxes give a hazy appearance to the oil. So in extremely cold areas, dewaxing should take into coconut when processing these oil seeds.
What’s kind of oil can be refined by our edible oil refinery plant?
Our edible oil refinery plant is suitable for various oil refining, including palm oil, soya oil, coconut oil, mustard oil, sunflower seed oil, rapeseed oil, peanut oil, cottonseed oil, flaxseed oil, and other vegetable oil. In addition, Our edible oil refinery plant is also able to refine animal oils, such as fish oil, seal oil, etc..
If you are looking for edible oil refinery plant, we are your best choice for our premium quality refining equipment and powerful technical support!

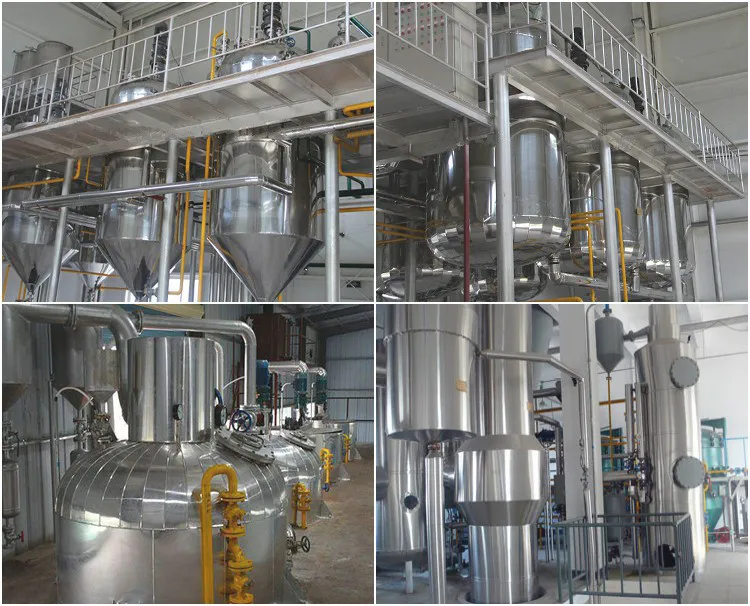

What’s the main oil refinery equipment?
The equipment list of our edible oil refinery plant:
Refining pot, decoloring pot, deodorizing pot, degumming pot, soapstock tank, hot water tank, cooling tower, FFA catcher, water pumps, and more.
Hongde edible palm oil refinery plant
We can offer complete palm oil refinery plant solutions, from plant layout design, refining machinery manufacturing, onsite debugging and installing. Both physical refining and chemical refining is available. We have gained rich experience in mini or small palm oil refinery plant. At the same time, we can also provide turnkey projects. The refining capacity of our palm oil refinery plant ranges from 1TPD to 1500 TPD.
Sucessful project of our palm oil refinery plant
Hongde edible mini soya oil refinery plant for sales
The mini soya oil refinery plant we offer is batch type oil refinery units. The aim of the refinery is to remove phospholipids, FFA, pigment, gums, waxes, off-flavor and other impurities from the crude oil. The key process of soya oil refinery plant including degumming,neutralizing, decolorizing and deodorizing.
Packing & Delivery
of Hongde edible oil refinery plant equipment
