1 Ton Per Day Mini Small Vegetable Cooking Coconut Soya Peanut Sunflower Palm Mustard Crude Oil Refinery Machine
- Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
vegetable oils and animal oils
batch oil refinery
- Automatic Grade:
- Production Capacity:
- Place of Origin:
- Brand Name:
Hongde crude oil refinery machine
1 Year, 12 Months
- After-sales Service Provided:
Engineers available to service machinery overseas
1 ton per day
- Delivery time:
Within 30 Days
- Application range:
Crude vegetable oils
Professional instructions and experienced engineers
- Spare parts:
Cheap and sufficient spare parts avaliable
High efficient oil refinery machine
Premium quality steel
Wholesale oil refinery machine
CE&ISO oil refinery machine
1 ton per day mini small vegetable cooking coconut soya peanut sunflower palm mustard crude oil refinery machine
Hongde oil refinery machine provides professional oil refinery processes, including degumming, dehydration, deacidification, decolorization, bleaching, deodorization, and dewaxing. The complete set of crude oil refinery machine adopts the most advanced physical refining or chemical refining technology on basis of oil property to get the purest edible oil at the lowest cost investment and energy consumption. It is suitable for various crude vegetable oils, including peanut oil, soybean oil, sunflower oil, canola oil, palm oil, palm kernel oil, olive oil, sesame oil and more.
1TPD oil refinery machine structure
This 1 ton per day mini oil refinery machine contains a series oil refining process. Each of them is accomplished within specific machine. So, what refining machinery are included in this small mini line. Generally, it should have Heat Conduction Furnace, Steam Generator, Refining Pot, Decolorizing Pot, Deodorizing Pot and other Auxiliary Machines and Spare Parts.
Small oil refinery machine process
As above mentioned, the main process within crude oil refinery plant are degumming, neutralization, decolorization, deodorization and so on.
Degumming Section: Some impurity, such as Phospholipid, gum, and protein, can be dissolved into oil when there is no water, but once there is water in oil, these impurity can be dissolved into water. So, in degumming section, we use the hot water to wash crude oil for two-three times to remove these impurity.Neutralizing Section: Crude oil contains much free fatty acid, which is harmful for health. Free fatty acid can have the reaction with caustic soda, during the reaction, it can be saponified and becomes soapstock, then small soapstock pellets will sink and becomes sediment and be pumped out. After neutralizing, most of the free fatty acid will be removed out.Decoloriztion Section: Most of the crude oil has deep color because of the pigments, such as carotene, xanthophyll, etc. We use bleaching earth to remove pigments, because bleaching earth has strong adsorption capacity. Then pump oil into plate filter to remove bleaching earth, then pigment also will be removed out along with bleaching earth, then oil will be clean and transparent.Deodorizing Section: Pure oil has no smell, but different crude oil has their special smell because of some volatile matters, for example the oxide for ketones, aldehydes, hydrocarbons. In deodorizing section, we deliver steam into oil continuously, and make sure steam and oil can fully contacted under high temperature and pressure, then volatile matters can be removed out along with the steam.
Customized 1T/D oil refinery machine
Hongde oil refinery machine can be customized for different crude oils. In addition, the materials can also be customized. If you prefer stainless steel, we also can supply premium quality crude oil refinery machine. But, if you prefer to lower the investment, our oil refinery machine is great!
Installation of crude oil refinery machine
As professional oil mill machinery supplier, we have strong and professional engineers for the whole installation and commissioning of our crude oil refinery machine.
Advantages of our oil refinery machine
Advanced designed oil refinery process
Hongde designs advanced and professional crude oil refinery machine to obtain high purity refined oil. It contains hydrated degumming, alkali refining deacidification, negative pressure decoloring process through blenching earth, deodorizing to remove odor components in oil, and dewaxing to remove wax in oil. The heat conduction oil boiler can supply above 280°C energy to each device, steam generator can supply steam for deodorizing and distillation, vacuum pump can supply vacuum for dehydrate, decolor and deordor. The press filter is used to filter clay and filter out clear oil, and air compressor to blow dry blenched clay and empty the leftover oil in press filter.
Automatic control system assures high efficiency oil refinery
The application of advanced automatic control system in large oil refining plant provides the most secured, reliable production in entire workshop and monitors the operation status by controlling the computer terminals.
Low production cost and high purity refined oil.
We adopts compact crude vegetable oil refinery process to obtain high purity refined oil with impurity less than 0.2%. The adoption of waste recycle system can protect environment efficiently.
Trustable oil mill machinery supplier – Turnkey Projects

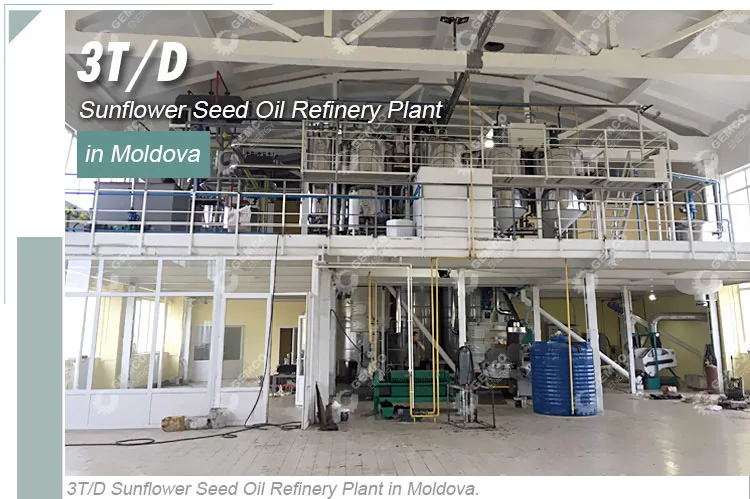

Projects of Hongde oil refinery machine
Parts of our oil refinery machine achievements:
|1TPD Mustard Oil Refining line in India||1TPD Sunflower Oil Refining line in Tanzania|
|1TPD Olive Oil Refining plant in Peru||1TPD Seal Oil Refining plant in Namibia|
|3TPD Sunflower Oil Refining line in Tanzania||5TPD Fish Oil Refining plant in Pakistan|
|5TPD Fish Oil Refining plant in Philippines||5TPD Soybean Oil Refining plant in Korea|
|10TPD Soybean Oil Refining plant in Mauritius||10TPD Palm Oil Refining & Fractionation plant in Cote d’Ivoire|
|5TPD Soybean Oil Refining line in Ghana||20TPD Soybean Oil Refining Plant in Zambia|
|20TPD Copra Oil Refining Plant in Philippines||20TPD Chemical Distillation Line in Australia|
|30TPD Cotton Oil refining & Fractionation plant in Afganistan||20TPD Coconut Oil Refining plant in Philippines|
|50TPD Oil Tanks for Bio-diesel line in Australia||50TPD Sesame Oil Refinery of injection in Mexico|
|150TPD Palm oil Degumming & Dewatering line in Australia||3*500Tons Oil Tanks in Zambia|
Why choose us as your oil refinery machine supplier
Customer recognition of small mustard oil refinery machine
