50 Tons Continuous Complete Edible Rapeseed Mustard Peanut Sunflower Soya Crude Palm Cotton Seed Cooking Oil Refinery Plant

50 Tons Continuous Complete Edible Rapeseed Mustard Peanut Sunflower Soya Crude Palm Cotton Seed Cooking Oil Refinery Plant is a general term for the removal of solid impurities, free fatty acids, phospholipid, colloid, wax, pigment and odors in vegetable oils. The presence of impurities contained in crude oils not only affects the use value, the safety storage of crude oil, but also cause difficulties for the deep processing crude oils. Edible oil refining is not only removes all the impurities out from the crude oils, but also refines harmful impurities, such as, gossypol, protein, lecithin, mucus, water and more. In this way, the edible oils can have better storage, industrial applications and cooking purpose. However, some beneficial substances, such as tocopherol, sterol and more, will be maintained.

SEND INQUIRY NOW

50 tons continuous complete edible rapeseed mustard peanut sunflower soya crude palm cotton seed cooking oil refinery plant

Introduction of continuous cooking oil refinery plant

Continuous cooking oil refinery plant is recommended for oils containing higher FFA content. It’s daily capacity is normally over 30 tons, ranging from 30 tons per day to 1500 tons per day. Comparing to batch and semi-continuous oil refinery, continuous cooking oil refinery plant minimizes the refinery cost and provides superior quality finished oil.

Installation of cooking oil refinery plant

Our cooking oil refinery plant is specially designed to produce odorless, bland, and stable oil with the appropriate color for a wide variety of cooking and baking applications. From low-cost production of bulk commodity salad and cooking oils to development of the most sophisticated designer-type oils and fats system, Hongde provides the processor with the latest technology and lowest operation costs.

Type of continuous cooking oil refinery plant

Continuous oil refinery plant can be divided into two types: physical and chemical oil refining.

Physical refining is necessary for the removal of Free Fatty Acid, and also to use steam distillation method at high temperature and under high vacuum; it’s then followed by deodorization and before deodorization for removal of free fatty acid an extra Technical facility is also added. Unacceptable odor due to steam deodorization process is removed through steam distillation; plus the odoriferous compounds are stripped off with the help of live injected steam into heated oil under high vacuum.Chemical refining is most widely used method for refining all types of crude oils. Chemical method of refining is accepted when the Free Fatty Acids is high, it removes the Free Fatty Acids and other impurities in a chemical way by Acid-Base neutralization process. Caustic soda is used as a base for this method. The addition of Caustic Soda to the acid completes the neutralization. This results in the formation of soapstock and gums which are then separated by Separators & Centrifuges. The neutralized oil is subsequently bleached and deodorized.

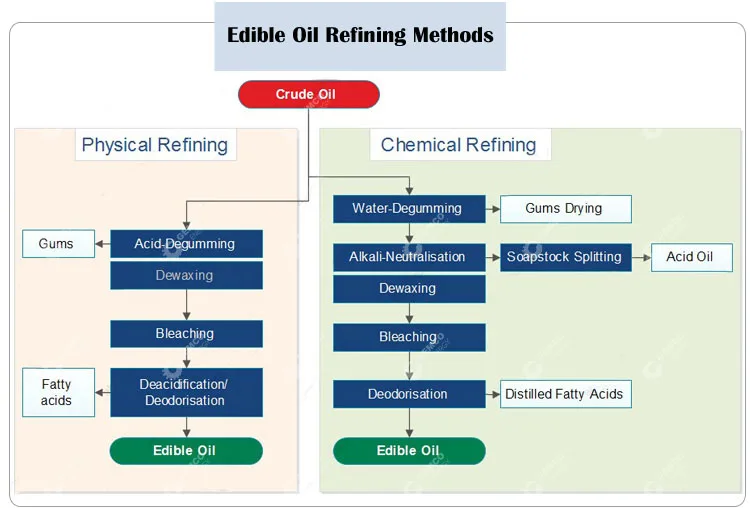

Flow chart of continuous cooking oil refinery plant

Each process of the cooking oil refinery plant has its special and important functions, most of the cooking oil refining process is the same, but some may have a little difference. For example, for cotton seed oil refinery plant or crude palm oil refinery plant, it may be neccessary to add fractionation process for highest quality of the final oils.

Projects of cooking oil refinery plant

Hongde is a reliable and qualified cooking oil refinery plant designer and supplier. We have built many cooking oil refinery plant for different vegetable oils, including palm oil, palm kernel oil, cotton seed oil, sunflower oil, soybean oil, mustard oil and more. In addition to large scale continuous cooking oil refinery plant, we also provide small scale oil refining unit, from 1TPD to 30TPD. Any questions, please contact us for more details.

Parts of cooking oil refinery plant achievements

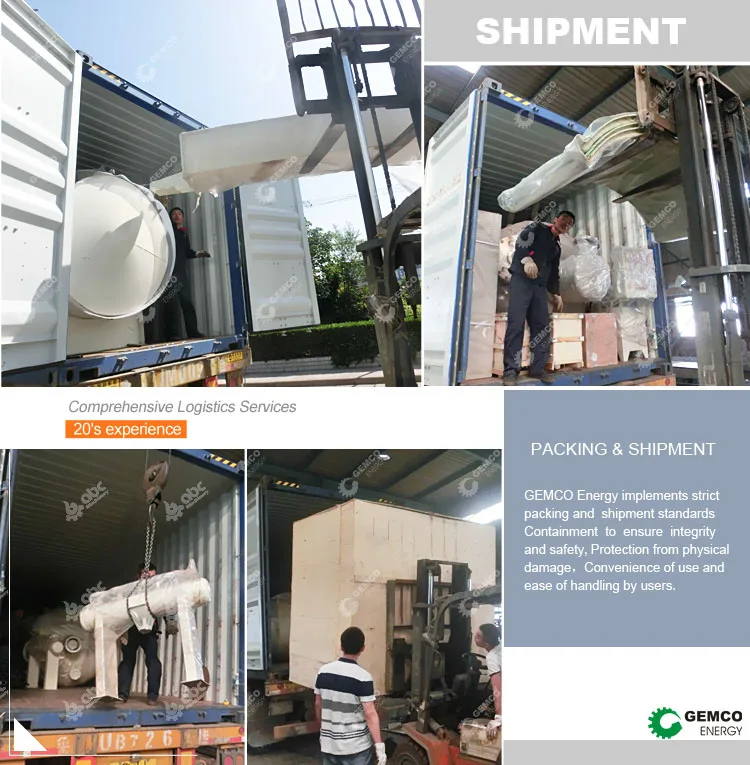

Packing and shipment of cotton seed oil refinery plant

Certifications of our crude palm oil refinery plant

Customer testimonial of cotton seed oil refinery plant
