vegetable oils and animal oils
batch oil refinery
Automatic Grade:
Production Capacity:
Place of Origin:
Henan, China
Brand Name:
Hongde oil refinery machine
1.5 Ton
After-sales Service Provided:
Engineers available to service machinery overseas
CE&ISO oil refinery machine
Customers’ request
1 ton per day
12 Months
Delivery time:
Within 30 Days
Application range:
Crude vegetable oils
Professional instructions and experienced engineers
Spare parts:
Cheap and sufficient spare parts avaliable
High efficient used oil refinery machine
Premium quality steel
Wholesale oil refinery machine

Buy small used oil refinery machine

Buy small used oil refinery machine

Hongde crude used oil refinery machine

Our crude oil refinery machine provides professional oil refinery processes, including degumming, dehydration, deacidification, decolorization, bleaching, deodorization, and dewaxing. The complete set of used oil refinery machine adopts the most advanced physical refining or chemical refining technology on basis of oil property to get the purest edible oil at the lowest cost investment and energy consumption.
Buy small used oil refinery machine

Main used oil refinery machine for sale

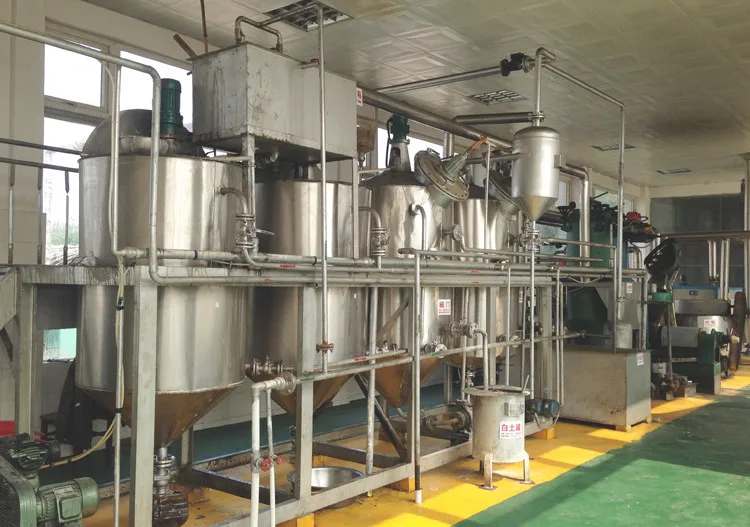

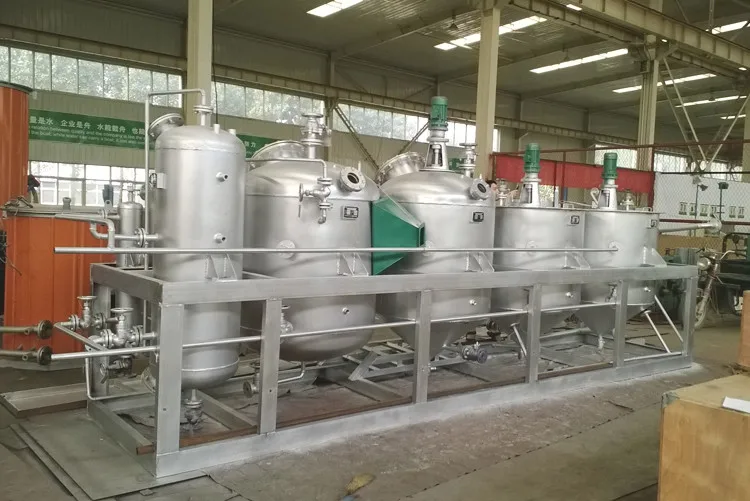

This 1 ton per day mini oil refinery line contains a series oil refining process. Each of them is accomplished within specific machine. So, what refining machinery are included in this small mini line. Generally, it should have Heat Conduction Furnace, Steam Generator, Refining Pot, Decolorizing Pot, Deodorizing Pot and other Auxiliary Machines and Spare Parts.
Buy small used oil refinery machine

Process of crude used oil refinery machine plant

As above mentioned, the main process within crude oil refinery plant are degumming, neutralization, decolorization, deodorization and so on.
Buy small used oil refinery machine

Introduction of four sections in small scale used oil refinery machine :

1.Degumming Section: Some impurity, such as Phospholipid, gum, and protein, can be dissolved into oil when there is no water, but once there is water in oil, these impurity can be dissolved into water. So, in degumming section, we use the hot water to wash crude oil for two-three times to remove these impurity.

2.Neutralizing Section: Crude oil contains much free fatty acid, which is harmful for health. Free fatty acid can have the reaction with caustic soda, during the reaction, it can be saponified and becomes soapstock, then small soapstock pellets will sink and becomes sediment and be pumped out. After neutralizing, most of the free fatty acid will be removed out.

3.Decoloriztion Section: Most of the crude oil has deep color because of the pigments, such as carotene, xanthophyll, etc. We use bleaching earth to remove pigments, because bleaching earth has strong adsorption capacity. Then pump oil into plate filter to remove bleaching earth, then pigment also will be removed out along with bleaching earth, then oil will be clean and transparent.

4.Deodorizing Section: Pure oil has no smell, but different crude oil has their special smell because of some volatile matters, for example the oxide for ketones, aldehydes, hydrocarbons. In deodorizing section, we deliver steam into oil continuously, and make sure steam and oil can fully contacted under high temperature and pressure, then volatile matters can be removed out along with the steam.

Advantages of our used oil refinery machine

Advanced designed oil refinery process
Hongde designs advanced and professional crude used oil refinery machine to obtain high purity refined oil. It contains hydrated degumming, alkali refining deacidification, negative pressure decoloring process through blenching earth, deodorizing to remove odor components in oil, and dewaxing to remove wax in oil. The heat conduction oil boiler can supply above 280°C energy to each device, steam generator can supply steam for deodorizing and distillation, vacuum pump can supply vacuum for dehydrate, decolor and deordor. The press filter is used to filter clay and filter out clear oil, and air compressor to blow dry blenched clay and empty the leftover oil in press filter.

Automatic control system assures high efficiency oil refinery
The application of advanced automatic control system in large oil refining plant provides the most secured, reliable production in entire workshop and monitors the operation status by controlling the computer terminals.

Low production cost and high purity refined oil.
We adopts compact crude vegetable oil refinery process to obtain high purity refined oil with impurity less than 0.2%. The adoption of waste recycle system can protect environment efficiently.
Buy small used oil refinery machine

Projects of Hongde used oil refinery machine

Buy small used oil refinery machine

Parts of our used oil refinery machine achievements:

1TPD Mustard Oil Refining line in India 1TPD Sunflower Oil Refining line in Tanzania
1TPD Olive Oil Refining plant in Peru 1TPD Seal Oil Refining plant in Namibia
3TPD Sunflower Oil Refining line in Tanzania 5TPD Fish Oil Refining plant in Pakistan
5TPD Fish Oil Refining plant in Philippines 5TPD Soybean Oil Refining plant in Korea
10TPD Soybean Oil Refining plant in Mauritius 10TPD Palm Oil Refining & Fractionation plant in Cote d’Ivoire
5TPD Soybean Oil Refining line in Ghana 20TPD Soybean Oil Refining Plant in Zambia
20TPD Copra Oil Refining Plant in Philippines 20TPD Chemical Distillation Line in Australia
30TPD Cotton Oil refining & Fractionation plant in Afganistan 20TPD Coconut Oil Refining plant in Philippines
50TPD Oil Tanks for Bio-diesel line in Australia 50TPD Sesame Oil Refinery of injection in Mexico
150TPD Palm oil Degumming & Dewatering line in Australia 3*500Tons Oil Tanks in Zambia
