Turnkey Oil Refinery Plant

Turnkey Oil Refinery Plant is a general term for the removal of solid impurities, free fatty acids, phospholipid, colloid, wax, pigment and odors in vegetable oils. The presence of impurities contained in crude oils not only affects the use value, the safety storage of crude oil, but also cause difficulties for the deep processing crude oils. Edible oil refining is not only removes all the impurities out from the crude oils, but also refines harmful impurities, such as, gossypol, protein, lecithin, mucus, water and more. In this way, the edible oils can have better storage, industrial applications and cooking purpose. However, some beneficial substances, such as tocopherol, sterol and more, will be maintained.

SEND INQUIRY NOW

Oil Refining Plant

The oil obtained from pressing or solvent extraction process always contains impurities such as phospholipids, FFA, pigment, off-flavor and other impurities. In order to make the oil edible, the impurities must be taken out; such a process is called “Oil Refining”. We are able to supply professional oil refining plant with state of the art edible oil refining technology and related oil refining equipments, we guarantee to the quality of the finished oil and the lowest production cost.

Oil Refining Plant

OCEAN offers two types of oil refining plants. One is batch oil refining plant, the other is continuous oil refining plant.

Batch Oil Refining Plant: Batch oil refining is used for low capacities from 10TPD to 30 TPD. The advantages are low investment, easy operation and maintenance, less effluent generation.

Continuous Oil Refining Plant: Continuous oil refining plant is used for higher capacities ranging from 30 TPD to 500 TPD and for oils containing high fatty acid (FFA) like Rice Bran Oil etc. The advantages are very superior quality oil, low processing cost.

Workshop of Oil Refining Plant

Edible Oil Refining

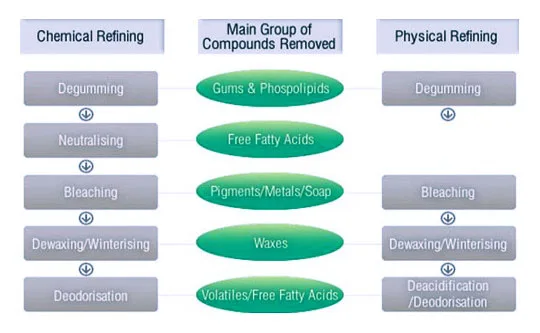

According to different technology of edible oil refining, we classify it into Physical Refining & Chemical Refining. Physical refining means removal of gum in oil during process of degumming in special method and removing FFA in process of deodorizing by steam. Chemical refining means removing FFA in a chemical way (acid-base neutralization). Gum and soap foot produced is separated by centrifuges.

Edible Oil Refining Process

Edible oil refining process always including the following sections: degumming, neutralizing, bleaching, deodorizing and dewaxing.
In the entire edible oil refining process, a lot of refining equipments can also be used, such as neutralizing pot, degumming pot, centrifugal, bleaching tower, vacuum filter, deodorization tower, FFA catcher, crystallizing pot, press filter etc.

Edible Oil Refining Process – Degumming

Hydration Degumming: Hydration degumming mean adding into some hot water and controlling the corresponding conditions to make the hydrosol agglomerated, deposited and then separate them. The separated gum(after being dried) can be made into lecithin or added into cakes or meals in the extraction workshop. Hydration degumming process can improve oil edibility, storage and do good to downstream neutralization section.

Special Degumming: The technology is specially developed to meet the demands of physical refining for edible / vegetable oil refining. Add small quantity to acid or dilute base to the vegetable oil, strictly control the corresponding conditions to separate out the hydrated gum and un-hydrated gum. Gum level in oil should be controlled to suitable for downstream processing.

Edible Oil Refining Process – Neutralizing

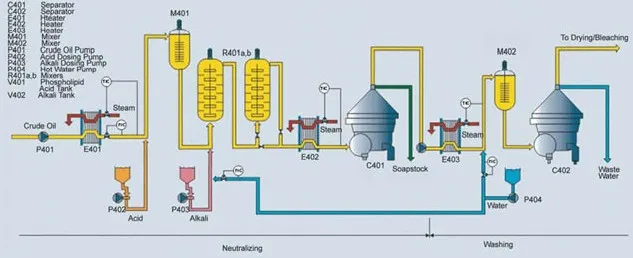

Since there are many kinds of oilseeds and the oilseeds quality is different from each other, we combine the merits of many technologies and develop the versatile neutralization washing technology. The technology can be used to process oil of various kinds, quality and requirements. Add into alkali, water and acid to remove FFA, crude phospholipids and moisture. As a result, (degummed and neutralized) oil and by-products such as soap foot, crude phospholipids and water are obtained.

Edible Oil Refining Process – Bleaching

High activity clay is added into oil. Mix and heat mixture of oil and clay to make the small particle of pigment absorbed on the crystal of clay. At last filter the oil. Perfect mechanism, liable performance, well configured equipment-Bleaching Tower and Filters ensures excellent bleaching and separation effect.

Edible Oil Refining Process – Deodorizing

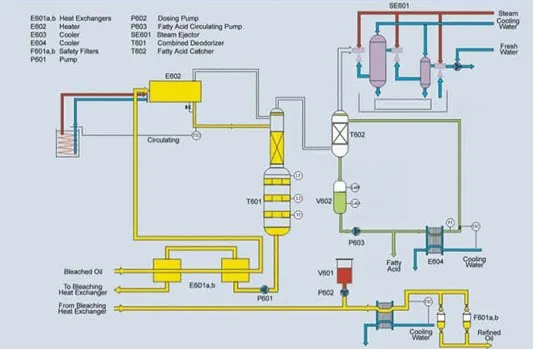

Combined deodorizing is the latest technology, which improves oil flexibility significantly. Detailed deodorizing process in the entire oil refining plant is: Most heat of bleached oil is recovered by Heat Exchangers. The bleached oil is heated to the process temperature by mineral oil or high pressure steam and then the oil enters into the Combined Deodorizer. The Deodorizer is a combined type: The upper is packing structure, which is used to remove odor components like FFA; the lower is a plate type used for heat bleaching and making product quality more consistent. Oil coming from the Deodorizer is cooled and stored after series of heat exchanger. Volatile like FFA is collected and stored as by-products.

Edible Oil Refining Process – Dewaxing

Dewaxing can improve oil quality, so it plays in important role to the finished edible / vegetable oil quality. At the same time, dewaxing can improve oil transparency and brightness. It is necessary to dewax for some oilseeds such maize oil, rice bran oil, sunflower oil and cotton seed oil. At present, winterizing method is very popular to dewaxing. The crystallizing rate, crystallization temperature, maturing time vary with oil features.

Company Information

Hongde Grain And Oil Machinery Co., Ltd. Group was founded in 1999, is a collection of scientific research, design, manufacturing, installation, commissioning, after-sales service in one of the high-tech enterprises.We has established long-term strategic cooperation with henan university of technology and zhengzhou COFCO scientific research and design institute to integrate production, learning and research. It has two manufacturing bases, two special research institutes and three production line installation enterprises, and we have A1 and A2 class pressure vessel design license,manufacturing license and installation qualification. Committed to the research and development of technology, equipment and application of grain and oil industry, to provide customers with oil pretreatment&press machine,solvent extraction plant, oil refinery plant, oil fractionation plant, oil dewaxing and degreasing plant, phospholipid engineering and biodiesel production plant etc. nearly 20 kinds of production lines. Insisting on high standard and refinement, zero defect production requirements, precision manufacturing, strictly controlled, we have received more than 60 independent patent property rights, and has passed ISO9001 quality management system certification, CE certification, OHSAS18001 certification. Professional oil technical support, on-site guidance of engineering construction and installation, insist on 365×24 hours after-sales service, has won the praise of domestic and foreign customers.

1. Which kind of materials can be processed?
All kinds of oil seeds. For example, rice bran, corn germ, cottonseeds, peanut, sunflower, soybean, rapeseed, etc.

2. Whether the machine price can be more discount?
In general, our MOQ is 1 set with very reasonable price, but if there is a large order, we also can apply to our Manager to appropriately provide you better discount.

3. How long is the delivery time ?

30-90 days varies from different plants and capacities.

4. Is your quote including spare parts ?

Yes, the quote includes one year of spare parts.

5. Besides small oil making machine, what else machines can you do?

We have pressing machines, solvent extraction machines and refinery machines:

Our press/expeller can get cold pressed oil or hot pressed oil from peanut, sunflower seeds, corn germ, cotton seeds, soybean, rapeseeds and other oil crops;

Our solvent extraction line can extract oil from various cakes by solvent(leaching),like soy cakes, peanut cakes, sunflower cakes and others;

Our refining machine can help you get refined oil from crude vegetable oil.
