Applicable Industries:
Restaurant, Home Use, Food Shop
Showroom Location:
Cold & Hot Pressing Machine
Automatic Grade:
Production Capacity:
Product Market:
Africa, Southease Asia
280 KG
1 Year
Key Selling Points:
Marketing Type:
New Product 2022
Machinery Test Report:
Video outgoing-inspection:
Warranty of core components:
1 Year
Core Components:
Oil type:
Soybean Oil, SESAME OIL, sunflower seed oil, walnut oil, Peanut Oil, Coconut Oil, OLIVE OIL, Palm Oil
Max Capacity:
Product name:
screw oil press machine
Raw Material:
Soybean sunflower seeds
Press Oil Seeds
Food Industry
Automatic multi-function
screw oil press machine
Method to press:
Screw Squeezed Press
Automatic Operate
Customizable Color
Wooden Case

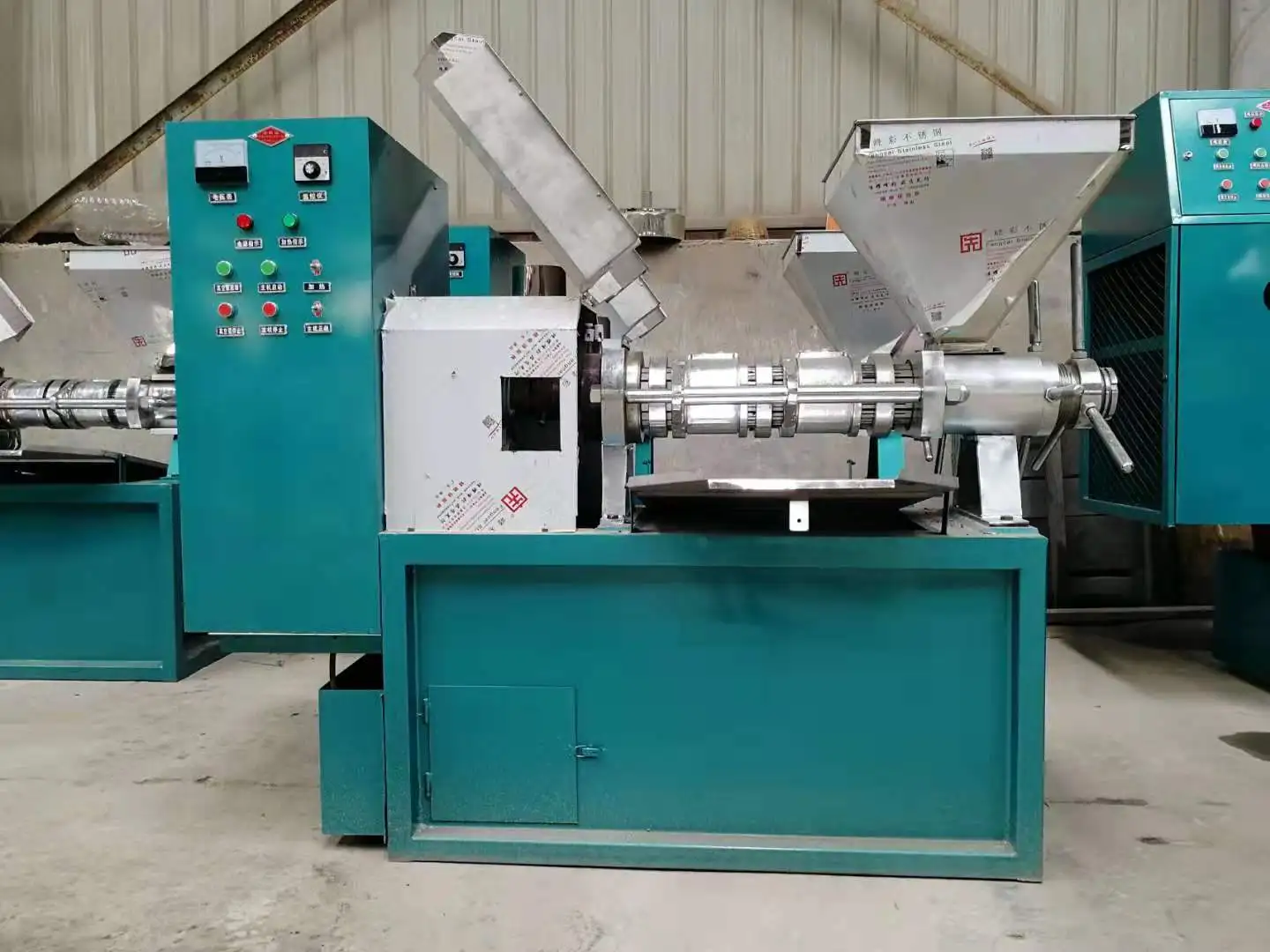

Automatic commercial sesame sunflower screw pure oil press machine for production line

Screw expeller pressing is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of screw oil expeller, they have similar theories in screw expeller pressing. Because the screw type seed oil expeller is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.

Structure of Peanut Oil Press Machine:

1.Characteried by simple design, easy to operate and maintenance
2.Cast iron machine baseoil pure automatic sunflower peanut seeds screw oil press machine
3.High productivity,energy saving and labour saving
4.Special gear box structure make the rotating speed averagely
5.Compact structure, stable functions
6.Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;oil pure automatic sunflower peanut seeds screw oil press machine
7.Compact structure, stable function.


Model MX-60 MX-70 MX-80 MX-100
Screw diameter 55mm 65mm 80mm 101mm
Screw speed 52 r/min 48 r/min 47 r/min 38 r/min
Power 3Kw 4Kw 5.5 kw 7.5Kw
Product capacity 60kg/h 90 kg/h 120 kg/h 200 kg/h
Weight 220 kg 280 kg 780 kg 1100 kg
Dimension(L*W*H)mm 1200*780*1400 1400*860*1260 1700*1200*1500 1800*1300*1680


The screw oil press machine is our new and original product, it is suitable for cold pressing and hot pressing of anything containing oil,such as olives, sesame, peanut kernel,walnut Kernel,Chili oil etc.It saves more space than traditional oil press and can be operated easily and conveniently. What’s more, it is multi-functional.

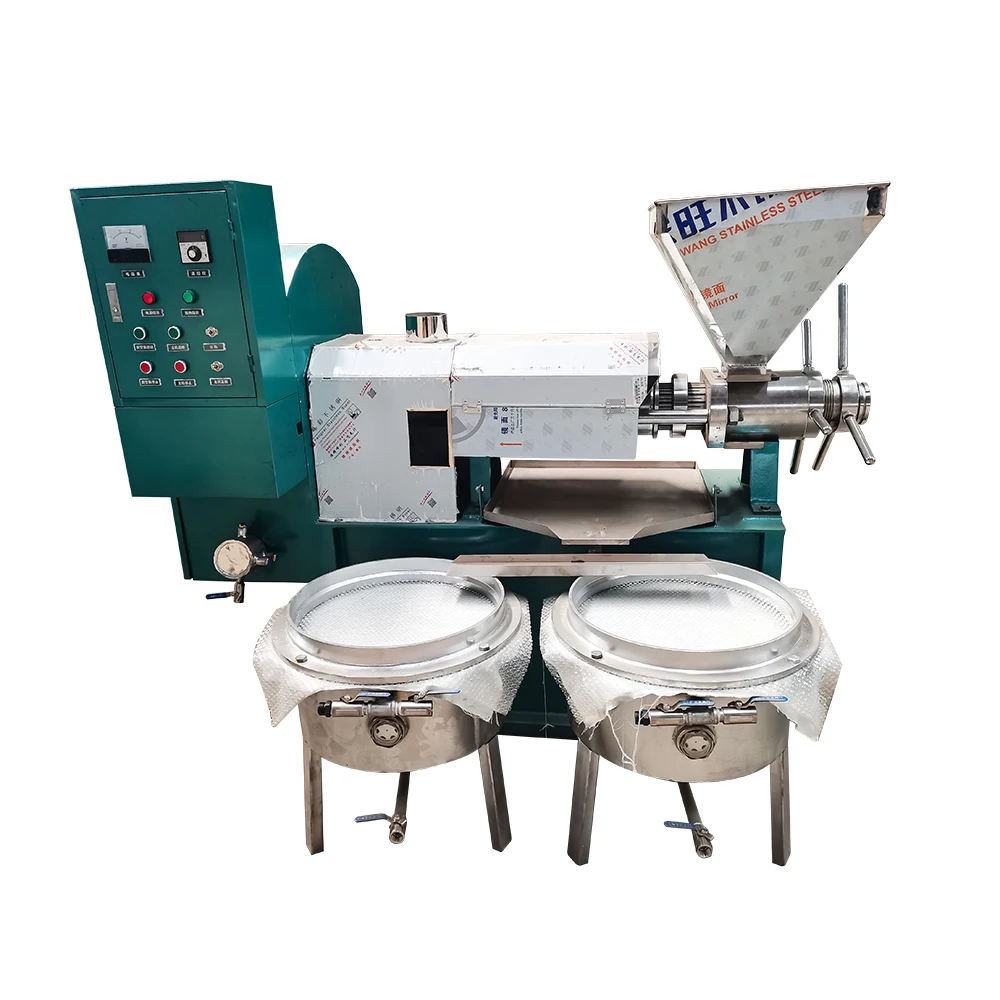

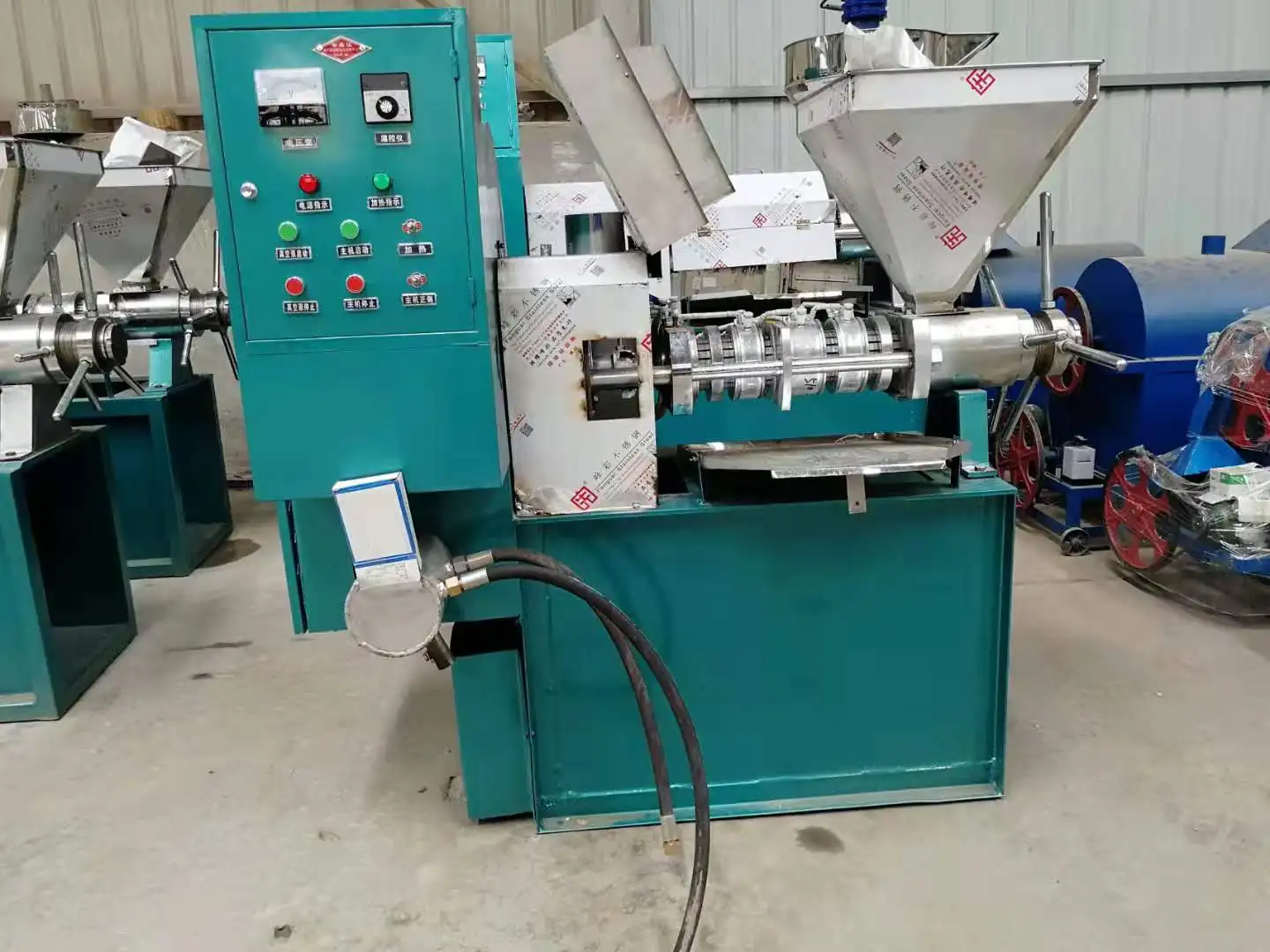

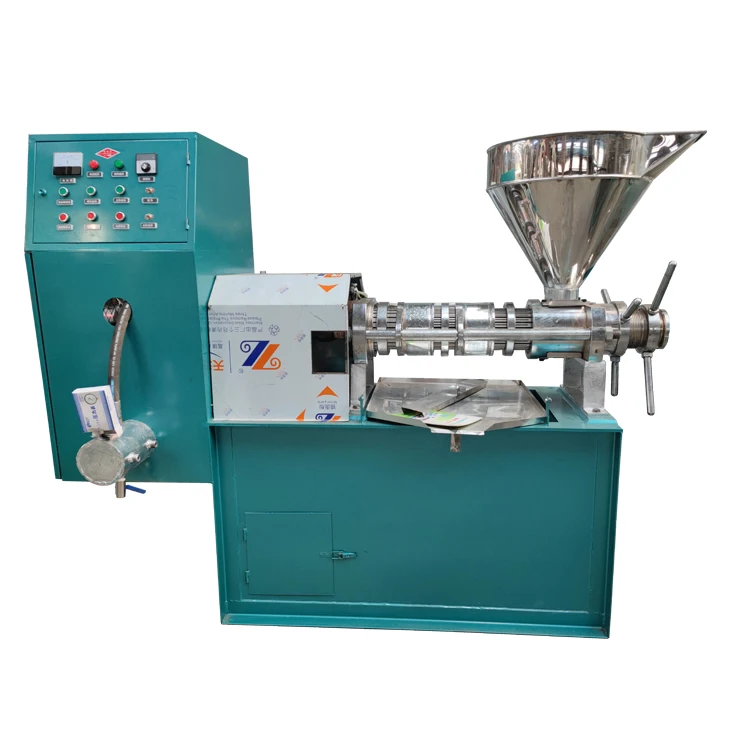

Product show

1.This machine is mainly composed of five parts: the electric control part, the heating and pressing part, the adjusting part, the transmission part and the vacuum filter oil.
2.The electric control part is composed of air switch, AC contactor, temperature control instrument, circuit automatic protection device.
3.The heating and pressing part is composed of a heater, a pressing screw, a machine body device, etc..
4.The transmission part is composed of the main shaft and the gear box, the pulley, the motor wheel etc..oil pure automatic sunflower peanut seeds screw oil press machine
5.The speed adjusting part is composed of an adjusting screw, a regulating nut, a handle and a locking nut etc..
6.The vacuum filter oil part is composed of the vacuum pump, oil filter tube line and other assembly components.

Can be made by stainless steel

Working Principle

The power bolt after reducing is transmitted to the spindle speed. The screw press is mounted to the spindle with rotation. The oil in the threads will continue to move forward, because the space between the press bore and screw gradually reduced, the oil density increase, thus the pressure increases gradually, in the process of squeezing, oil particle, the friction between the oil and the parts, the heat generated, so as to form oil extracting pressure, temperature of two elements, destroy the oil organization cell structure, the oil overflows from the oil line, the cake will be launched from the cake mouth, when the spilled oil flows through the oil filter on the oil cylinder, the vacuum pump extracts the air inside the barrel and the negative pressure formed in the barrel, the oil is drawn through the filter cloth and pumped outside the barrel, and the oil sludge will be quarantined on the cloth, then obtain the pure oil.


1.The oil press machine shall be installed in the big space, shall have enough space for staff to operate and work.oil pure automatic sunflower peanut seeds screw oil press machine
2. Firstly, put the oil press machine on the horizontal place, and then adjust the oil filter to the level of state.oil pure automatic sunflower peanut seeds screw oil press machine3. After the installation of the oil press machine, make the 0.5-1m ground wire away from the machine 3 – 5m and then can be started to work.

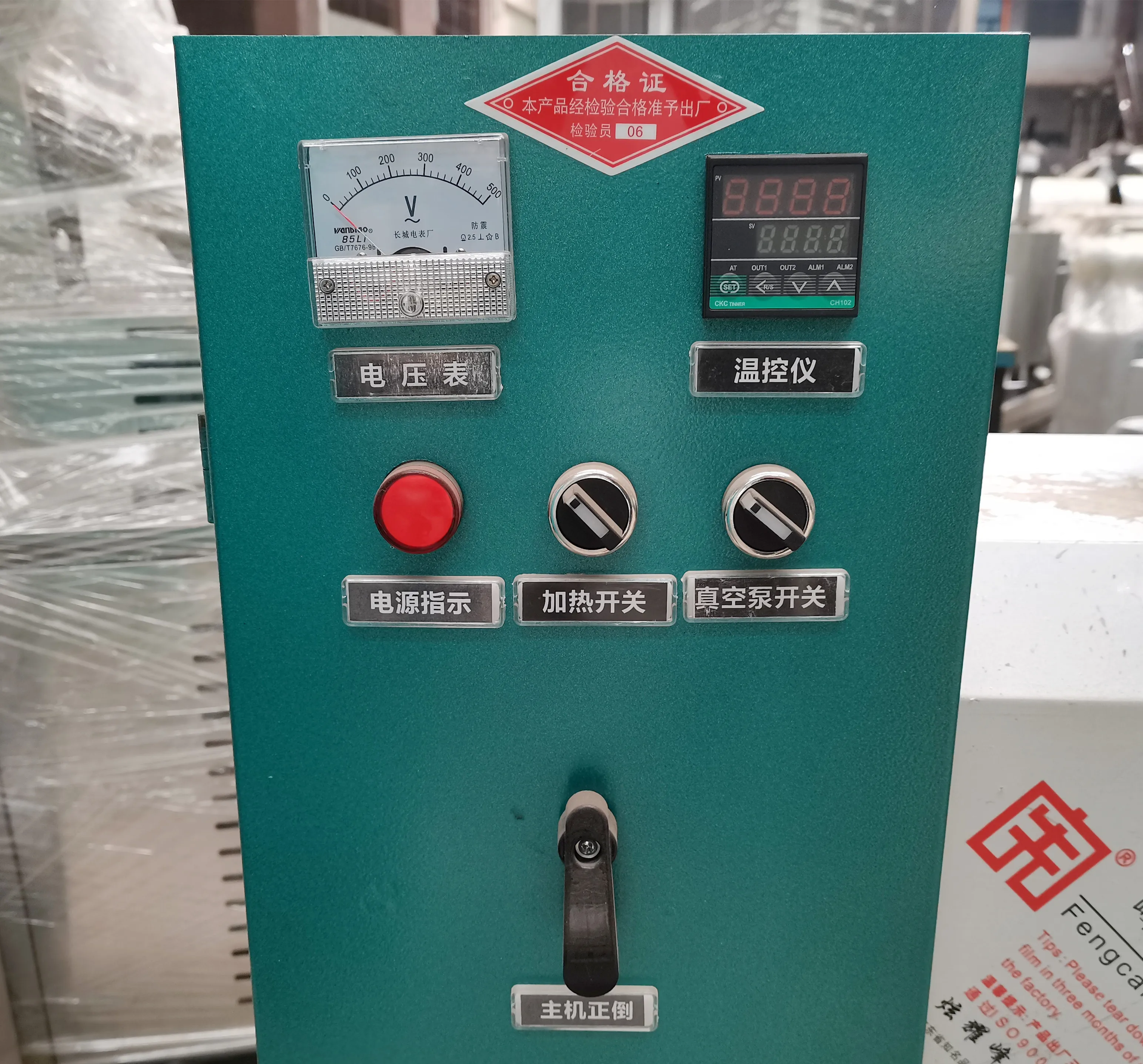

The control panel

Squeeze screw

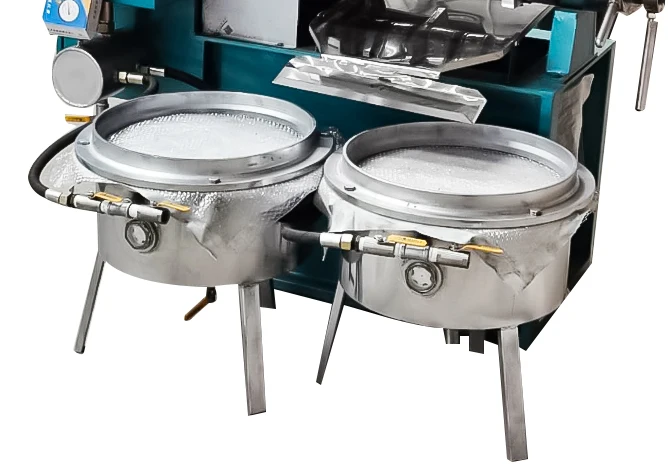

Vacuum oil filter

Our Company

Hongde Grain And Oil Machinery Co., Ltd. mainly sells oil equipment ,garbage disposal equipment ,copper wire recycling machine,charcoal machine, mineral processing equipment, , wood processing equipment etc ,welcome to inquiry!

Packing & Delivery

Packing and Delivery

(1)Simple packaging.Other in wooden boxes;
(2)Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment
(4)Once the product is sold, if it is not a product quality problem, it cannot be returned or refundedoil pure automatic sunflower peanut seeds screw oil press machine


What does need from me to quote a price?
1.Raw Materialoil pure automatic sunflower peanut seeds screw oil press machine
2.Production capacity per batch.
What is the oil yield?oil pure automatic sunflower peanut seeds screw oil press machine
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil. The oil residual of our smallsesame/coconut/olive cold press oil making machine/hydraulic oil press machine for sale is 1% Can I use the machine to extract several kinds of Raw Materials?Yes,of course. such as sesame, sunflwoer seeds, soybean, peanunt, coconut, etc
Can I do extraction test with my own Raw Material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
What is your material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304,it can be customized according to your request)
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 5 working days after prepayment received.
What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you a discount.
How will my order be packed, can you provide the installation service?
Packed in plywood case.We will send English manual.
