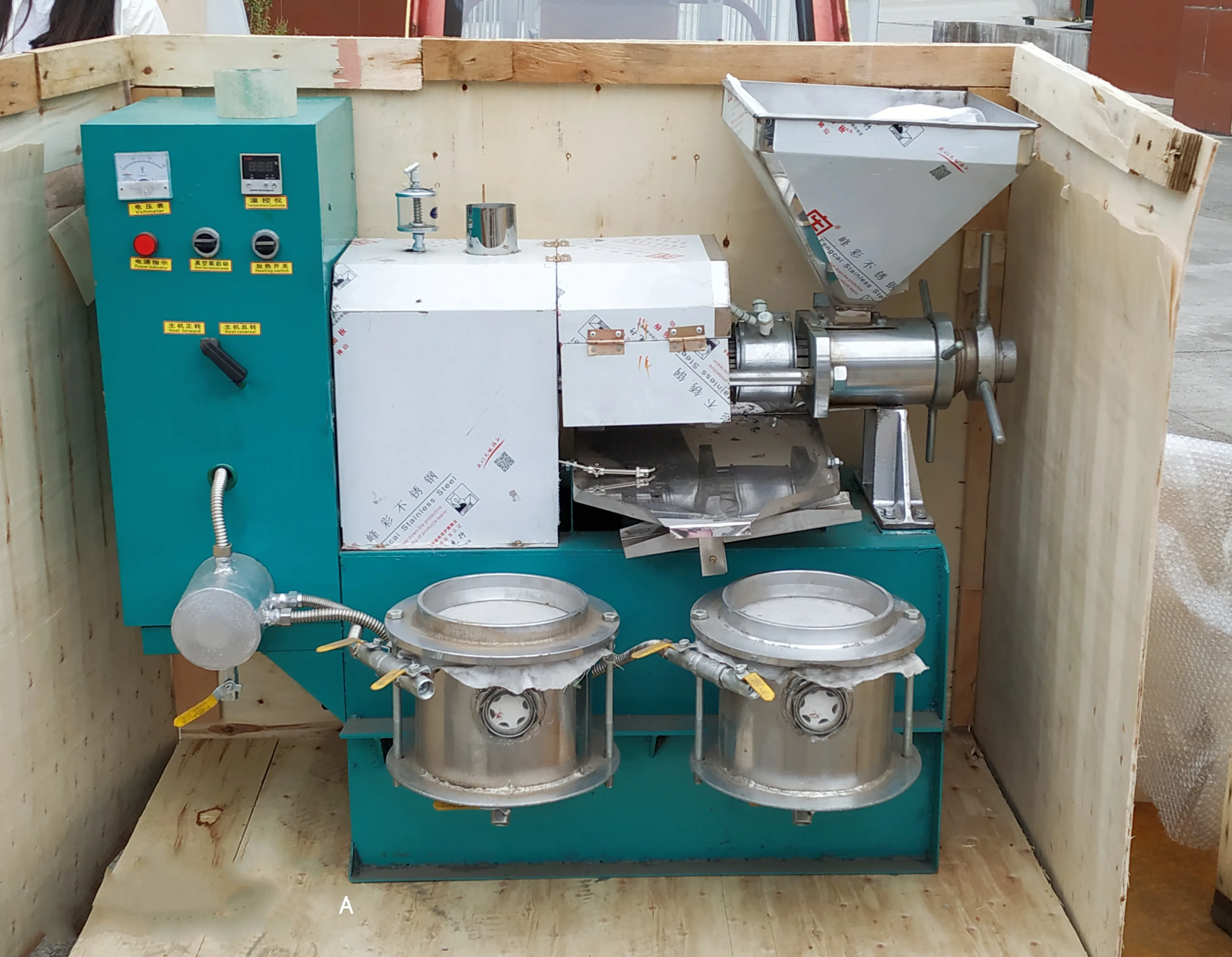

Multi-function Seeds Olive Spiral Screw Oil Press Machine
Multi-function Seeds Olive Spiral Screw Oil Press Machine is a compact-structured oil extrusion machine used for extracting edible oil from more than twenty kinds of oilseeds such as peanut, soybean, flaxseed, sunflower seed, rapeseed, etc. Different from integrated screw oil press machine, it is more suitable to large-scale cooking oil plants which produce various grades cooking oil. It features high edible oil output, qualified cooking oil, and continuous operation.
- Applicable Industries:
Restaurant, Home Use, Food Shop
- Showroom Location:
Cold & Hot Pressing Machine
- Automatic Grade:
- Production Capacity:
- Product Market:
Africa, Southease Asia
1 Year, 1year
- Key Selling Points:
- Marketing Type:
New Product 2022
- Machinery Test Report:
- Video outgoing-inspection:
- Warranty of core components:
- Core Components:
- Oil type:
Soybean Oil, SESAME OIL, sunflower seed oil, Peanut Oil, Coconut Oil, OLIVE OIL, Palm Oil
- Max Capacity:
- Product name:
multi-function seeds olive spiral screw oil press machine
- Raw Material:
Soybean Peanut Sesame
oil press machine with filter
- Press type:
Screw Oil Press
Multi-function seeds olive spiral screw oil press machine
Screw expeller pressing is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of screw oil expeller, they have similar theories in screw expeller pressing. Because the screw type seed oil expeller is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
Mx-80, MX-100 oil press is one of the commonly used oil press models, with less investment, simple supporting, easy maintenance, strong adaptability and other characteristics, for medium and small oil plants and township individual enterprises are very suitable.High oil press: 100kg peanut =22kg oil
Energy efficient: same capacity can save 40%
Save Work: one machine need one person
High oil pure rates: Vacuum filter
Small space: 10-20 square meter
multi-function seeds home spiral screw oil press machine
|Screw speed||47 r/min||38 r/min|
|Product capacity||120 kg/h||200 kg/h|
|Weight||780 kg||1100 kg|
Application scope: multi-function seeds olive spiral screw oil press machine
The screw oil press machine is our new and original product, it is suitable for cold pressing and hot pressing of anything containing oil,such as olives, sesame, peanut kernel,walnut Kernel,Chili oil etc.It saves more space than traditional oil press and can be operated easily and conveniently. What’s more, it is multi-functional. multi-function seeds home spiral screw oil press machine
Characteristics1.Characteried by simple design, easy to operate and maintenance
2.Cast iron machine base
3.High productivity,energy saving and labour saving
4.Special gear box structure make the rotating speed averagely
5.Compact structure, stable functions
6.Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
7.Compact structure, stable function.
Structure: multi-function seeds home spiral screw oil press machine
1.This machine is mainly composed of five parts: the electric control part, the heating and pressing part, the adjusting part, the transmission part and the vacuum filter oil.
2.The electric control part is composed of air switch, AC contactor, temperature control instrument, circuit automatic protection device.
3.The heating and pressing part is composed of a heater, a pressing screw, a machine body device, etc. multi-function seeds home spiral screw oil press machine
4.The transmission part is composed of the main shaft and the gear box, the pulley, the motor wheel etc.. multi-function seeds home spiral screw oil press machine
5.The speed adjusting part is composed of an adjusting screw, a regulating nut, a handle and a locking nut etc..
6.The vacuum filter oil part is composed of the vacuum pump, oil filter tube line and other assembly components.
1.The oil press machine shall be installed in the big space, shall have enough space for staff to operate and work. multi-function seeds home spiral screw oil press machine
2.Firstly, put the oil press machine on the horizontal place, and then adjust the oil filter to the level of state. multi-function seeds home spiral screw oil press machine
3.After the installation of the oil press machine, make the 0.5-1m ground wire away from the machine 3 – 5m and then can be started to work.
Henan Hongde Grain And Oil Machinery Co., Ltd. Machinery Co., ltd. is a company that integrates science, industry and trade. The company mainly sells mechanical equipment and accessories, pipeline equipment, refractory materials, abrasive materials, water purification equipment, wire and cable. Our company follows the human-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We have always regarded the technology as the motive force, the market as the orientation to make the products first-class.Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
1. 24 hours all day service, tel/whatsapp/wechat: 86 15896551596
2. Can be customized according to customer needs.
3. Check again before we send the goods.
4. Send the goods on time. multi-function seeds home spiral screw oil press machine
5.One year warranty from the date of receiving.
6. We can test the machine before we send it if the client need.
7. The more you need, the cheaper the unit price is.
8. Help the client with the shipment multi-function seeds home spiral screw oil press machine
Packing and Delivery
(1) simple packaging.Other in wooden boxes;
(2)Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment
(4)Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded
What does need from me to quote a price?
1.Raw Material multi-function seeds home spiral screw oil press machine
2.Production capacity per batch.
What is the oil yield? multi-function seeds home spiral screw oil press machine
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil. The oil residual of our smallsesame/coconut/olive cold press oil making machine/hydraulic oil press machine for sale is 1% Can I use the machine to extract several kinds of Raw Materials?Yes,of course. such as sesame, sunflwoer seeds, soybean, peanunt, coconut, etc
Can I do extraction test with my own Raw Material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
What is your material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304,it can be customized according to your request)
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 5 working days after prepayment received.
What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you a discount.
How will my order be packed, can you provide the installation service?
Packed in plywood case.We will send English manual.
