Auto High Oil Rate Seeds Screw Oil Press Machine For Factories And Oil Mill

Auto High Oil Rate Seeds Screw Oil Press Machine For Factories And Oil Mill is a compact-structured oil extrusion machine used for extracting edible oil from more than twenty kinds of oilseeds such as peanut, soybean, flaxseed, sunflower seed, rapeseed, etc. Different from integrated screw oil press machine, it is more suitable to large-scale cooking oil plants which produce various grades cooking oil. It features high edible oil output, qualified cooking oil, and continuous operation.

SEND INQUIRY NOW

auto high oil rate seeds screw oil press machine for factories and oil mill

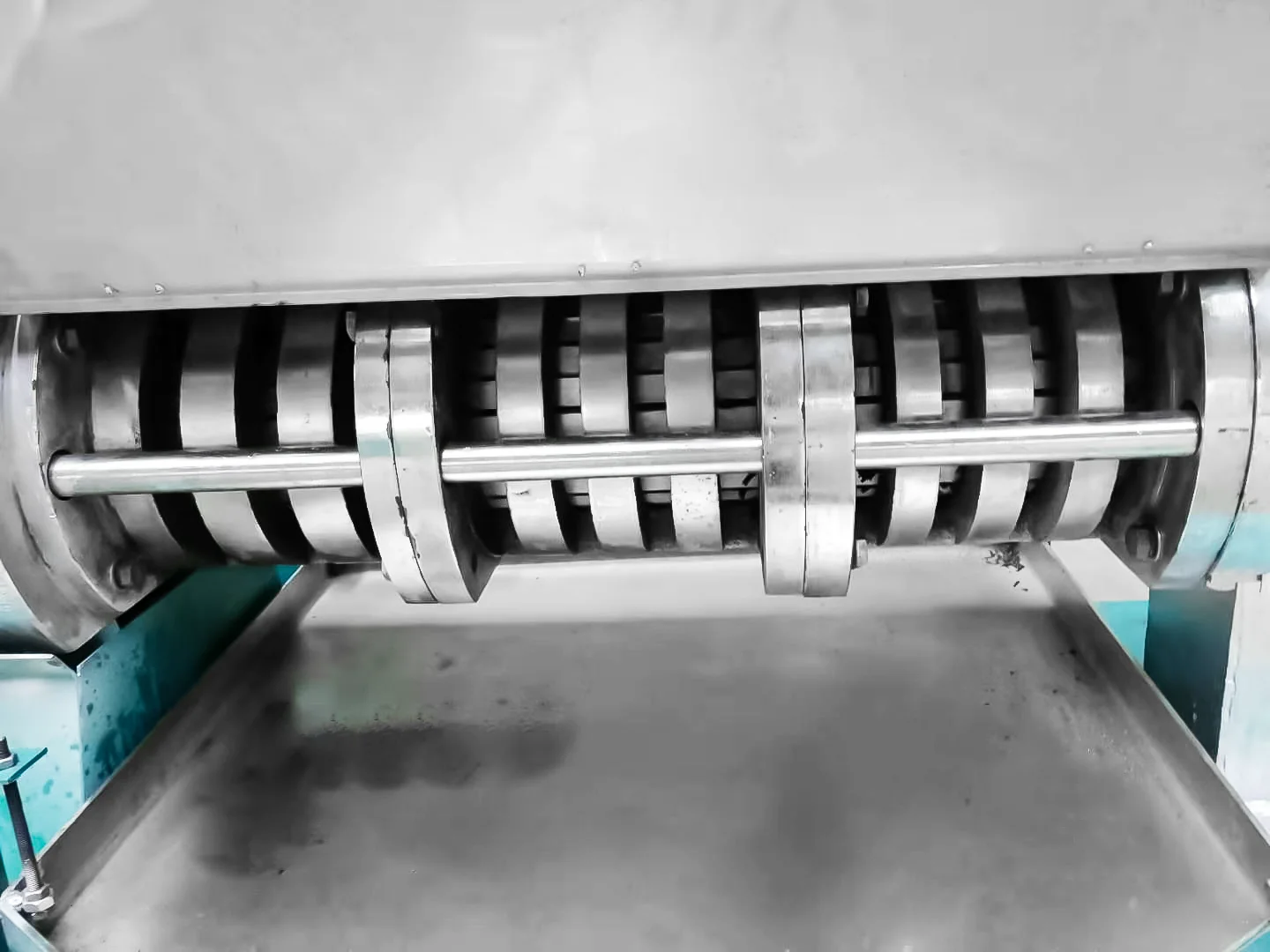

Screw expeller pressing is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of screw oil expeller, they have similar theories in screw expeller pressing. Because the screw type seed oil expeller is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.

MX-70 MX-80

MX-100 MX-125 MX-150

Usage Method

High oil press: 100kg peanut =22kg oil
Energy efficient: same capacity can save 40%
Save Work: one machine need one person
Multifunction: Raw Material can use peanut, sesame, soybean, vegetable seed, oil sunflower, cottonseed, flax, walnut, olive etc (nearly exceed 30 kinds oil crop)
High oil pure rates: Vacuum filter
Small space: 10-20 square meter

Installation:

1.The oil press machine shall be installed in the big space, shall have enough space for staff to operate and work.
2.Firstly, put the oil press machine on the horizontal place, and then adjust the oil filter to the level of state.auto high oil rate seeds screw oil press machine for factories and oil mill
3.After the installation of the oil press machine, make the 0.5-1m ground wire away from the machine 3 – 5m and then can be started to work.

Opration and use:

1.Before starting the machine, you must firstly maker a comprehensive inspection, not loose fasteners, flexible rotation of the handle, hand rotating pulley, all moving parts should be normal, no abnormal noise, then replenish #20 machine oil to the gearbox.2.Before starting the machine, you must firstly maker a comprehensive inspection, not loose fasteners, flexible rotation of the handle, hand rotating pulley, all moving parts should be normal, no abnormal noise, then replenish #20 machine oil to the gearbox.3.Before starting the machine, you must firstly maker a comprehensive inspection, not loose fasteners, flexible rotation of the handle, hand rotating pulley, all moving parts should be normal, no abnormal noise, then replenish #20 machine oil to the gearbox.4.Adjust the temperature 150-200°C (according to oil material to be set) required by the machine through the temperature control instrument, twisting the total heating switch to the machine heating, then the green light is on and the red light is off; when the machine temperature rises to the set temperature, the red light is on and the green light if off. The temperature of the machine is automatically controlled and maintained at the set temperature.Press the forward button of the host, the host running. The rotation direction of the spiral shaft should be rotated counter clockwise. 5.Before stop the machine, stop feeding, and loose the cake mouth gap, and then put a small amount of cake crumbs. When the remaining material in the pressing chamber is discharged clearly, and the cake mouth is no longer out of the cake, then can be shutdown. After shutdown, will adjust screw clockwise rotation 1-3 rings, and then cut off the power.

Our Company

Our Service

1. 24 hours all day service, tel/whatsapp/wechat: 86 15896551596
2. Can be customized according to customer needs.
3. Check again before we send the goods.
4. Send the goods on time.auto high oil rate seeds screw oil press machine for factories and oil mill
5.One year warranty from the date of receiving.
6. We can test the machine before we send it if the client need.
7. The more you need, the cheaper the unit price is.
8. Help the client with the shipment

Package&Delivery

Packing and Delivery

(1) simple packaging.Other in wooden boxes;
(2) Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment
(4）Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded

FAQ

What does need from me to quote a price?
1.Raw Materialauto high oil rate seeds screw oil press machine for factories and oil mill
2.Production capacity per batch.
What is the oil yield?auto high oil rate seeds screw oil press machine for factories and oil mill
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil. The oil residual of our smallsesame/coconut/olive cold press oil making machine/hydraulic oil press machine for sale is 1% Can I use the machine to extract several kinds of Raw Materials?Yes,of course. such as sesame, sunflwoer seeds, soybean, peanunt, coconut, etc
Can I do extraction test with my own Raw Material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
What is your material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304,it can be customized according to your request)
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 5 working days after prepayment received.
What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you a discount.
How will my order be packed, can you provide the installation service?
Packed in plywood case.We will send English manual.
