Cooking Oil Processing Equipment Hydraulic Screw Cold And Hot Oil Press Machine
Cooking Oil Processing Equipment Hydraulic Screw Cold And Hot Oil Press Machine is a compact-structured oil extrusion machine used for extracting edible oil from more than twenty kinds of oilseeds such as peanut, soybean, flaxseed, sunflower seed, rapeseed, etc. Different from integrated screw oil press machine, it is more suitable to large-scale cooking oil plants which produce various grades cooking oil. It features high edible oil output, qualified cooking oil, and continuous operation.
- Applicable Industries:
-
Manufacturing Plant, Farms, Home Use, Retail, Food Shop, Oil Pressers
- Showroom Location:
-
India, Colombia
- Condition:
-
New
- Usage:
-
Making Edible Oil
- Type:
-
Cold & Hot Pressing Machine
- Automatic Grade:
-
Automatic
- Production Capacity:
-
4-23 kg/batch
- Product Market:
-
Africa, Southease Asia
- Voltage:
-
380V
- Dimension(L*W*H):
-
600*880*1150(mm)
- Weight:
-
590kg
- Warranty:
-
1 Year
- Key Selling Points:
-
High Oil Yield & Manufacturer
- Marketing Type:
-
Hot Sale
- Machinery Test Report:
-
Yes
- Video outgoing-inspection:
-
Yes
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Hydraulic system
- Product name:
-
Hydraulic Screw Cold and Hot Oil press machine
- Advantage:
-
High Oil Yield
- Used for:
-
Edible Oil Making
- Raw Material:
-
Sesame,walnuts,corn,nuts,avocado,olive,cocoa……
- Material:
-
Alloy
- Application:
-
Oil Production Line
- Oil rate:
-
97%
- Keyword 1:
-
oil making machine
- Keyword 2:
-
cooking oil processing machine
- Hs code:
-
8479200000
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
-
India, Colombia
- After-sales Service Provided:
-
Field maintenance and repair service, Video technical support, Online support
- Certification:
-
ISO CE
Cooking oil processing equipment Hydraulic Screw Cold and Hot Oil press machine
PRODUCTS DESCRIPTION
| Product Name | Cooking oil processing equipment Hydraulic Screw Cold and Hot Oilpress machine | |
| Function | Pressing oil, making edible oil | |
| Features | Cold and Hot press | |
| Advantage | 60MPa High working pressure | |
| Factory price, all can be customized. | ||
| Parameters Table | ||||||||||||||
| 6YY-185 | 4 | 60 MPa | 1.1kw | 380V | 590 | 185mm | ≤5% | |||||||
| 6YY-230A | 8.5 | 60 MPa | 1.1kw | 380V | 924 | 230mm | ≤5% | |||||||
| 6YY-230B | 9.5 | 60 MPa | 1.1kw | 380V | 950 | 230mm | ≤5% | |||||||
| 6YY-250 | 11 | 60 MPa | 1.1kw | 380V | 1070 | 250mm | ≤5% | |||||||
| 6YY-270 | 13.5 | 60 MPa | 2.2kw | 380V | 1230 | 270mm | ≤5% | |||||||
| 6YY-300 | 16 | 60 MPa | 2.2kw | 380V | 1600 | 300mm | ≤5% | |||||||
| 6YY-335 | 20 | 60 MPa | 2.2kw | 380V | 1750 | 335mm | ≤5% | |||||||
| 6YY-355 | 23 | 60 MPa | 3.0kw | 380V | 2350 | 355mm | ≤5% | |||||||
| There are different can meet your demands, the customization also can be accepted. | ||||||||||||||
Raw Material
Cooking oil processing equipment Hydraulic Screw Cold and Hot Oil press machine is suitable for the pressing of various materials: sesame, walnut, chestnut, cashew, pine nuts, baobab seed, cocoa butter, Argan nuts, avocados, olives, grape seeds, camellia seeds, prickly pear seeds etc.
The Motor offers power to Hydraulic Box to squeeze the kinds of materials up and down in the kettle, through the Control System control the working pressure and temperature, stop working when the pressure over the set point(60mpa) automatically, when the pressure reduces to about 50mpa the machine will work again, this cyclic processing can squeeze materials roundly and improve the oil yield.Main Features:Green health & Energy saving & Save labor and long life & High oil recoveryWidely used & Small footprint & Quick cost recovery
Oil cake can be reused:1.Making pastries, snacks and etc.
2.As fertilizer to grow vegetables or fertilize flowers.
3.As feeds, the oil cake is rich in protein which is the main ingredient of the feed.
Click here to get more suggestions!
Why Choose Us
Introducing Korea’s advanced manufacturing technology, ingenuity to create outstanding products. High oil output, edible oil qualityHigh work efficiency, great benefits and fast cost recovery.

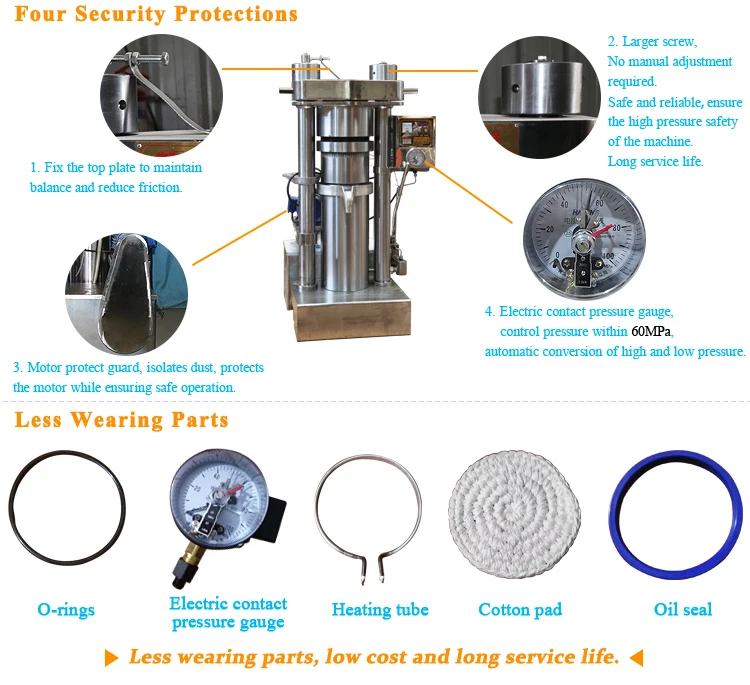

1. Pressing KettlePrecision oil line, just 0.36mm, filtering residues, the finally oil can reach to the cooking grade directly, the oil is clear and edible.
High quality steel and special heating treatment make it stronger enough and safety.
2. Electric control panelInternal temperature control parts to solve the problem of low oil yield in winter (the normal of machine’s oil yield will be lower in winter).
Can continuously squeeze a variety of granular oil crops and achieve fully product automatically.
(3). Years of experience, dedicated service Perfect packaging, after-sales, strong manufacturers, best assured quality.
Focus on oil press machine industry for 22 years, offer you the latest market quotation and perfect solutions.
