Applicable Industries:
Home Use, Food & Beverage Shops
Showroom Location:
Philippines, Indonesia, Pakistan, Mexico, Russia, South Korea, South Africa, Nigeria, Uzbekistan, Tajikistan
Peanut Oil, seeds oil press
Cold & Hot Pressing Machine
Automatic Grade:
Production Capacity:
Product Market:
Africa, Southease Asia
Brand Name:
1500 KG
1 Year
Key Selling Points:
High Productivity
Marketing Type:
New Product 2020
Machinery Test Report:
Video outgoing-inspection:
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump
Oil type:
sunflower seed oil, Peanut Oil, Coconut Oil
Max Capacity:
1000 kg/h
Product name:
Oli Press Machine
Keyword 1:
low price palm oil making machine
Keyword 2:
screw groundnut oil machines
Raw Material:
A variety of oil seeds
Customers’ Requirements
High Level
Simple Operation

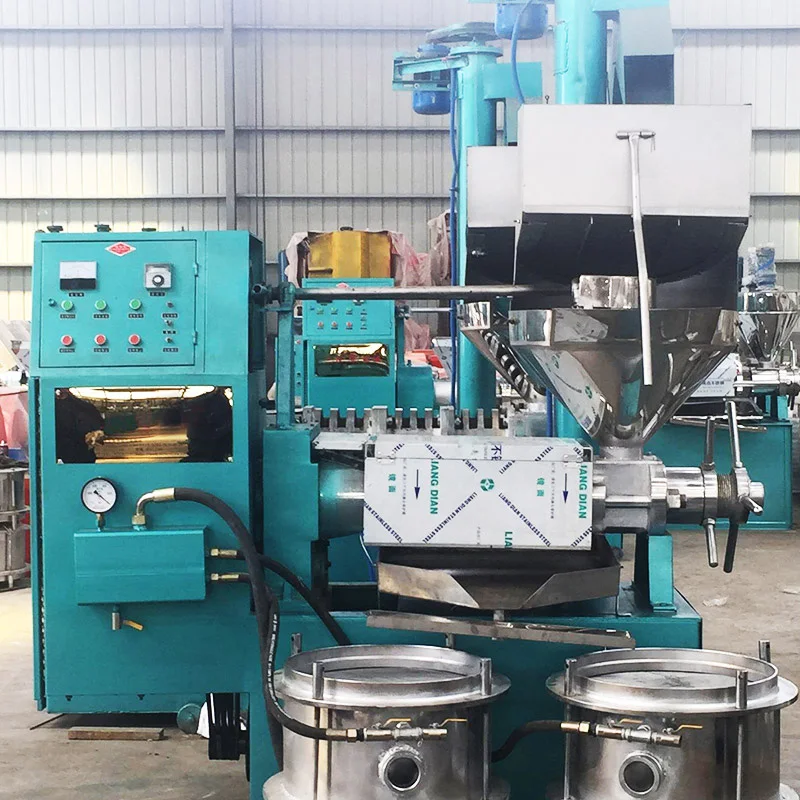

Mini Organic Oil Press Machine
is made of high carbon steel with high-frequency quenching and heat-resistant treatment. Therefore, this machine has high hardness, high strength, good wear resistance, can adapt to high temperature and high pressure continuous operation.
Each machine is made under strict quality control, will be tested before shipping.This Screw Oil Press Machine is mainly used for the individual processing of oil press. This product belongs to a kind of hydraulic automatic oil press.

It adopts vacuum filter, has automatic temperature control function. The pressed oil is of high quality and high output. And the normal rate can be two to three percentage points higher than that of older equipment. Almost all oil crops can be squeezed by the Screw Oil Press Machine, including peanuts, soybeans, oilseeds, rapeseed, walnuts, cottonseed, etc.

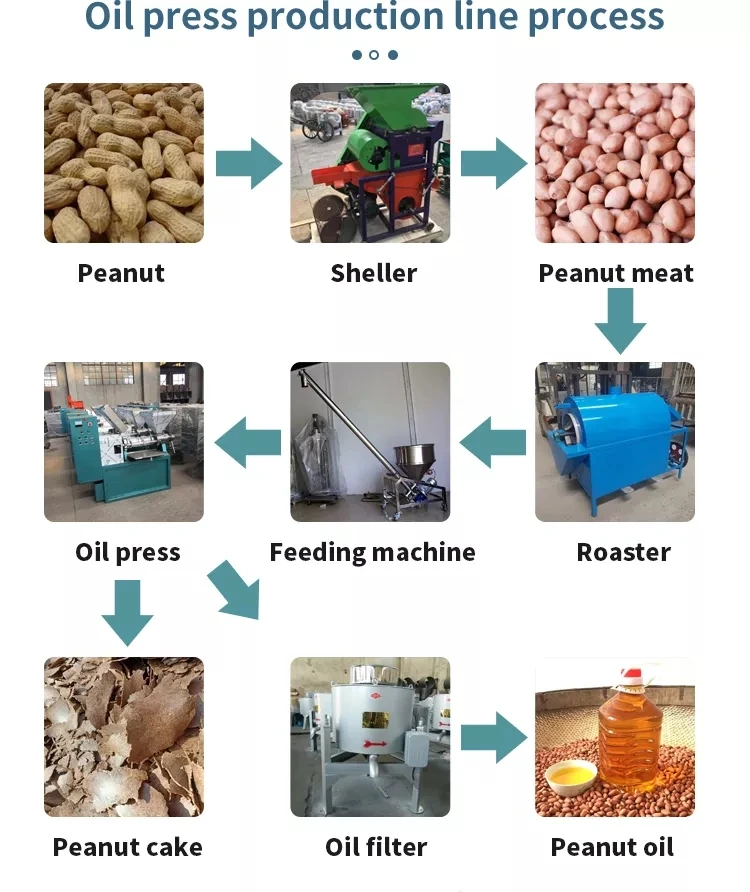

Working Process


Working Principle

is that the rotating screw axis pushes the press forward continuously. At the same time, because the screw pitch of the screw axis is shortened, the diameter of the root circle is increased, and the inner diameter of the press chamber is reduced, the space volume of the press chamber is reduced and the squeezing effect is produced. The squeezing material is extruded through the oil chamber, screw and oil cake, and the oil is extruded from the gap of the squeezing cage. At the same time, the squeezing material is pressed into a cake and discharged from the end of the squeezing chamber.


Suitable seeds for Almond oil extraction machine and almond oil making machine and almond oil press machine Our Almond oil extraction machine and almond oil making machine and almond oil press machine suitable to most Raw Materials such as sesame, peanut, corn germ, coconut, palm kernel, soybean, etc.


Model SLX-70 SLX-100 SLX-125
Screw Diameter Φ70mm Φ100mm Φ125mm
Screw Speed 38r/min 37r/min 38r/min
Motor Main Device 3kw 7.5kw 15kw
Vacuum Pump 0.75kw 1.1kw 2.2kw
Product Capacity 45-70kg/h 150-230kg/h 300-400kg/h
Weight 320kg 1100kg 1500kg
Dimension 1450x870x1180mm 1800x1200x1500mm 2300x1300x2200mm
Other models can be customized

Main Advantage

1. High oil yield, small space occupied and low expense on equipment and electriciy.
2. Multi-functional used for pressing various of oil crops.
3. Simple operation and stable production performance.
4. Various machine models for options according to the capacity.
5. Widely used by small workshop and factories and hot selling at home and abroad.

Packing & Delivery

Packing: The normal package is wooden box(Size: L*W*H). If export to others countries, the wooden box will be fumigated. If container is too higher, we will use be film for packing or pack it according to customers special request.

Delivery: Delivery within 15 days after payment of deposit.

Customer Site

Hot Selling Countries: the United States, Australia, Bangiadesh, Cambodia, Vietnam, Thailand, Angola, Sudan, Saudi, Arabia, Russia, Brazil, Venezuels, New Zealand, indonesia, Timor-Leste, Tanzania, Malaysis, Mauritania, Kenya, the Philippin, etc.

Mini Organic Oil Press Machine For Home Low Price Palm Oil Making Machine Screw Groundnut Oil Machines
