Automatic Oil Press Machine Price Screw Press Oil Machine Coconut Oil Press Extraction Extracting Machine
Automatic Oil Press Machine Price Screw Press Oil Machine Coconut Oil Press Extraction Extracting Machine is a compact-structured oil extrusion machine used for extracting edible oil from more than twenty kinds of oilseeds such as peanut, soybean, flaxseed, sunflower seed, rapeseed, etc. Different from integrated screw oil press machine, it is more suitable to large-scale cooking oil plants which produce various grades cooking oil. It features high edible oil output, qualified cooking oil, and continuous operation.
- Applicable Industries:
-
Manufacturing Plant, Farms, Restaurant, Home Use, Other
- Showroom Location:
-
None
- Condition:
-
New
- Usage:
-
SUNFLOWER OIL
- Type:
-
Cold & Hot Pressing Machine
- Automatic Grade:
-
Automatic
- Production Capacity:
-
180-260kg/h
- Product Market:
-
Africa, Southease Asia
- Brand Name:
-
SUPERB
- Voltage:
-
220V/380v
- Dimension(L*W*H):
-
2130*1050*2850mm
- Weight:
-
1480 KG
- Warranty:
-
1 Year
- Key Selling Points:
-
High Productivity
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Other
- Oil type:
-
Flax Seed Oil, Soybean Oil, Rap seed oil, Tea Seed Oil, Basil oil, SESAME OIL, Pinenut oil, sunflower seed oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil, OLIVE OIL, Palm Oil
- Max Capacity:
-
1000 kg/h
- Raw Material:
-
coconut oil
- Product name:
-
Oil Press Machine
- Advantage:
-
High Oil Yield
- Keyword:
-
Industrial Cooking Oil Making Machine
- Function:
-
Press Oil Seeds
- After-sales Service Provided:
-
24 Hours Online Support
- Color:
-
Customers’ Requirements
- MOQ:
-
1 Set
- Method to press:
-
Screw Squeezed Press
- Quality:
-
High Level
Product Details
Brief introduction of screw oil press
Our products have higher quality requirements, all electrical appliances are made of Delixi electric appliances, the motors are made of copper core motors from large factories, the gearbox gears are made of hot forging parts, the bearings are made of national standard bearings of Luoyang No.3 , to guarantee to all customers not less than 400,000 catties of output.

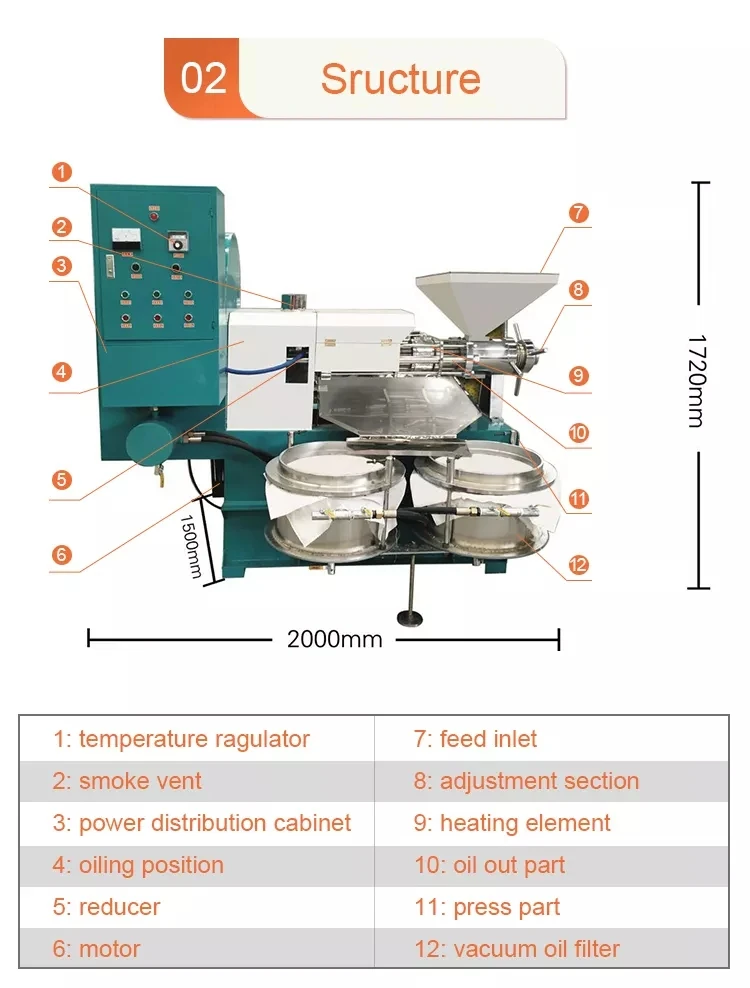

structure

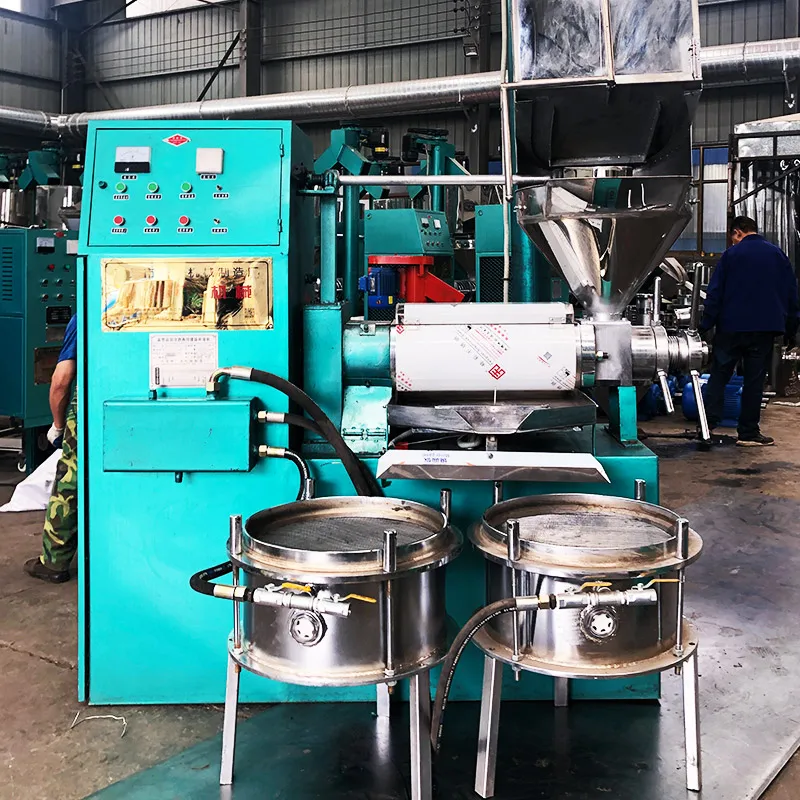

Detail image
Technical Parameter
| Model | SLX-70 | SLX-100 | SLX-125 | SLX-125B | SLX-130 | SLX-150 | ||
| Screw Diameter | Φ70mm | Φ100mm | Φ125mm | Φ125mm | Φ130mm | Φ150mm | ||
| Screw Speed | 38r/min | 37r/min | 38r/min | 38r/min | 85r/min | 74r/min | ||
| Motor | Main Device | 3kw | 7.5kw | 15kw | 15kw | 22kw | 26kw | |
| Vacuum Pump | 0.75kw | 1.1kw | 2.2kw | 1.5kw | 2.2kw | 2.2kw | ||
| Product Capacity | 45-70kg/h | 150-230kg/h | 300-400kg/h | 80-140kg/h | 180-260kg/h | 200-380kg/h | ||
| Weight | 320kg | 1100kg | 1500kg | 1100kg | 1480kg | 1680kg | ||
| Dimension | 1450x870x1180mm | 1800x1200x1500mm | 2300x1300x2200mm | 1950x1050x2750mm | 2130x1050x2850mm | 2430x1250x2850mm | ||
Raw Material
Packaging & Delivery
packing and delivery of Automatic Screw Oil Press Machine
(1) simple packaging.Other in wooden boxes;
(2) Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment
(4)Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded
