Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Showroom Location:
Egypt, Turkey, Italy, Philippines, Indonesia, Pakistan, Russia, Argentina, Chile, Egypt, Canada, Turkey, United Kingdom, United States…
Peanut Oil, olive/peanut/coconut/sesame
Seed Roaster
Automatic Grade:
Production Capacity:
Product Market:
Africa, Southease Asia
Brand Name:
1800*1200*1500 mm,
1100 KG
2 years
Key Selling Points:
Easy to Operate
Marketing Type:
Ordinary Product
Machinery Test Report:
Video outgoing-inspection:
Warranty of core components:
1 Year
Core Components:
Oil type:
Soybean Oil, Rap seed oil, Tea Seed Oil, Basil oil, SESAME OIL, Almond Oil, walnut oil, Peanut Oil, Coconut Oil
Max Capacity:
150 kg/h
Customers’ Drawings
Customer’s Request
Delivery time:
7-30 Days
After-sales Service:
High Efficiency
Oil Production Line
Press Oil Seeds
High Oil Yield Efficiency

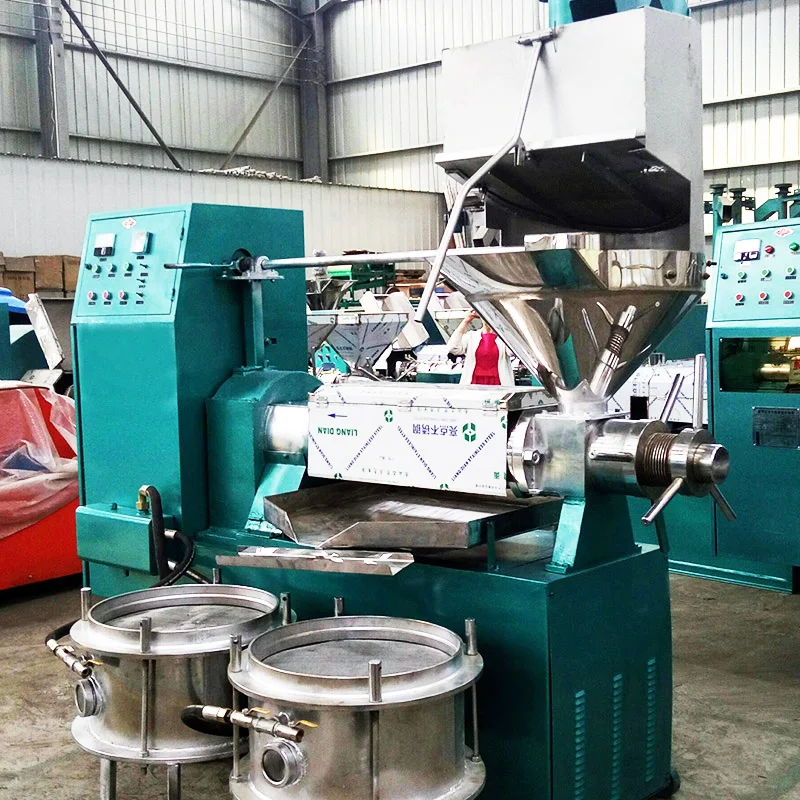

Oil press machine

This oil press machine can press all kinds of material including peanuts, sesame, soybean, rape seeds, coconut, sunflower seeds and other many kinds of nuts oil materials.It not only can start hot pressing but also cold pressing which is the most optimal equipment for individual processing. Screw type press are advanced oil processing machinery, characterized by their simple design, easy to use, wide suitability and continuous operation; and high productivity and high oil output rate.

Working Principle

After the power is decelerated, it is transmitted to the main shaft. With the rotation of the pressing screw installed on the main shaft, the oil between the threads is continuously pushed forward. Because the space between the pressing chamber and the pressing screw is gradually reduced, the density of the oil is increased, so the pressure is gradually increased. In the process of pressing, because the machine is automatically heated by force, the temperature of the main engine of the machine body is increased through the automatic temperature control device, so as to reduce the labor intensity, the wear of the machine body, save labor, power and time, and the friction between the oil particles and between the oil and parts produces heat. In this way, the pressure and heat of the oil extraction process are two major elements, which destroy the tissue cells of the oil, oil overflows from the oil line, and the cake is pushed out between the cake head and the cake mouth. When the spilled oil flows into the oil filtering barrel through the oil pan, the vacuum pump draws out the air in the barrel. When the negative pressure is formed in the barrel, the oil is pumped into the barrel through the filter cloth, and the oil residue is isolated on the filter cloth, then the pure oil is obtained.

Raw Materials

Mold Samples

Product Paramenters

Model SLX-70 SLX-100 SLX-125 SLX-125B SLX-130 SLX-150 SLX-200 SLX-600
Screw Diameter Φ70mm Φ100mm Φ125mm Φ125mm Φ130mm Φ150mm Φ200mm Φ600mm
Screw Speed 38r/min 37r/min 38r/min 38r/min 85r/min 74r/min 128r/min 43r/min
Motor Main Device 3kw 7.5kw 15kw 15kw 22kw 26kw 45kw 30kw
Vacuum Pump 0.75kw 1.1kw 2.2kw 1.5kw 2.2kw 2.2kw 3kw 3kw
Product Capacity 45-70kg/h 150-230kg/h 300-400kg/h 80-140kg/h 180-260kg/h 200-380kg/h 800-1000kg/h 1300-1400kg/h
Weight 320kg 1100kg 1500kg 1100kg 1480kg 1680kg 1800kg 1900kg
Dimension 1450x870x1180mm 1800x1200x1500mm 2300x1300x2200mm 1950x1050x2750mm 2130x1050x2850mm 2430x1250x2850mm 3100x2350x2850mm 3250x2160x2060mm
Other models can be customized


1. It has collected more advanced manufacturing technology of oil press machinery at home and abroad, all of which are made of national standard steel and spare parts, with the characteristics of compact design, thick and stable, convenient installation, durable, beautiful and generous. Its service life is more than three times that of other ordinary oil presses. It can be used for a long time through the supply of accessories from manufacturers.2. The function of automatic control of temperature rising of frying seeds and pressing chamber is added, which changes the traditional way of temperature rising of dry cake grinding and pressing, shortens the preparation time, reduces the energy consumption and the wear of the machine, and prolongs the service life of the machine. If the production is interrupted, the pressing chamber can also be automatically insulated, and the multi-stage pressure propulsion and reasonable filtering system are adopted to improve the oil pressing efficiency and oil quality. 3. All purpose press, one machine for multiple purposes. It can squeeze peanut, soybean, rapeseed, cottonseed, oil sunflower, tea seed, Tung seed, castor, almond, hemp seed, safflower oil seed and other oil crops. 4. It is universal in North and south, suitable for all seasons: because the oil pan device adopts the heating and temperature control system, it can automatically adjust the crude oil temperature according to the change of the ambient temperature, so as to achieve the effect of rapid fine filtration, so as to ensure the normal production under various climatic conditions.

Packing & Delivery

Packing is nude package or plastic according to customer need
1.The whole brick machine production line equipment is mainly the full container sea shipping.
2.Before shipment, the top paint of the brick machine equipment will be tested and cleaned up, and then another paint protection will be done.
3.Before shipment, it can be wrapped with plastic film according to customer needs, and the whole brick machine is wrapped to prevent water or moisture.
4.The brick machine is then loaded into the container by a crane or forklift.
5.When loading, the reinforcing ring and special equipment in the container are used to tighten the machine to prevent damage to the brick machine caused by transportation bumps.

Project Cases





Hot-sale in many countries: Zimbabwe, Mozambique, Zambia, South Africa, Kenya, Philippines, Indonesia, Vietnam, Uganda, Ethiopia, Tanzania, Peru, Mexico and so on.

Oil Press Machine Industrial 2022 Brand New Groundnut Cold Press Oil Making Machine Screw Oil Extracting Machine For Sale
