Automatic Seed Oil Pressing Machine Equipment Rapeseed Combined Oil Complete Production Line
So-called Automatic Seed Oil Pressing Machine Equipment Rapeseed Combined Oil Complete Production Lineconnects the oil manufacturing machine together and realize the continuous work. In general, it contains cleaning sieve, cooker, oil expeller, oil filter press. Sometimes, the shelling machine is needed. If the oil corps is peanut, melon seed, you should do the shelling process before you begin extraction process. And you can use this line to product almost any kind oil, including soybeans, peanuts, cotton seeds, sunflower seeds, sesame seeds, palm kernel, coconut etc.
- Applicable Industries:
-
Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Other, Edible Oil Refinery
- Showroom Location:
-
None
- Condition:
-
New
- Usage:
-
Peanut Oil
- Type:
-
Cold & Hot Pressing Machine
- Automatic Grade:
-
Automatic
- Voltage:
-
380V/50HZ
- Dimension(L*W*H):
-
5575*1806*2180(mm)
- Weight:
-
13500 KG
- Warranty:
-
1 Year
- Key Selling Points:
-
Automatic
- Marketing Type:
-
New Product 2022
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
More than 5 years
- Core Components:
-
Gearbox
- Oil type:
-
sunflower seed oil, Peanut Oil, cottonseed oil, rapeseed oil, tung seed, castor beans, rice bran, corn germ
- Max Capacity:
-
800 kg/h
- Product name:
-
ZY338
- Application:
-
Oil Production Line
- Capacity:
-
300-320T/D
- Oil rate:
-
14~18%
- Machinery type:
-
Automatic Screw Oil Mill Machine
- Power:
-
185kw
- Use for:
-
oil press
- Press type:
-
Screw Cold Hot Oil Press
- After-sales Service:
-
door to door
- Application range:
-
edible oil press

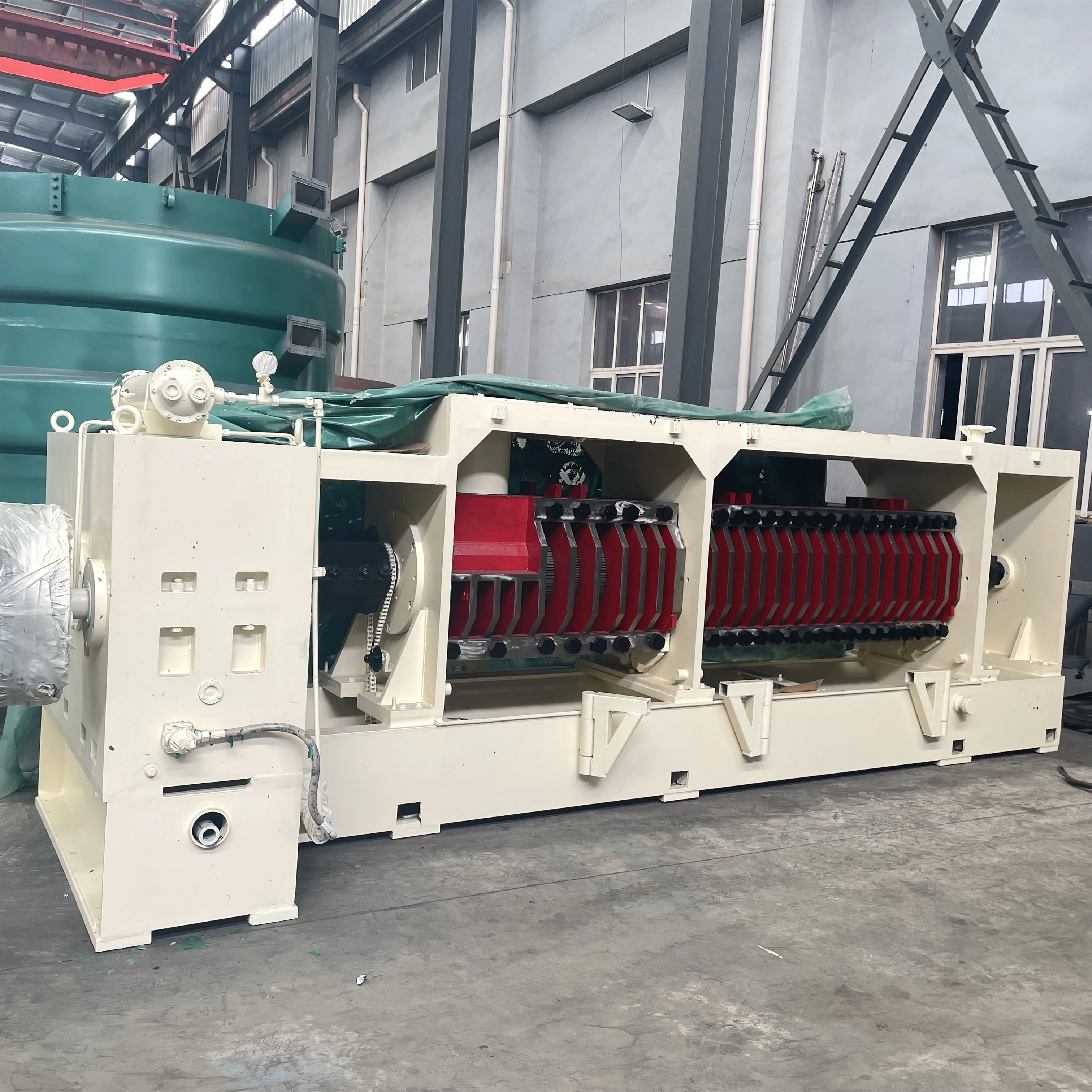

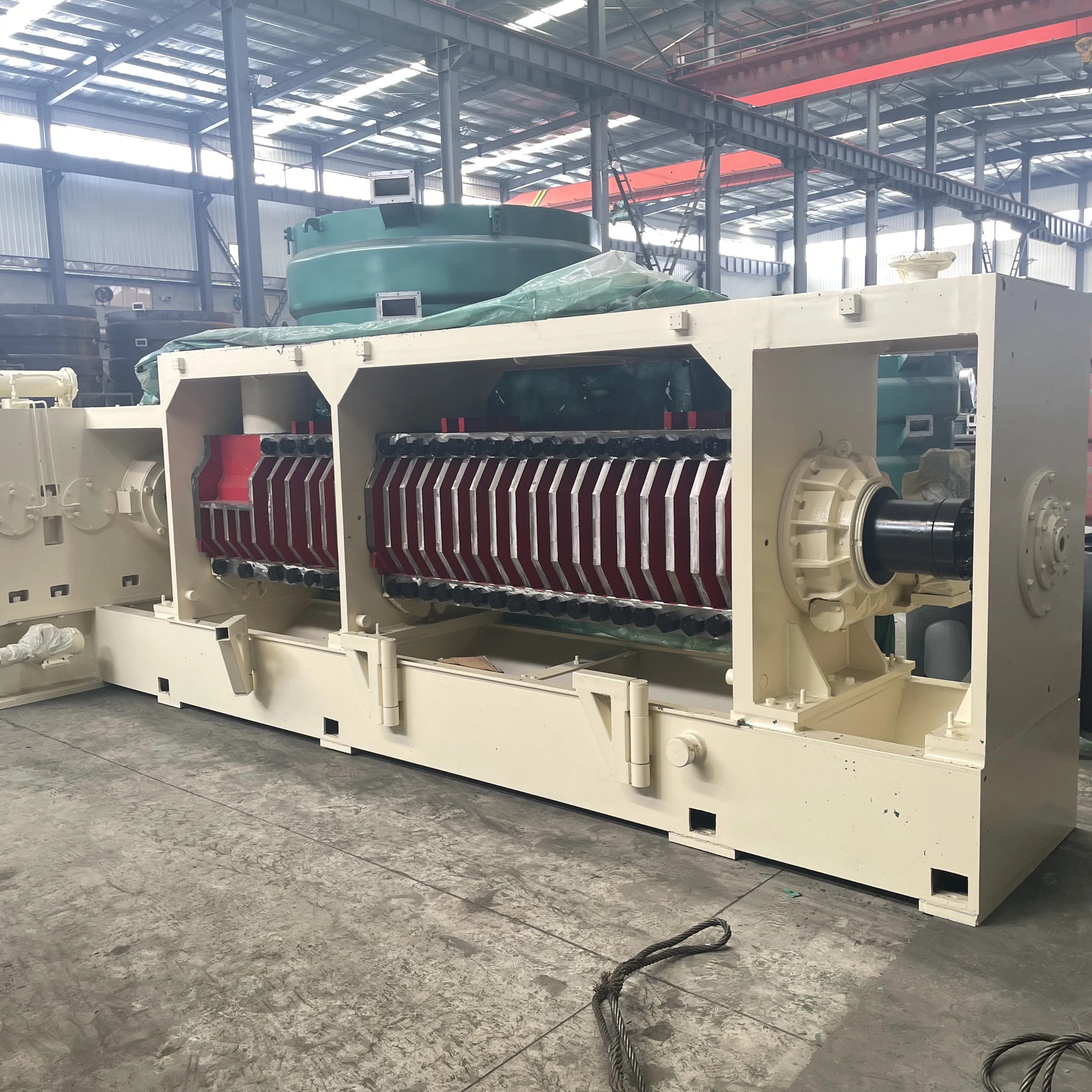

Model ZY338 screw oil press is one of the giant oil presses in our company,which is made according to the requirement of the oil and fat enterprise,and incorporate the advantage of the oil press form aboard and home.The equipment is widely used to press various oil seeds to produce oil.It also has the following advantages:high daily processing ability;wide applicability;low residual oil rate of cake;low energy consumption;small occupation area,convenient operation and maintenance.
Specification
| Type | Processing Capacity | Residual Oil Rate of Cake | Power Matching | Overall Dimension（L*W*H） | Weight |
| ZY338 | 300~320T/D | 14~18% | 185KW | 5575*1806*2180 | 8000Kg |
Our Advantages
1. Large processing capacity, small floor space, low power consumption, less operation management and maintenance work;
2. The screw press is designed with multi-stage pressing, and the pressure of the pressing chamber is large; the pressing cage is long, so that the material is fully pressed;
3. The structure of the pressed cake is in the shape of a block, and less dust is conducive to the penetration of the solvent;
4. The oil content of the pressed cake is low, which is suitable for solvent leaching or cake packing;5. Special physical structure is adopted between the screw press and the screw press, and the screw press is easy to disassemble.
