Cooking Crude Oil Machine Palm Oil Production Line Palm Oil Milling Line

So-called Cooking Crude Oil Machine Palm Oil Production Line Palm Oil Milling Lineconnects the oil manufacturing machine together and realize the continuous work. In general, it contains cleaning sieve, cooker, oil expeller, oil filter press. Sometimes, the shelling machine is needed. If the oil corps is peanut, melon seed, you should do the shelling process before you begin extraction process. And you can use this line to product almost any kind oil, including soybeans, peanuts, cotton seeds, sunflower seeds, sesame seeds, palm kernel, coconut etc.

SEND INQUIRY NOW

Cooking crude oil machine palm oil production line palm oil milling line

palm oil machine digester

Palm oil is a tropical woody vegetable oil. It is the largest variety of vegetable oil in the world in terms of production, consumption and international trade. Because of the particularity of oil palm fruit structure, its oil-making technology and equipment are quite different from other oils. The oil-making process of palm oil mainly includes the following parts: sterilization and fermentation, threshing, mashing and cooking, pressing oil, crude oil purification, oil storage, separation of kernels and fibrous substances, separation of kernels and kernels, and storage of kernels.

The production process of palm oil can be divided into four aspects: crude oil pressing, crude oil refining, palm kernel oil pressing and waste treatment. Its general production process is shown in the following figure:

Sterilizing: Sterilizing refers to cooking oil palm fruit in horizontal/vertical Sterilizer with 300 kPa steam at 145 ℃ for about 90-120 minutes. This can destroy the fatty acid enzymes in oil palm fruit and avoid the increase of FFA in oil. In addition, high-temperature fermentation can make the fruit soft, easy to mechanical threshing, conducive to subsequent peeling of the core, reduce the damage of the kernels.

palm oil milling line

Threshing: Oil palm grains accounted for about 67% of the weight of the whole bundle. The purpose of threshing is to separate the oil palm fruit from the bundle and make the subsequent oil pressing more efficient. We usually use the Thresher to shake off the threshing work.

Digesting: The purpose of mashing and Digesting is to tear the epidermis of the fruit, separate the pulp from the pit, and mash the pulp tissue. At the same time, heating makes the pulp soft and destroys the pulp cell structure. The optimum cooking conditions are 90-100 C, 20-30 min, and the mashing rate is about 95%. The equipment used in this process is Vertical Digester.

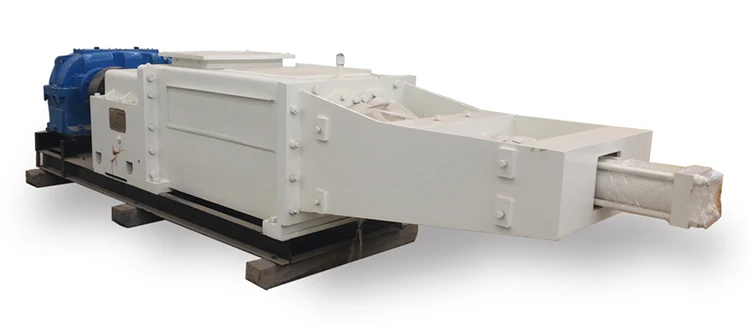

Pressing: Oil pressing generally adopts Continuous Double Screw Press, equipped with hydraulic device. It has a horizontal box with holes, which is S-crossed, with two screws inside, and a calibrating pie head at the slag discharge port of the box. It can control the pressure to ensure the minimum residual oil in the cake and adjust the crushing rate of the core to a reasonable range. Oil palm fruit is pressed and divided into two parts: a mixture of oil, water and solid impurities; fibers and pits. The residual oil rate of crushing residue is 6-8%, and the core crushing rate is less than 7-9%.

• The crude palm oil generally contains 66% oil, 24% water and 10% non-oil solid. Because there are many solid impurities in the oil, it needs professional Palm Oil Refining Equipment to process them.

• Because palm kernels also contain a lot of oil, we also have a corresponding Palm Kernels Oil Pressing Line to help you extract more oil, to obtain higher economic benefits.
• In the process of pressing oil from palm fruits and kernels, we can get waste materials such as palm bunches, palm shells and so on, which can be recycled and used as fertilizer or fuel. We can also provide you with the appropriate Waste Treatment Equipment.

Company Information

Hongde Grain And Oil Machinery Co., Ltd. is located in High-tech area, Zhengzhou, where is only 50 minutes’ drive from Zhengzhou airport and 40 minute’s to high-speed railway station. We offer pick up service to every customer.

We have above 50 senior engineers majored in technical process, mechanical, electrical, PLC control etc.

We have long term employment of senior professors from Henan University of Technology. We also built joint lab with Henan University of Technology.

The production lines designed by us in 32 provinces of China totally 33 provinces are running very well, Welcome to visit them!

FAQ

1. Why choose Hongde Grain And Oil Machinery Co., Ltd. company?

A. More than 30 years’ manufacturing experience.

B. Latest technical department: above 50 senior engineers majored in technical process, mechanical, electrical, PLC control etc. Long term employment of senior professors from Henan university of technology. Experts from related scientific research institutions, and international oil specialists.

C. One-stop service.

D. CE & ISO9001&BV&TUV certificate.

2. Can you install the machine in customers’ place?
We will send our engineers to local place to help installing and commissioning the machine, and also train your staffs and engineers.

3. Can your engineer speak English?

Yes, they can speak English related to technical, installation and comissioning work.

4. How long is your delivery time?

30-90 days varies from different plants and capacities.
