Factory Price Production Line 1-2 T/h Palm Oil Press Machine Plant
So-called Factory Price Production Line 1-2 T/h Palm Oil Press Machine Plantconnects the oil manufacturing machine together and realize the continuous work. In general, it contains cleaning sieve, cooker, oil expeller, oil filter press. Sometimes, the shelling machine is needed. If the oil corps is peanut, melon seed, you should do the shelling process before you begin extraction process. And you can use this line to product almost any kind oil, including soybeans, peanuts, cotton seeds, sunflower seeds, sesame seeds, palm kernel, coconut etc.
- Applicable Industries:
-
Manufacturing Plant, Food & Beverage Factory, Farms, Home Use
- Showroom Location:
-
None
- Condition:
-
New
- Usage:
-
Palm Oil
- Type:
-
Cold & Hot Pressing Machine
- Automatic Grade:
-
Automatic
- Production Capacity:
-
500kg/h
- Product Market:
-
Africa, Southease Asia
- Voltage:
-
380V/diesel
- Dimension(L*W*H):
-
1500*800*1150mm
- Weight:
-
270 KG
- Warranty:
-
1 Year
- Key Selling Points:
-
press palm oil
- Marketing Type:
-
Ordinary Product
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor
- Oil type:
-
Palm Oil
- Max Capacity:
-
500kg/h
- production name:
-
1-2 t/h palm oil press machine plant
- keyword1:
-
palm oil plant
- keyword2:
-
palm oil press machine production line
- Raw Material:
-
palm fruit/ FFB
- Function:
-
to extract palm oil CPO from palm fruit
- Certification:
-
CE/ISO
- Method to press:
-
physical
- Application range:
-
palm oil factory, home use
- After-sales Service:
-
Technology Supporting
- Color:
-
as required

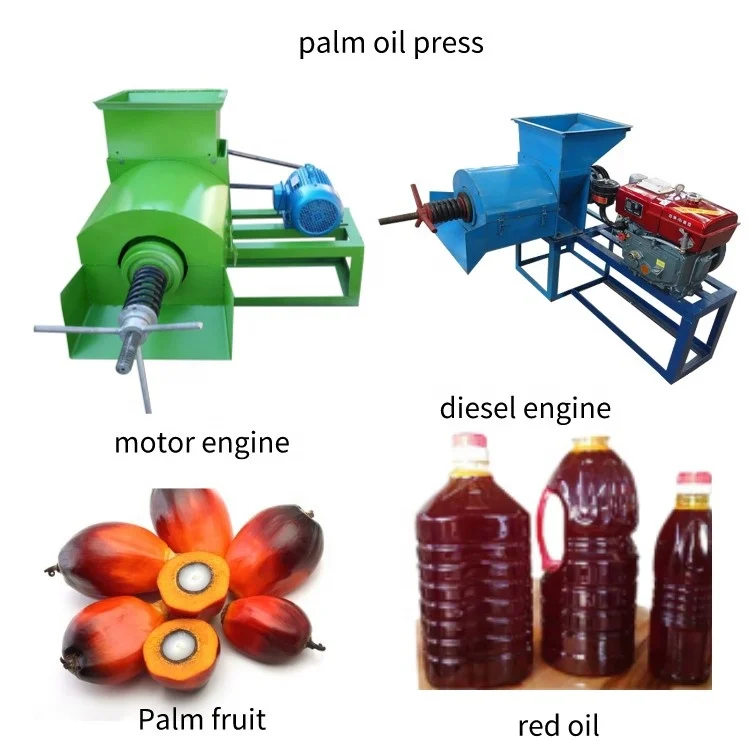

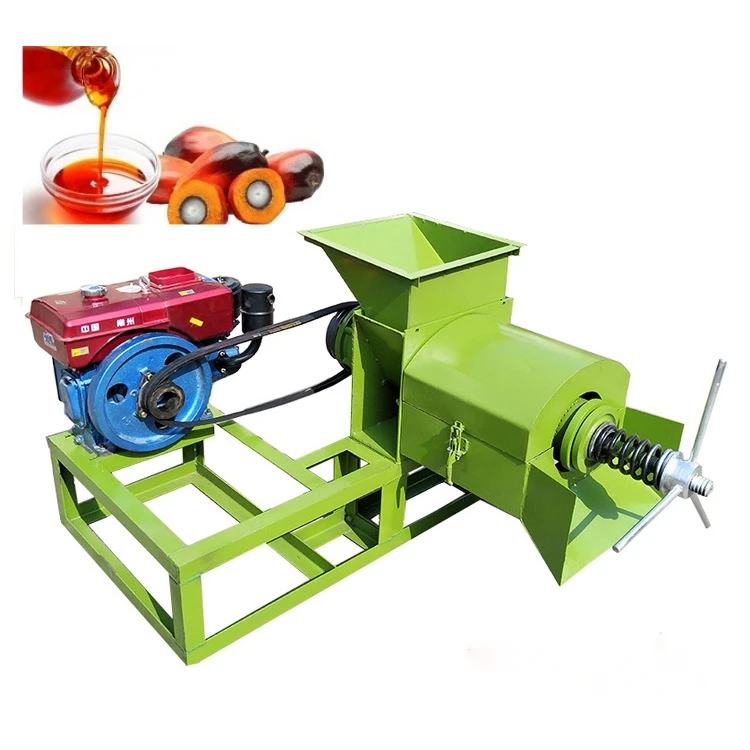

palm oil press machine is used to press palm fruit, and get palm oil. Before pressing palm fruit, For small capacity, we suggest you use pot to water boil palm fruit,for large capacity, we suggest you use sterilizer to process palm fruit. our palm oil press machine is widely used in southeast Asian countries(such as Indonesia, Thailand), Africa countries(such as Nigeria, Tanzania, Uganda,) Maxico and so on.
After palm oil press machine, you will get two part: one is red palm oil, another is mixer of fiber and palm nut. you can process palm nut to get palm kernel oil.
Specification
| model | 130 |
| capacity | 300-500kg/h |
| size | 1500*800*1150mm |
| weight | 270kg |
| power | motor 4kw |
| diesel | 8hp |
| Feature | single screw palm oil press machine |

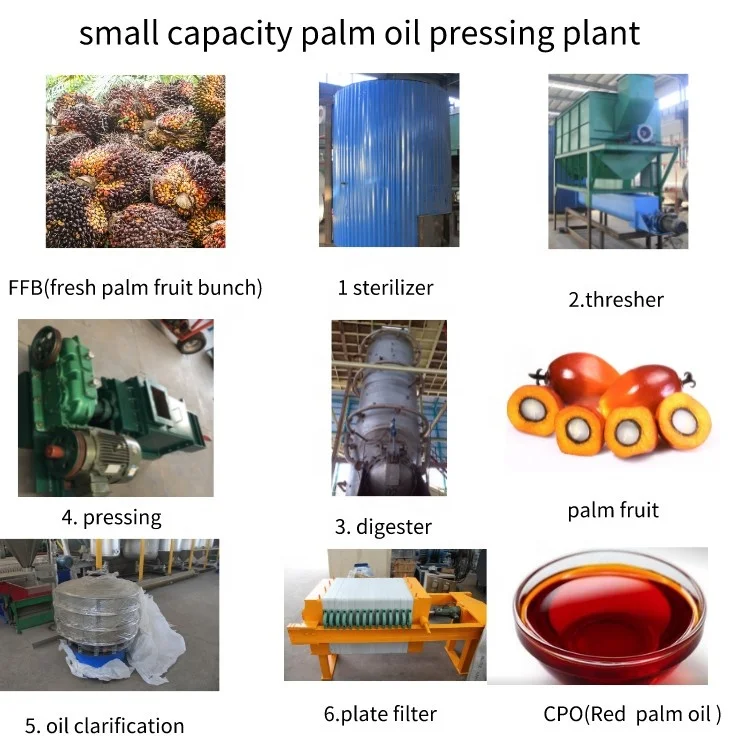

Small palm oil pressing plant:It is suitable for 1t/h-5t/h capacity. The pressing plant mainly include sterilizer thresher digesting, pressing, oil clarification and plate filter.

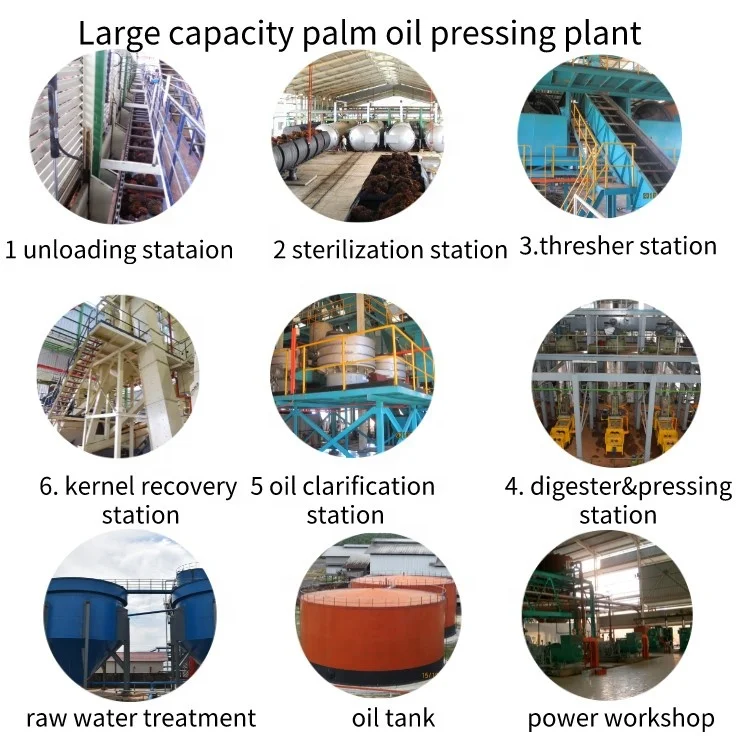

Large complete palm oil processing/pressing plant
It is suitable for large capacity, such as 10t/h,15t/h,45t/h and so on. the complete palm oil production line mainly include unloading station, sterilization station, thresher station, digest&pressing station , oil clarification station, kernel recovery station.
