Fully Automatic Vertical Hydraulic Support Hot Commercial Video Support Food Hydraulic Press Peanut Oil Press Sesame Oil Press
Fully Automatic Vertical Hydraulic Support Hot Commercial Video Support Food Hydraulic Press Peanut Oil Press Sesame Oil Press adopts hydraulic principle to produce pure and assured edible oil. The whole cooking oil expelling process is visible and needs only about 5-9 minutes; hydraulic oil expeller is quite suitable to individual households and small oil mills in the countryside due to its little room occupancy and high pressing speed.It is available to sesame, walnut kernels, pumpkin seeds, kiwi seeds, tea seeds, and almonds, etc
- Applicable Industries:
-
Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
- Showroom Location:
-
None
- Condition:
-
New
- Usage:
-
SESAME OIL
- Type:
-
Seed Roaster
- Automatic Grade:
-
Automatic
- Production Capacity:
-
90%
- Product Market:
-
Africa, Southease Asia
- Brand Name:
-
Hongde Grain And Oil Machinery Co., Ltd.
- Voltage:
-
220V/380v
- Dimension(L*W*H):
-
1200*780*1100mm
- Weight:
-
900 KG
- Warranty:
-
1 Year
- Key Selling Points:
-
Long Service Life
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Pressure vessel
- Oil type:
-
SESAME OIL, Pinenut oil, sunflower seed oil, walnut oil, Peanut Oil
- Max Capacity:
-
150 kg/h
- Raw Material:
-
Oil Seeds
- Function:
-
Making Edible Oil
- Product name:
-
Oli Press Machine
- Name:
-
Oil Refinery Equipment
- Application:
-
Edible Oil Production
- Advantage:
-
Energy Saving
- Keyword:
-
Mini Oil Expeller
- Feature:
-
High Oil Yield Efficiency
- Material:
-
304 Stainless Steel
- Item:
-
Essentials Oil Steam Distillation Equipment
Product Overview

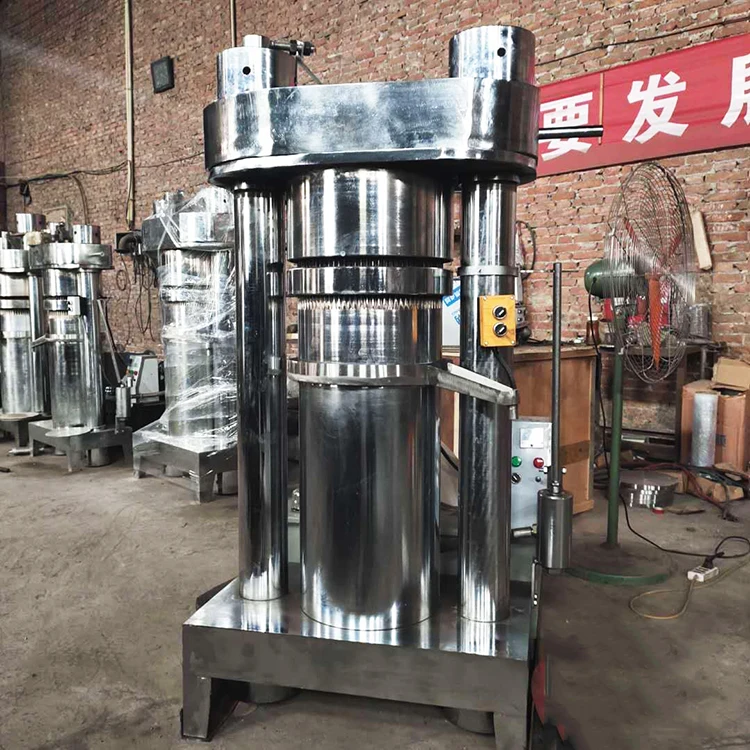

Hydraulic Oil Press MachineThe hydraulic oil press is improved on the basis of introducing foreign similar products. It is easy to use, easy to operate, and has a high oil yield. It has a simple and fast process, and has a direct tendency to flow out of the pure.
PRODUCT SPECIFICATIONS
| industrial automatic hydraulic Macadamia oil pressers sesame seeds cook oil cold extraction equipment parameters | ||||||
| Type | 6YZ-180 | 6YZ-230 | 6YZ-320 | |||
| The diameter of the cartridge | φ180mm | φ230mm | φ320mm | |||
| Working Pressure | 55Mpa | 60Mpa | 60Mpa | |||
| Capacity | 2-4kg | 5-8kg | 7-18kg | |||
| Each squeezing time | 8min | 10min | 12min | |||
| Total Weight | 530kg | 950kg | 1320kg | |||
| Motor Power | 0.75kw | 1.5kw | 2.2kw | |||
| Dimension | 800*650*1000mm | 900*850*1150mm | 1100*1000*1500mm | |||
Application
| Oil material | Oil press rate | Thickness of the material slag | Residual oil ratio(%) | |
| Sesame | 42-55 | 1.0-1.5 | ≤7 | |
| Peanut | 40-50 | 0.8-2 | ≤8 | |
| Rapeseed | 28-43 | 1.0-1.5 | ≤8 | |
| Sunflower seeds | 30-40 | 1.2-1.5 | ≤8 | |
| Soybean | 10-16 | 0.8-1.5 | ≤7 |
PRODUCT CONFIGURATION

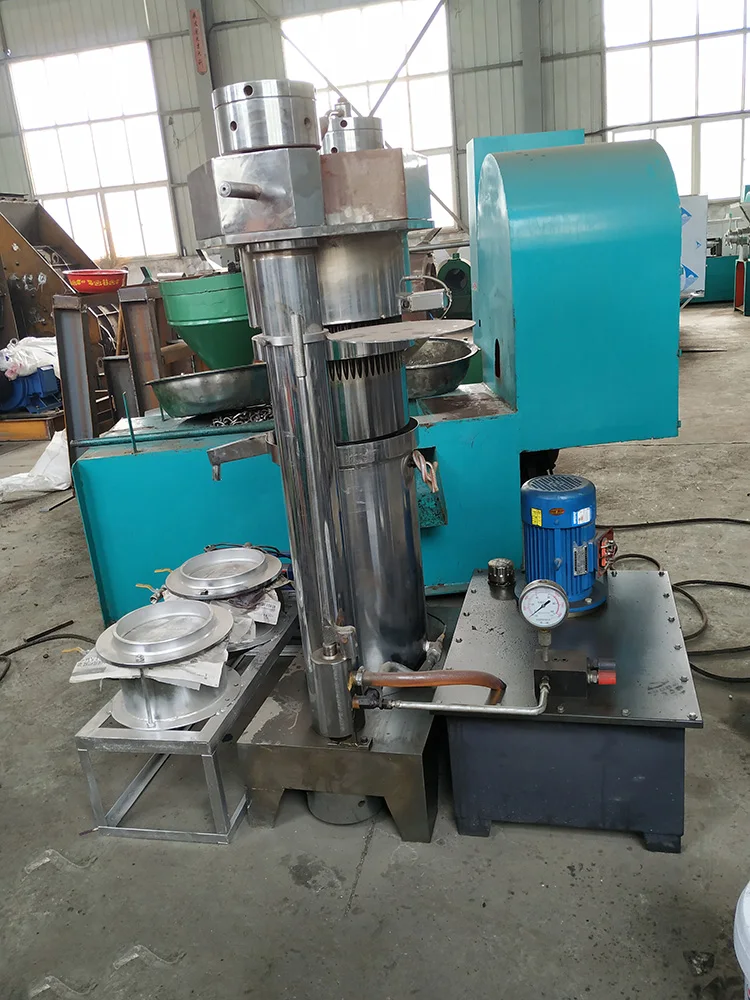

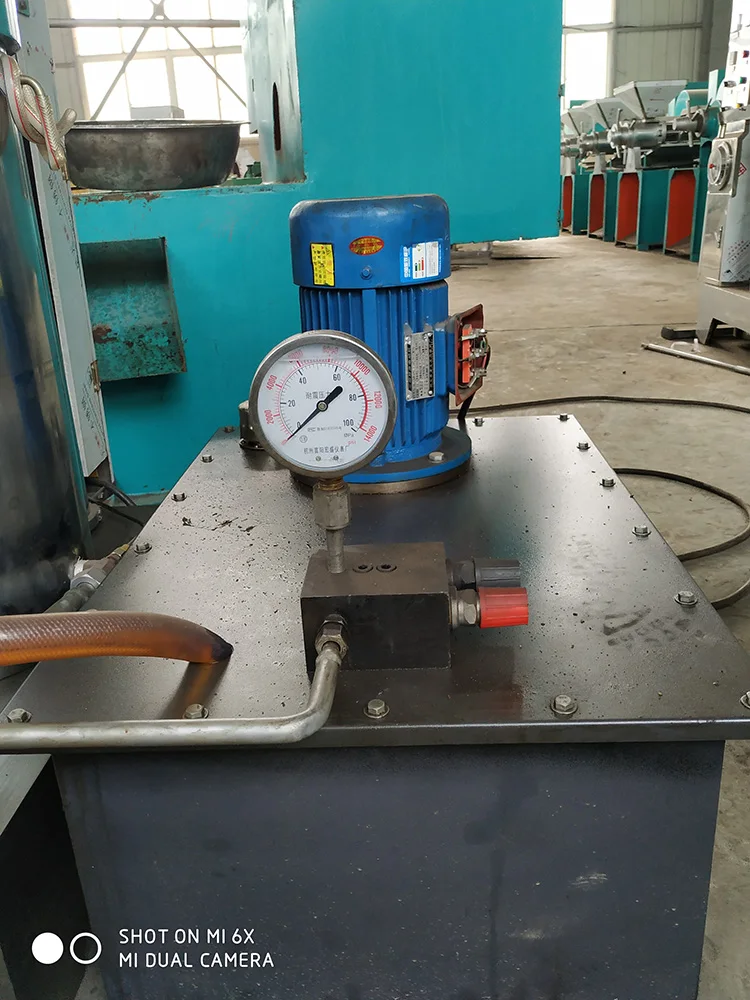

industrial automatic hydraulic Macadamia oil pressers sesame seeds cook oil cold extraction equipment are piston, hydraulic cylinder, pillar, movable upper beam, base, oil pump, feeding tube, electric heating coil and automatic temperature control device. The materials are made of high quality metal materials, thus improving the machine performance and ensuring the service life of the parts.
SALES AND SERVICE NETWORK
FAQ
1.What does need from me to quote a price? 1.Raw Material 2.Production capacity per batch.
6. We can test the machine before we send it if the client need.7. The more you need, the cheaper the unit price is.8. Help the client with the shipment.
