Auto Factory Oil Mill Commercial Sesamehydraulic Oil Press Machine in South Afirca

Auto Factory Oil Mill Commercial Sesamehydraulic Oil Press Machine in South Afirca adopts hydraulic principle to produce pure and assured edible oil. The whole cooking oil expelling process is visible and needs only about 5-38 minutes; hydraulic oil expeller is quite suitable to individual households and small oil mills in the countryside due to its little room occupancy and high pressing speed.It is available to sesame, walnut kernels, pumpkin seeds, kiwi seeds, tea seeds, and almonds, etc

SEND INQUIRY NOW

auto factory oil mill commercial sesamehydraulic oil press machine

This machine is based on the principle of hydrostatic pressure transmission, using hydraulic oil as the pressure transmission medium to squeeze the oil and then squeeze out the oil. It is a closed loop system composed of two parts, the hydraulic system and the oil press body.

Pressing scope

The press range is wide:Hot pressing and cold pressing can be realized

Advantangescommercial small hydraulic cold home seeds sesame oil press machine

1. High quality oil：Physical pressing, high oil yield, no temperature generated in the cold pressing process, no damage to the organic components of oil, wide Application range
2. Easy to operate, high efficiency：Mechatronics design, low failure rate, high degree of automation, beautiful appearance, easy to operate, one person can operate 3-4 sets

Specification

Product Features

2. The machine introduced South Korean technology, beautiful appearance, convenient operation, stable performance, small footprint, less power consumption, low noise, the extracted oil chun xiang pure, is the necessary product for users to open oil workshop3.Good oiol quality ： pure physical pressing, high oil yield, no temperature generated in the cold pressing process, no damage to the organic components of the oil, good oil quality, low impurity, high cake value, and wide Application range auto factory oil mill commercial sesamehydraulic oil press machine
4.Convenient operation and high efficiency:echatronics design, low failure rate, high degree of automation, it can be completed in 8-12 minutes from loading to cake discharge, beautiful appearance, easy operation, one person can operate 3-4 sets.

Actual photo of the factory

Details

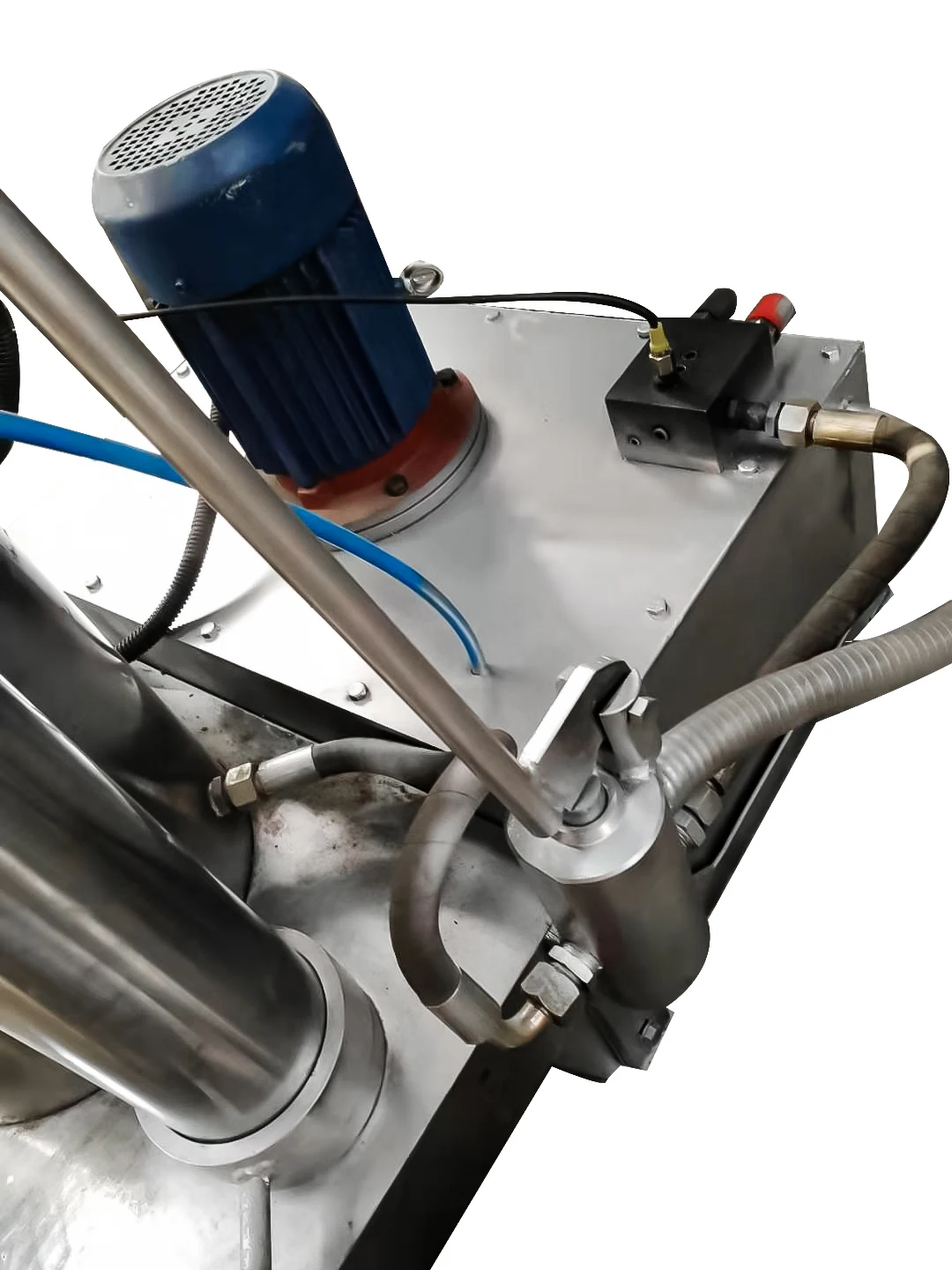

Hydraulic system of this cold sesame oil press for sale is the main power force of this machine it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts.

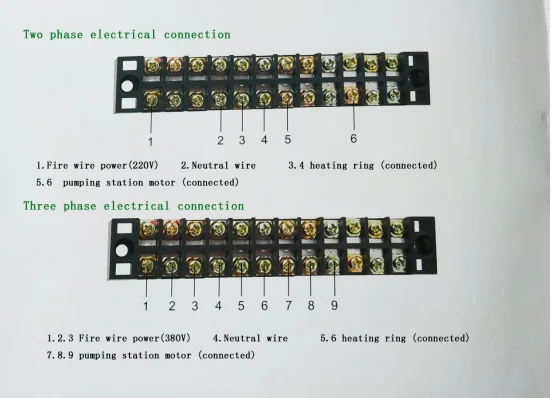

2. Electric SystemElectronic system of this cold sesame oil press for sale is the most advanced part of this machine, it is fully automatic, easy to operate, and there’s no special request to the operator, so this machine is particularly suitable for household and workshop.
3. Stainless Oil Drum
The oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston ,oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage.

Product details

Operation

1.Turn on the power, check that the indicator light is working normally, use the machine for the first time, push the manual pressure relief lever on the pressure relief valve to the rear position, switch the machine on and off ten times continuously, drain the gas in the pumping station, and shut down. Turn on the thermostat switch and adjust the temperature to 50 to 60°C.2.Push the manual pressure relief rod to the rear, open the top, turn on the machine, observe that the
piston in the barrel rises to the pressure plate, immediately turn off the switch, note: do not raise the piston too high, or the piston will fall out of the cylinder , Causing the piston to tilt, unable to fall back, and hydraulic oil leakage. Take out thetop pressure plate, do not move other accessories in the barrel

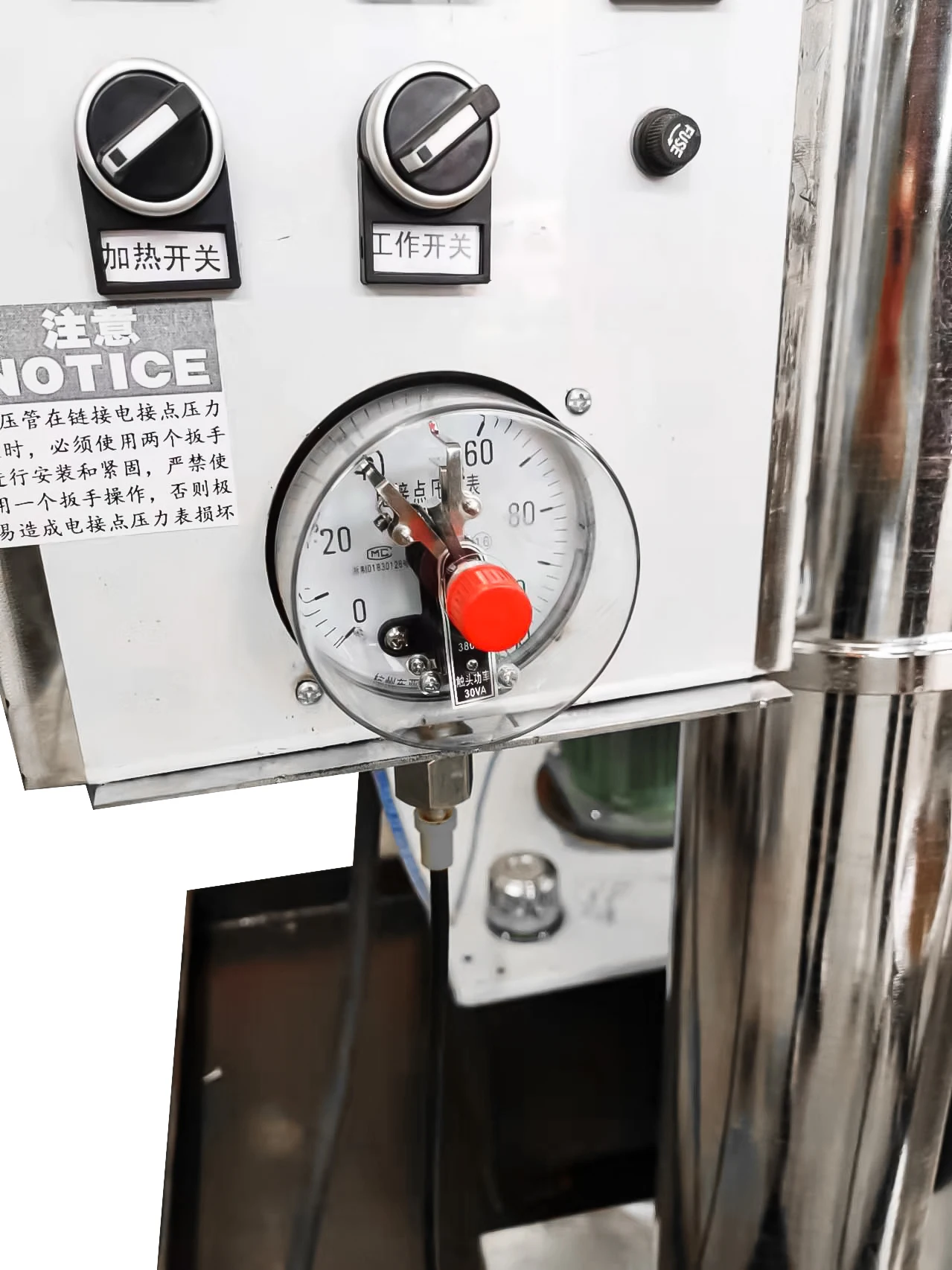

3.Open the top, put a cotton pad on the bottom of the barrel, pour the prepared Raw Materials into the barrel, put another cotton pad on the top of the material, put it in the pressure plate, close the top, and release the pressure manually Push the lever to the rear position, start the switch, and start squeezing. Under normal circumstances, the electric contact pressure gauge of the meter box will automatically stop when the pressure reaches 55-60 MPa, and the machine will automatically work when the pressure drops to 45 MPa. Repeat 2-3 times, the oil is basically squeezed out, and the switch is turned off. Pull the manual pressure relief lever slowly and forcefully until the small cylinder at the top of the pressure relief valve can be pressed down. After 10 seconds, push the manual pressure relief rod to the rear position again, open the upper cover, turn on the switch of the main engine, and take out the oil cake. Then gently pull the manual pressure relief rod until the small cylinder at the top of the pressure relief valve can be pressed down, and the next pressing can be started after the piston falls to the bottom.

Packing & Delivery

Inner packing: plastic packing auto factory oil mill commercial sesamehydraulic oil press machine
Outer packing: wooden case packing

Our Service

About cold hydraulic sesame seed oil press machine we provide:

1.Highly inspecting equipments in every working procedure,quality comes first;
2.Fast & Safe Delivery; auto factory oil mill commercial sesamehydraulic oil press machine
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems;
7.Providing life-long maintenance service;
8.Providing technical exchanging. auto factory oil mill commercial sesamehydraulic oil press machine

1.What does need from me to quote a price?(1)Raw Material auto factory oil mill commercial sesamehydraulic oil press machine(2)Production capacity per batch.commercial small hydraulic cold home seeds sesame oil press machine
2.What is the oil yield auto small hydraulic cold home commercial seeds sesame oil press machine
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil. auto small hydraulic cold home commercial seeds sesame oil press machine
The oil residual of our smallsesame/coconut/olive cold press oil making machine/hydraulic oil press machine for sale is 1%commercial small hydraulic cold home seeds sesame oil press machinec auto factory oil mill commercial sesamehydraulic oil press machine
3.Can I use the machine to extract several kinds of Raw Materials?Yes,of course. such as sesame, sunflwoer seeds, soybean, peanunt, coconut, etc
commercial small hydraulic cold home seeds sesame oil press machine
4.Can I do extraction test with my own Raw Material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
auto factory oil mill commercial sesamehydraulic oil press machine
5.What is your material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304,it can be customized according to your request)

6.How long does it take to produce the machine once I place my order ?
Usually the delivery time is 5 working days after prepayment received.
auto factory oil mill commercial sesamehydraulic oil press machine
7.What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you a discount.

8.How will my order be packed, can you provide the installation service?
Packed in plywood case.We will send English manual.
