Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location:
Viet Nam, Brazil, Saudi Arabia, Indonesia, Russia, Kenya, Chile, UAE, South Africa, Nigeria, Uzbekistan
oil manufacture
Cold & Hot Pressing Machine
Automatic Grade:
Production Capacity:
Product Market:
Africa, Southease Asia
Brand Name:
1 Year
Key Selling Points:
Marketing Type:
New Product 2020
Machinery Test Report:
Not Available
Video outgoing-inspection:
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Raw Material:
Soybean oil
Oil Press + Drum Filter
Screw Oil Expeller
High Oil Yield Efficiency
Extraction of Oilseeds:
90% Oil Yield
Energy Saving
Keyword 1:
vegetable oil refining
Keyword 2:
oil press
Keyword 3:
soybean oil press
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Viet Nam, Saudi Arabia, Indonesia, Russia, Kenya, Chile, UAE, South Africa, Kazakhstan, Nigeria, Uzbekistan
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support

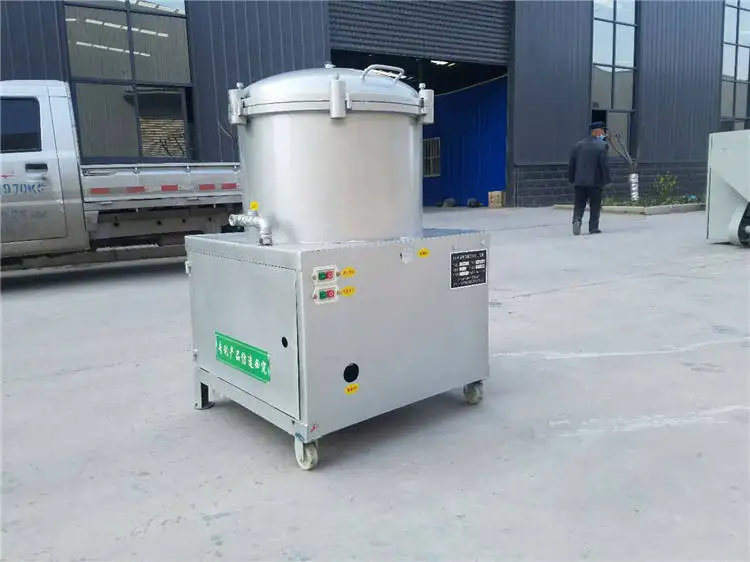

Palm oil refining machine refinery plant for oil press machine:

Small oil refining machine is used to process curde oil which is pressed by oil press machine.
This Small oil refining machine have the functions of dephosphorization, deacidification and dehydration.
Through the processes of the oil refinery machine, the product oil can reach the edible standrad.

1.Drew the oil in the tank.
2.Turn on the stirring switch
3.Turn on the heating switch
When the temperature of the oil reaches 65 centigrade, turn off the heating switch.
4.Add hot brine to the oil, sprinkle the hot brine evenly into the oil. Then stir for 15 minutes. Turn off the stirring switch.
Brine/oil : 5/100 ( 100kg oil add 5kg brine)
Salt/water: 5/1000(100kg water add 0.5kg salt)
Note: the temperature of the brine must be 10-15℃ higher than the temperature of 65℃ oil. If the brine temperature is lower than
the oil, the oil would emulsify.
5.Precipitate the oil in the tank for 4-6 hours.
6.Open the switch at the bottom of the tank, let out the precipitate.

Why is Vegetable Oil Refined?
Vegetable and Animal Oils and Fats have impurities such as Moisture, Solids (Insolubles), Gums (Lecithins), Free-Fatty Acids (FFA), Waxes, and Compounds of Sodium, Potassium, Magnesium, Calcium, and other metals. These impurities must be removed to improve the functionality of the oils. Other characteristics of oils (such as Color, odor, and taste) are also considered impurities by modern consumers. These impurities are removed in a series of steps such as degumming (to remove gums), neutralizing (to remove FFA), bleaching (to remove color), deodorizing (to remove odor and taste), and dewaxing or winterization (to remove waxes).

Automatic oil press machine
Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed. Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

Automatic oil press machine

The oil press machine is a new research improvement product. It can use to press Copra, rapeseed, peanuts, soybean, sesame,sunflower seeds and other plant oil materials. This kind of machine adopts micro-electrical control, filter system, multi-stage press of cold and hot press. The product oils is clean oil after filtering, it can directly to use. The machine is the most ideal equipment for individual processing.

Technology parameters of spiral oil press machine

Oil name Yield(kg/g) Oil content(%) Dry cake residual oil rate(%) Oil yield(%)
Peanut 230-300 38-48 ≤8 36-37
Rapeseed 240-310 30-40 ≤8 28-39
Sunflower seed kernel 260-330 50-60 ≤8 48-58
Soybean 260-330 10-16 ≤8 8-14

Detailed Images

Packaging & Shipping

Service:1.Design according to your special requirement.
2.Free repair within 1 year.
3.Engineer could work to your country
4.we are responsible for installation, test running and trainning local workers for you.

Palm Oil Refining Machine Refinery Plant For Oil Press Machine
