Soybean Oil Press Machine Oil Filter Press in Malawi
- Applicable Industries:
-
Food & Beverage Factory, Farms, Home Use, Retail, Food & Beverage Shops
- Showroom Location:
-
None
- Condition:
-
New
- Usage:
-
Peanut Oil
- Type:
-
Cold & Hot Pressing Machine
- Automatic Grade:
-
Automatic
- Production Capacity:
-
95%
- Product Market:
-
Africa, Southease Asia
- Brand Name:
-
HJ
- Voltage:
-
380V
- Dimension(L*W*H):
-
1200*1160*800mm
- Weight:
-
230 KG
- Warranty:
-
1 Year
- Key Selling Points:
-
Long Service Life
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
2 years
- Core Components:
-
Motor
- Oil type:
-
Flax Seed Oil, Soybean Oil, Rap seed oil, Tea Seed Oil, Basil oil, SESAME OIL, Pinenut oil, sunflower seed oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil
- Max Capacity:
-
500 kg/h
- Name::
-
oil press/extractor
- Raw Material::
-
sesame, peanut, rapeseed, tea seed, soybean, oil sunflower,
- Application:
-
Edible Oil Production Line
- Extraction of Oilseeds:
-
95% Oil Yield
- Method to press:
-
screw squeezed press
- Color:
-
Blue
- Oil rate:
-
Meal Residual: 7-8%
- Advantage:
-
Energy Saving Low Residual
- Process:
-
Phsical Refining
- Application range:
-
Screw Mustard Oil Expeller

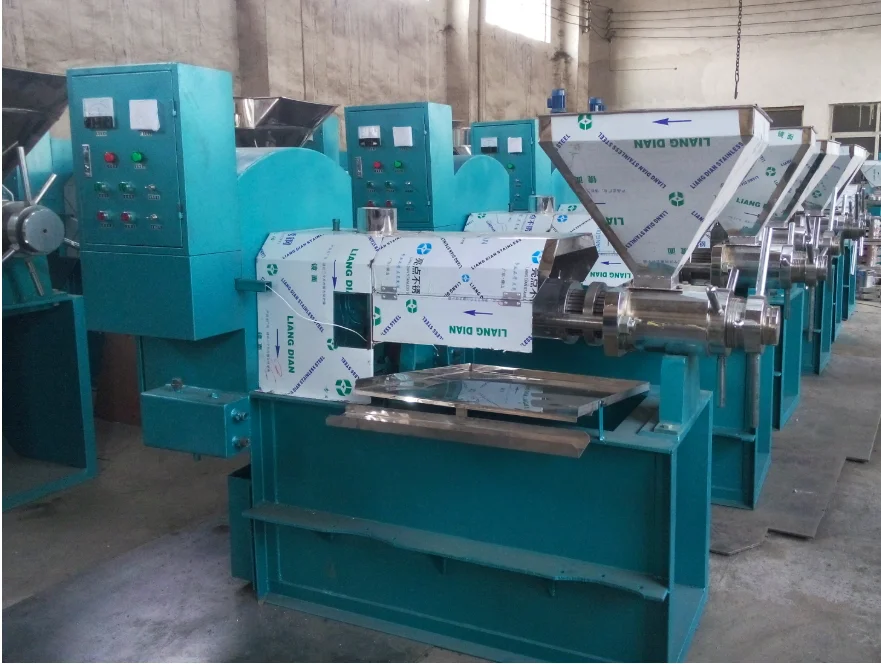

Multi-functional Oil Press
The multi-functional oil press is a new generation of spiral oil press specially designed for cold and hot dual-purpose pressing of all kinds of oil. It is especially suitable for pressing organic plants and high value-added economic crops. When the machine is pressed, the oil temperature is low, the oil yield is high, and the residual oil of the cake is low. The processed oil is light in color, good in quality and rich in nutrition, meeting the international market standard. The multifunctional oil press is suitable for pressing more than 20 kinds of oil crops, such as rapeseed, peanut, soybean, sesame, oil sunflower, camellia seed, walnut kernel, corn germ, etc.
| Model | 6YL-80 | 6YL-100 | 6YL-125 | 6YL-150 |
| Spiral Diameter(mm) | 80 | 100 | 125 | 150 |
| Screew Speed(r/min) | 63 | 43 | 36 | 36 |
| Power(kw) | 5.5 | 7.5 | 11 | 15 |
| Heating Power(kw) | 3 | 3.5 | 4 | 4 |
| Capacity(kg/h) | 80~130 | 200~260 | 300~350 | 450~500 |
| Weight(kg) | 565 | 760 | 920 | 1200 |
| Size(L*W*Hmm) | 1650*1500*1600 | 2000*1500*1720 | 2100*1500*1750 | 1600*2100*1720 |
Working Principle
After the power is decelerated, it is transmitted to the main shaft. With the rotation of the pressing screw installed on the main shaft, the oil between the threads is continuously pushed forward. Because the space between the pressing chamber and the pressing screw is gradually reduced, the density of the oil is increased, so the pressure is gradually increased. In the process of pressing, because the machine is automatically heated by force, the temperature of the main engine of the machine body is increased through the automatic temperature control device, so as to reduce the labor intensity, the wear of the machine body, save labor, power and time, and the friction between the oil particles and between the oil and parts produces heat. In this way, the pressure and heat of the oil extraction process are two major elements, which destroy the tissue cells of the oil, oil overflows from the oil line, and the cake is pushed out between the cake head and the cake mouth. When the spilled oil flows into the oil filtering barrel through the oil pan, the vacuum pump draws out the air in the barrel. When the negative pressure is formed in the barrel, the oil is pumped into the barrel through the filter cloth, and the oil residue is isolated on the filter cloth, then the pure oil is obtained.
This series of units mainly consists of five parts: automatic control part, heating and pressing part, adjusting part, transmission part and vacuum oil filtering part. 1. The automatic control system is composed of air switch, AC contactor, temperature controller, automatic circuit protection device.2. The heating and pressing part is composed of heater, pressing screw, pressing bar, machine body assembly.3. The transmission part is composed of main shaft and reducer, belt pulley, motor pulley.4. The adjusting part consists of adjusting screw, adjusting nut, sub handle, lock nut.5. The vacuum oil filtering part is composed of vacuum pump, oil filtering barrel pipeline.
Performance advantages of oil press
1. It has collected more advanced manufacturing technology of oil press machinery at home and abroad, all of which are made of national standard steel and spare parts, with the characteristics of compact design, thick and stable, convenient installation, durable, beautiful and generous. Its service life is more than three times that of other ordinary oil presses. It can be used for a long time through the supply of accessories from manufacturers. 2. The function of automatic control of temperature rising of frying seeds and pressing chamber is added, which changes the traditional way of temperature rising of dry cake grinding and pressing, shortens the preparation time, reduces the energy consumption and the wear of the machine, and prolongs the service life of the machine. If the production is interrupted, the pressing chamber can also be automatically insulated, and the multi-stage pressure propulsion and reasonable filtering system are adopted to improve the oil pressing efficiency and oil quality.
3. All purpose press, one machine for multiple purposes. It can squeeze peanut, soybean, rapeseed, cottonseed, oil sunflower, tea seed, Tung seed, castor, almond, hemp seed, safflower oil seed and other oil crops.
4. It is universal in North and south, suitable for all seasons: because the oil pan device adopts the heating and temperature control system, it can automatically adjust the crude oil temperature according to the change of the ambient temperature, so as to achieve the effect of rapid fine filtration, so as to ensure the normal production under various climatic conditions.
1. Sesame seeds: stir fry the seeds to light gray before pressing. There is a phenomenon of bursting. When kneading the seeds by hand, the oil will flow out. Stir fry the seeds with high fire. The temperature is 120-150 degrees, and the thickness of the cake is 0.7-1.5mm. Stir fry the seeds properly. The oil flow out of the cake is smooth. There is basically no residue in the oil. The cake is in a long shape and is dried once.
2. Rapeseed: because the water content of Raw Materials in North and south is different, add 4-6 before frying, and not in South (depending on the water content of Raw Materials), first stir fry the rapeseed with high fire until it is hot, and then stir fry it with low fire until it is brownish red. During the process of frying, do not add water. When pressing, the temperature of rapeseed is 120-130 degrees, and the water content is about 1-1.5. Whether the fried seeds are suitable can flow oil out of cake State observation of. The fried seeds are suitable, the oil flow out of the cake is smooth, and there is basically no residue in the oil. The thickness of the cake is 1-1.5mm, in small flakes, brownish red.
3. Peanut kernel: soak the peanut kernel once before frying. During the process of frying, add proper amount of water to make the kernel keep good softness and sufficient water. Fry the kernel until it is eight mature. Knead the kernel by hand to separate the kernel from the skin. Break the kernel into two petals and press it. The cake is 0.7mm thick and has long wrinkles. The oil is discharged smoothly.
4. Cottonseed Kernel: stir fry the oil until it is light yellow before pressing. The temperature is 120-130 ℃, and the thickness of the cake is 1-1.5mm (the moisture content in the South and north is different, so properly control the moisture content).
5. Soybean: stir fry until it burst and edible before pressing, the temperature is 120-130 ℃, and the cake thickness is 0.7mm. It is dried over and over again, but the cake material dried over and over burnt, which makes it lose a lot. Generally, the process of twice pressing is adopted. Stir fry the soybeans until they are six or seven ripe. The temperature is 80-100 ° C, the moisture is 5-6, the thickness of the first cake is 1.52mm, and the thickness of the second cake is 0.7mm. The cake is long and wrinkled, with high oil yield and large processing capacity.
After sale service
Pre-sale Service
(1) According to the customers’ special requirements, provide the most suitable project design, process design and the purchase program.
(2) Guide customers to choose the best and economical plant, recover investment within short time, and site inspection.
On sale service
(1) Welcome you to our factory for a visiting;
(2) Accompany you to check our machine production, quality and the working conditions.
(3) Customize the equipments strictly according to your special requirements and arrange the timely delivery.
After-sale service
(1) Installation guidance
When the machine arrives at your company, we will dispatch our technicians to your factory to guide the installation and commissioning at site.
(2) Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3) Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
Company Introduction
Gongyi JinLong Hengji Heavy Industry Machinery Co.. Ltd is a comprehensive enterprise related to design, research and development, manufacture, marketing, technical support and installation service. We have been concentrating on waste recycling machinery, include scrap cable wire recycling machine, PCB circuit board recycling machine, waste aluminum plastic composite material aluminum plastic composite panel, medical blister, etc) recycling machine, waste automobile/air conditioner radiator recycling machine, mixed plastics separation machine. With mature production technology and professional sales, engineers and installation team, through the unremitting technological innovation and following the market demand, we have been installed machines in more than 50countries all over the world.
FAQ
1. Payment accepted: After confirming all the details with our sales, we will make contract for you to make deposit first and the balance need to be cleared against shipping. Generally we accept most of the payment methods like TT, L/C, PayPal, West union, Moneygram.
2. Lead time: 7 working days against your deposit.
3. What about the quality: We use the national certified steel and top brand e-parts
4. Warranty: 12 months warranty and life time service.
5. Certificate: ISO, CE, CCC
6. How can I get to your company: We are located in Gongyi City. You can fly to XINZHENG INTERNATIONAL AIRPORT and we will pick
you up there.
7. Raw Material: It is multifunctional, all the oil corps on the market can be processed.
