Applicable Industries:
Food & Beverage Factory, Home Use, Retail
Showroom Location:
None
Condition:
New
Usage:
Peanut Oil
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Production Capacity:
30kg/h
Product Market:
Africa, Southease Asia
Brand Name:
Bohan
Voltage:
380V
Dimension(L*W*H):
1900*1200*1600
Weight:
1100 KG
Warranty:
1 Year
Key Selling Points:
Automatic
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump
Oil type:
Tea Seed Oil, hemp oil
Max Capacity:
30 kg/h
Raw Material:
Tea seeds, peanuts, rapeseed
Product name:
Oil press
Function:
extract oil
After Warranty Service:
Provide
Feature:
High efficiency and energy saving
Advantage:
Energy Saving
Keyword:
Oil press
power:
7.5KW
Colour:
Customized
Characteristic:
Long service life

PRODUCTS DESCRIPTION

Model Chamber diameter Screw speed Voltage & Power Production Weight Dimension
6YL-60 55mm 52 r/min 220v/2.2kw 30-60 kg/h 220kg 120*78*110cm
6YL-70 65mm 48 r/min 220v/3kw 50-80 kg/h 280kg 140*86*126cm
6YL-80 80mm 47 r/min 380v/5.5kw 65-130 kg/h 780kg 170*120*150cm
6YL-100 101mm 38 r/min 380v/7.5kw 140-280 kg/h 1100kg 180*130*168cm
6YL-125 125mm 36 r/min 380v/15kw 300-400 kg/h 1280kg 210*140*170cm
6YL-150 150mm 35 r/min 380v/18.5kw 500-600 kg/h 1420kg 220*140*170cm

1.We have many models for you choose. 2.We also accept custom models. Main Features 1. Full automatic screw oil press with vacuum filtration, rapid purification and automatic temperature control technology 2. The oil output rate is high, about 3% higher than that of ordinary hydraulic press, and the installation is convenient 3. The oil has high purity and can be eaten directly after vacuum filtration 4. Only 10-20 square meters of workshop is needed for oil extraction. 5. The surface of the fuel dispenser is chrome plated stainless steel. 6. High efficiency, energy and labor saving, convenient operation and simple maintenance.

Click here to get more

Product parameters

and the best price!!!

APPLICABLE FIELDS

Screw type presses are advanced oil processing machinery, characterized by their simple design, easy to use, wide suitability and continuous operation; and high productivity and high oil output rate.Moreover, they can be used for various Raw Materials, as ground nuts, bean, rape and cotton seeds, sesame, olive, sunflower,coconuts and cocoa and grass seeds.
Besides, they are suitable for medium-small sized oil extruding workshops or professional farmers. Certainly, they can be used for repressing in submerging oil workshops, too。

This machine can extract any vegetable seed oil. If you have any questions, please contact us

USE OF OIL CAKE

Working Principle

Its

Working Principle

is to extrude the oil from the material embryo through the continuous promotion of the material embryo in the extrusion chamber and the change of the space volume of the extrusion chamber from large to small, and discharge it from the grooves and oil grooves of the strip row and circular row. After being deeply filtered by the oil tank, it can be eaten directly in the barrel.

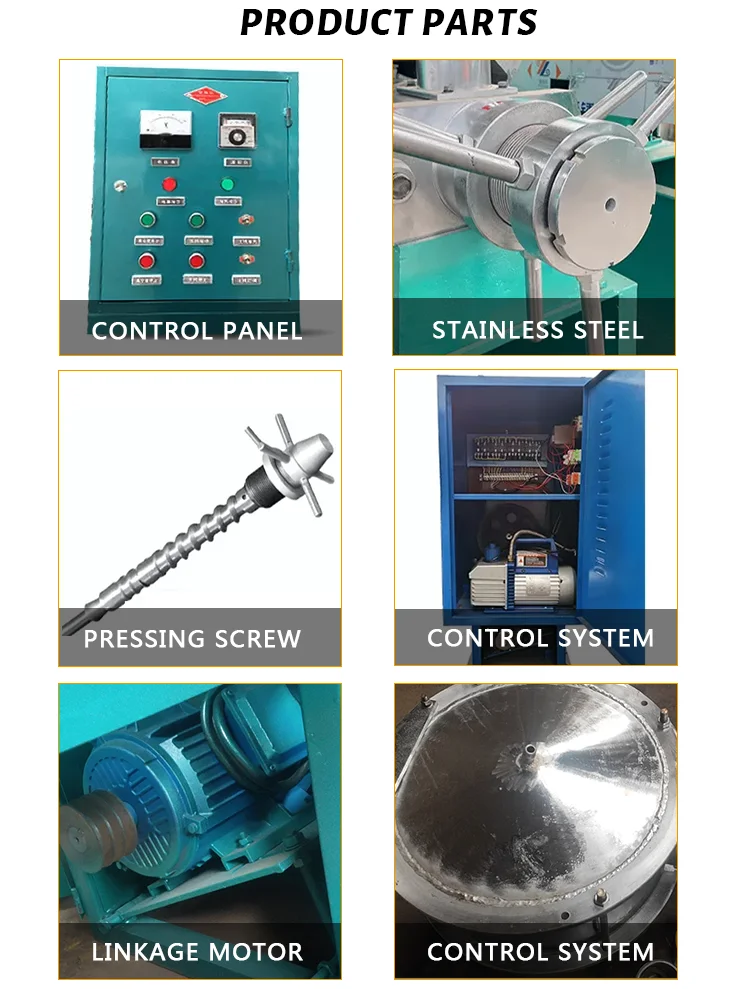

PRODUCT PARTS

PRODUCT DISPLAY

ABOUT US

The main products are charcoal machine, scrap treatment equipment, oil press, sand making machine, copper rice machine and other environmental protection equipment. At present, the company has more than 150 employees and more than 20 senior engineers. The company has always adhered to the purpose of “quality first, customer first, high-quality service and abiding by the contract”.With high-quality products, good reputation and high-quality service, the products sell well in more than 30 provinces, cities and autonomous regions in China, as well as in Southeast Asia, South America and other countries.
We sincerely cooperate with domestic and foreign merchants for win-win cooperation, common development and create brilliance!

FAQ

1.Q:How to choose the suitable one? A:Please tell us your detailed requirements by mail or online,we will recommend the suitable one as your request.

2.Q:Why the price is just a range? A:Because different model and qantity,the price is different,competitive price will be according to your model and quantity.

3.Q:How can I pay?
A:We accept many payment,such as T/T,Western Union,Moneygram.

4.Q:When I receive it after pay? A:The normal models can be sent out within 5-7 days,please contact us to check shipping time to your address.
5.Q:Is it will be broken during transport?
A:Please don’t worry,our goods with standard export package.

6.Q:What should I do if I don’t know how to use? A:Please don’t worry,manual user will be sent together,you can also contact us for technical support

Selling Automatic Tea Seed,Peanut,Rapeseed Oil Press
