Complete Production Plant Extractor Oil Pressing Machine For Sun Flower Seeds Hemp Kenya
- Applicable Industries:
Manufacturing Plant, Farms, Restaurant, Home Use, Retail
- Showroom Location:
Cold & Hot Pressing Machine
- Automatic Grade:
- Production Capacity:
- Product Market:
Africa, Southease Asia
- Brand Name:
- Key Selling Points:
- Marketing Type:
New Product 2021
- Machinery Test Report:
- Video outgoing-inspection:
- Warranty of core components:
- Core Components:
Motor, Pressure vessel, Gear, Engine, Other
- Oil type:
Soybean Oil, Rap seed oil, SESAME OIL, sunflower seed oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil, OLIVE OIL, Palm Oil
- Max Capacity:
- Product name:
oil pressing machine for sun flower seeds
corn oil press machine
- Raw Material:
coconut cottonseed palm kernel soyabean
all kinds of crude oil
- Final product::
high oil out rate ,low oil loss
- Residual oil:
less than 1%
- After-sales Service Provided:

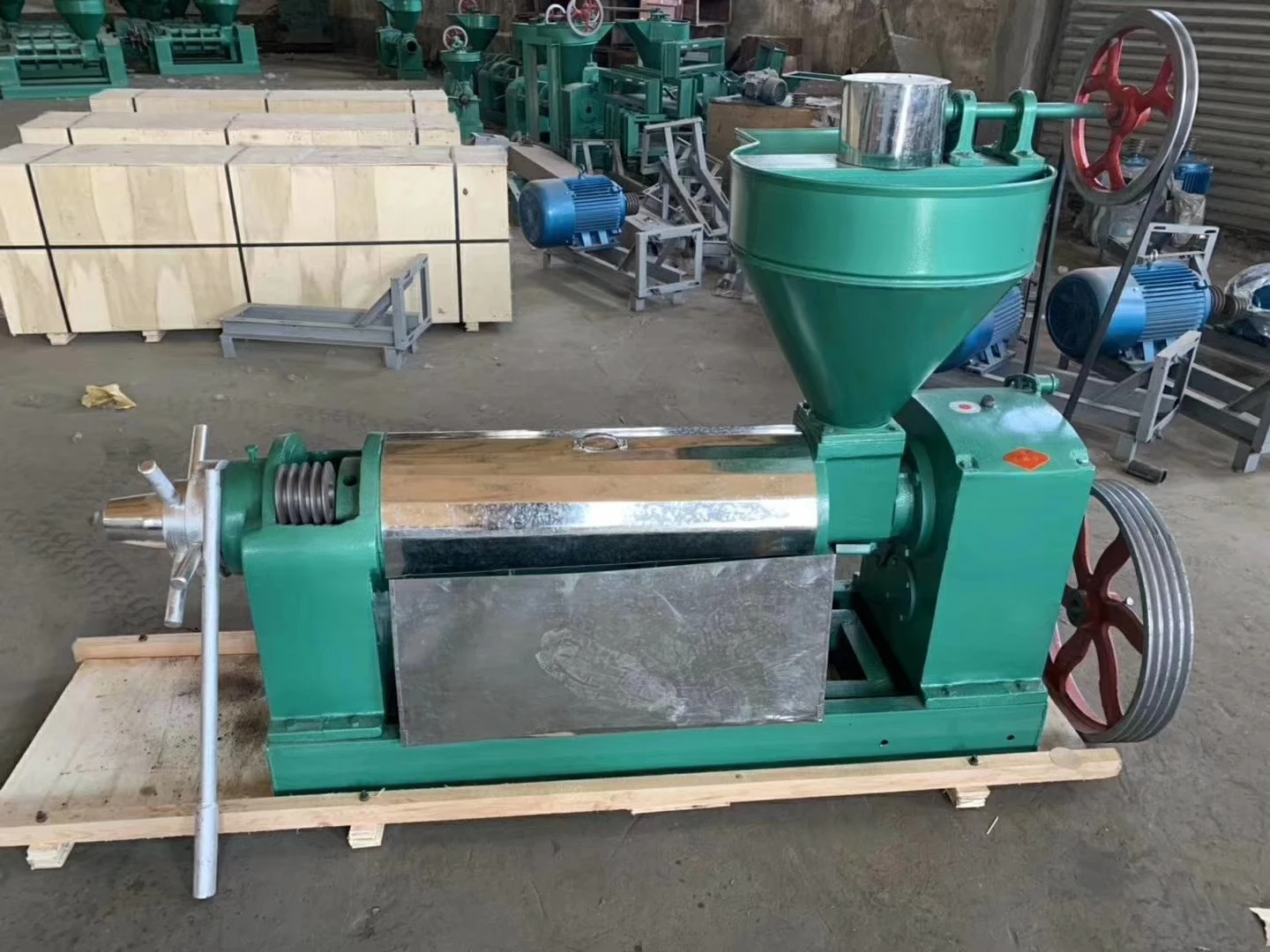

The new screw oil press is a new generation of low-temperature screw oil press designed for hot pressing of various oils,
especially suitable for pressing plants and high value-added economic crops. The residual oil is low, and the processed oil is
light in color, good in quality and rich in nutrition, meeting the market standard.
When oil presses operating prepared material enters extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed. Under the high-pressure condition in the chamber ,friction between material and screw ,between material and chamber will be created ,which also creates friction and relative movement among material particles.
On the other hand, root diameter of the pressing screw caries larger from one end to the other ,hence. When rotating ,it not only
pushes particles moving forwards but turns them outwards as well ,meanwhile ,particles adjacent the screw will rotation along with screw’ rotating ,causing every particle inside the chamber to possess different speed. Therefore relative movement among particle creates heat which is necessary during manufacturing because of helping protein change property ,damage colloid ,increase
plasticity,decrease oil’s elasticity ,resulting in high oil productivity.
Production capacity table
|Hot pressing||Cold pressing|
|feeding per hour(t)||9-12||5-6|
|Oil output per kg Raw Material||27-33||25-30|
Points before starting
1. Fill the gearbox with 12 kg of oil before starting the machine.
2 After the machine is installed, add lubricating oil according to the regulations, check whether the parts are tightened, and whether the operating handle and the plug board are flexible.
3. Move the large pulley by hand to check whether the machine is loose or stuck, and if there is any abnormality, remove it in time.
4. Adjust the tightness of the belt, start the motor, and check whether the direction of the sheave is consistent with the direction of the mark.
5 After the inspection and preparations are done, loosen the lock nut and screw the screw to the dead point, then back 3-4 turns, and then advance half a turn to ensure the clearance between the screw and the cake outlet.
sunflower seed, peanut, mustard, almond, black sesame, tea seed, cottonseed, etc
Any special requirement of shipping, please talk with us, we will help you to solve the problems. if the amount of goods to be deliverd is relatitively small ,the goods will be packaged in the form of export wooden boxes .if the goods are shipped in the large quantities,the goods will be directly loaded into the containers and cut and reinforced to prevent the goods from colliding.
